The Stress Distribution and Influence of VDMOS Device Based on ANSYS

Abstract:

In this paper, the device of VDMOS packaged in a TO-220C power is acted as research object. ANSYS finite element software simulation is used to build the three dimension model, the software is also used to imitate the stress distribution under the frequency of 220Hz ~ 400Hz. The simulation result shows that the stress of the chip of corresponding to the empty space is bigger than the others as the increasing frequency on the boundary of bonding layer and the chip, which easily leads to micro deformation of the bonding layer and the micro crack of the chip. The value of stress effects by changing the bonding layer material and layer thickness, the simulation results show that the bigger heat conductivity coefficient and the thinner thickness of bonding layer is the smaller stress, Which the design of the bonding layer can be optimized. The results of the study provide the theoretical basis for the structural design of the device, founding the weakness of structure design, having guiding significance for improving the reliability of the device.

You might also be interested in these eBooks

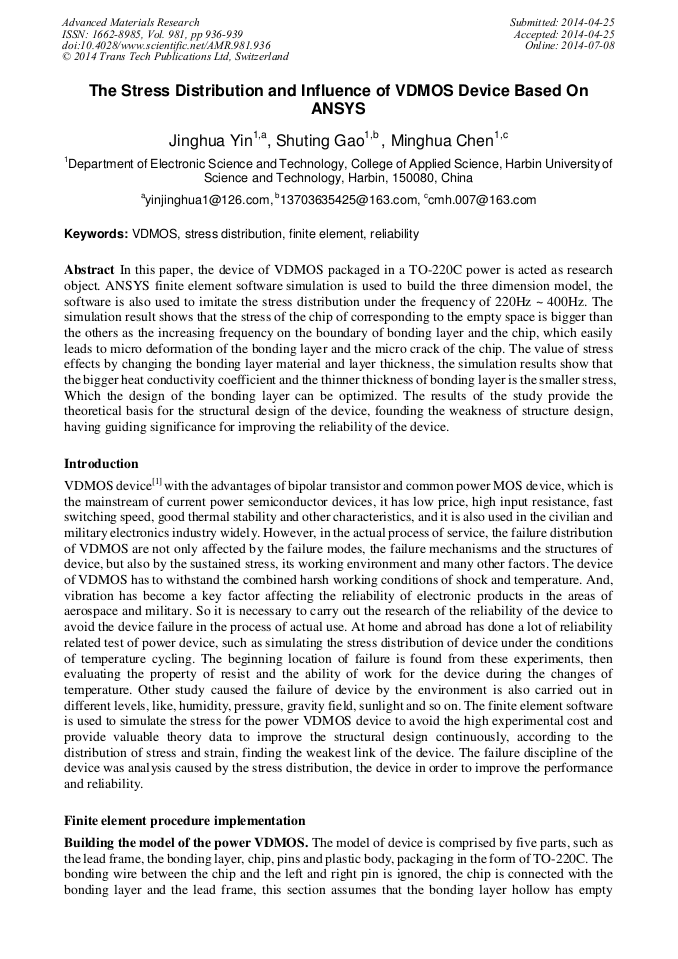

View Preview

Info:

Periodical:

Advanced Materials Research (Volume 981)

Pages:

936-939

DOI:

https://doi.org/10.4028/www.scientific.net/AMR.981.936

Citation:

Cite this paper

Online since:

July 2014

Authors:

Jing Hua Yin*, Shu Ting Gao, Ming Hua Chen

Keywords:

Finite Element, Reliability, Stress Distribution, VDMOS

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

* - Corresponding Author

References

[1] Y. Rey-Tauriac, et al. Reliability oriented process and device simulations of power VDMOS transistors in Bipolar/CMOS/DMOS technology. Physical and Failure Analysis of Integrated Circuits, 2003. Proceedings of the 10th International Symposium on the. IEEE, 2003: 29-35.

DOI: 10.1109/ipfa.2003.1222733

Google Scholar

[2] Z. Yingqian, Z. Hongcai, ANSYS10. 0 finite element software [M]. BeiJing: The People's Posts and Telecommunications Press, 2010: 95-400.

Google Scholar

[3] M. Weihua, X. Bingrong, et al. Research of Atigue Life Simulations Applied to Complex Structure by MBS-FEM [J]. Journal of Mechanical Strength, 2008, 30(1): 137-143.

Google Scholar

[4] Z. Yuan, Z.L. Sun, et, al, Sensitivity Analysis of Gear Structures Vibration with Random Parameters, Machinery and Electronics, 2009: 16-17.

Google Scholar

[5] J. Zhao, H. C. Wu, J. Tang: A Reliability Assessment Method in Strain-based Fatigue Life Analysis [J]. Journal of Pressure Vessel Technology ASME, 1998. 120(1): 99-104.

DOI: 10.1115/1.2841893

Google Scholar
