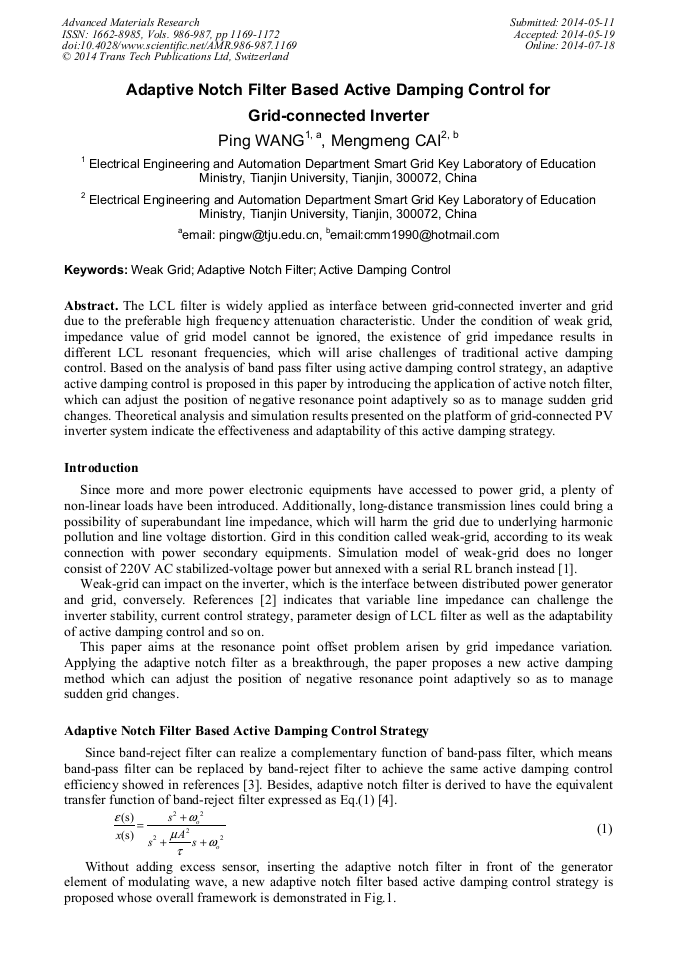

Adaptive Notch Filter Based Active Damping Control for Grid-Connected Inverter

Abstract:

The LCL filter is widely applied as interface between grid-connected inverter and grid due to the preferable high frequency attenuation characteristic. Under the condition of weak grid, impedance value of grid model cannot be ignored, the existence of grid impedance results in different LCL resonant frequencies, which will arise challenges of traditional active damping control. Based on the analysis of band pass filter using active damping control strategy, an adaptive active damping control is proposed in this paper by introducing the application of active notch filter, which can adjust the position of negative resonance point adaptively so as to manage sudden grid changes. Theoretical analysis and simulation results presented on the platform of grid-connected PV inverter system indicate the effectiveness and adaptability of this active damping strategy.

You might also be interested in these eBooks

Energy Research and Power Engineering 2014

View Preview

Info:

Periodical:

Advanced Materials Research (Volumes 986-987)

Pages:

1169-1172

DOI:

https://doi.org/10.4028/www.scientific.net/AMR.986-987.1169

Citation:

Cite this paper

Online since:

July 2014

Authors:

Ping Wang*, Meng Meng Cai

Keywords:

Active Damping Control, Adaptive Notch Filter, Weak Grid

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

* - Corresponding Author

References

[1] LU Li, LIU Fang, ZHANG Xing, et al. Study of controlling a single-phase photovoltaic Grid-connected Inverter operating in a weak grid [J]. Power Electronics, 2012: 46(5): 36-38.

Google Scholar

[2] Liserre, M., Teodorescu, R., Blaabjerg, F. Stability of photovoltaic and wind turbine grid-connected inverters for a large set of grid impedance values [J]. IEEE Transactions on Power Electronics, 2006: 21(1): 263-272.

DOI: 10.1109/tpel.2005.861185

Google Scholar

[3] HUI Junying, CAI Ping, MA Xiao-min. Applied study of active notch filter[J]. Acta Acustica, 1991: 16(1): 19-24.

Google Scholar

[4] CHANG Jianhua, QUAN Shuhai. Algorithm, Principle and Computer Simulation of the Adaptive Filter Wave Trap [J]. Journal of Wuhan automotive polytechnic university, 1998: 20(3): 46-49.

Google Scholar

[5] XU Jinming, XIE Shaojun, XIAO Huafeng. Research on Control Mechanism of Active Damping for LCL Filters [J]. Proceedings of the CSEE, 2012: 32(9): 27-33.

Google Scholar
