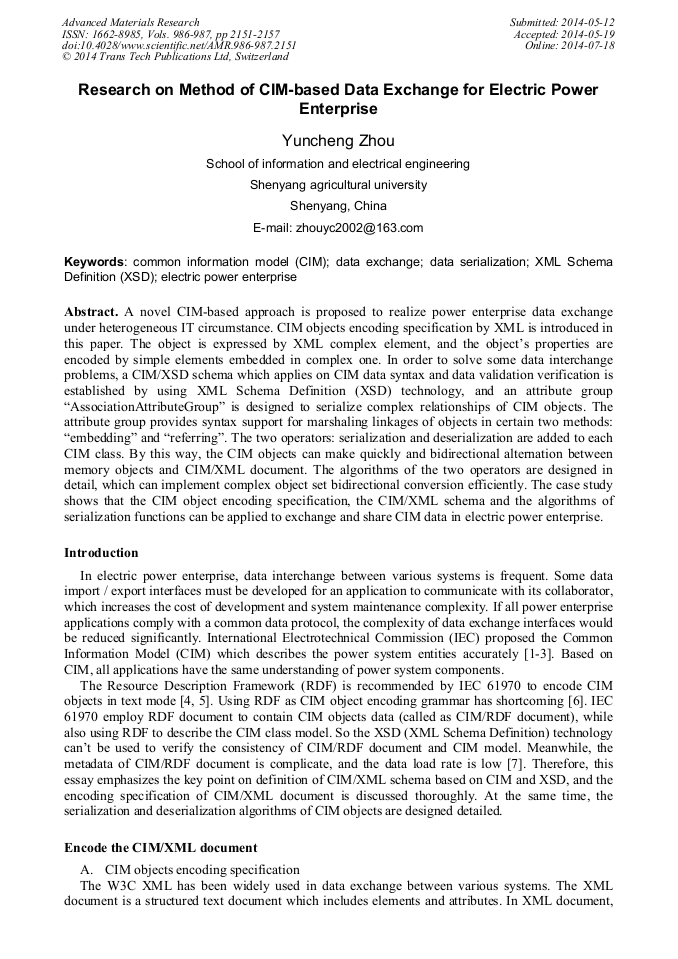

Research on Method of CIM-Based Data Exchange for Electric Power Enterprise

Abstract:

A novel CIM-based approach is proposed to realize power enterprise data exchange under heterogeneous IT circumstance. CIM objects encoding specification by XML is introduced in this paper. The object is expressed by XML complex element, and the object’s properties are encoded by simple elements embedded in complex one. In order to solve some data interchange problems, a CIM/XSD schema which applies on CIM data syntax and data validation verification is established by using XML Schema Definition (XSD) technology, and an attribute group “AssociationAttributeGroup” is designed to serialize complex relationships of CIM objects. The attribute group provides syntax support for marshaling linkages of objects in certain two methods: “embedding” and “referring”. The two operators: serialization and deserialization are added to each CIM class. By this way, the CIM objects can make quickly and bidirectional alternation between memory objects and CIM/XML document. The algorithms of the two operators are designed in detail, which can implement complex object set bidirectional conversion efficiently. The case study shows that the CIM object encoding specification, the CIM/XML schema and the algorithms of serialization functions can be applied to exchange and share CIM data in electric power enterprise.

• Periodical: Advanced Materials Research (Volumes 986-987)
• Pages: 2151-2157
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.986-987.2151
• Online since: July 2014
• Authors: Yun Cheng Zhou*
• Keywords: Common Information Model (CIM), Data Exchange, Data Serialization, Electric Power Enterprise, XML Schema Definition (XSD)

References

[1] DENG Xian-da, HE Guang-yu, CHEN Ying, et al, CIM lead-in based on Java reflection mechanism in AEMS of Shanghai power grid, Automation of Electric Power System, 2007, 31(18) pp.21-25.

[2] CUI Wei, SHI Yong, SUN Bing, The construction and integration of grid model based on IEC61970/61968, Power System Protection and Control, 2011, 39(17) pp.60-63.

[3] ZHU Bo-tong, CHENG Zhi-hai, TANG Zhi-qiang, et al, Interoperate research of the intelligent substation and dispatching center based on CIM model, Power System Protection and Control, 2013, 41(10) pp.93-97.

[4] Draft IEC 61970, Energy management system application program interface (EMS-API), part 501: CIM RDF Schema.

DOI: 10.3403/30102736

[5] WANG De-wen, YAN Chun-yu, BI Jian-gang, YUAN Shuai, Distributed Data Exchange Method in Condition Monitoring System for Power Transmission and Transformation Equipment, Automation of Electric Power System, 2012, 36(22) pp.83-88.

[6] XIE Jun, SHI Dong-yuan, DUAN Xian-zhong, IEC 61970 semantic information model based on ontology technology, Power System Technology, 2008, 32(1).

[7] LU Yi-ming, LIU Dong, HUANG Yu-hui et al, Feeder Modeling and Application Based on CIM, Proceedings of the CSEE, 2012, 32(28) pp.157-163.

[8] Barbara Carminati, Elena Ferrari, Management of access control policies for XML document sources, Int J Inf Secur, 2003 (1) pp.236-260.

DOI: 10.1007/s10207-003-0020-x

[9] IEC 61970: Energy management system application program interface (EMS-API)-part 301: common information model (CIM).

DOI: 10.3403/03020094u

[10] CAO Yang, YAO Jian-guo, YANG Shen-chun, et al. Latest Advancements of Smart Grid Core Standard IEC 61970, Automation of Electric Power System, 2011, 35(17) pp.1-4.

[11] NING Jing, LIU Jie, YE Dan, Novel approach for extracting XML schema definition based on content model graph, Computer Science, 2010, 37(6) pp.179-185.

[12] LUO Jian, ZHU Bo-tong, CAI Ming, ZHAO Guo-fu, Interoperability of CIM and SCL model based on CIM XML, Power System Protection and Control, 2011, 39(17) pp.134-138.
