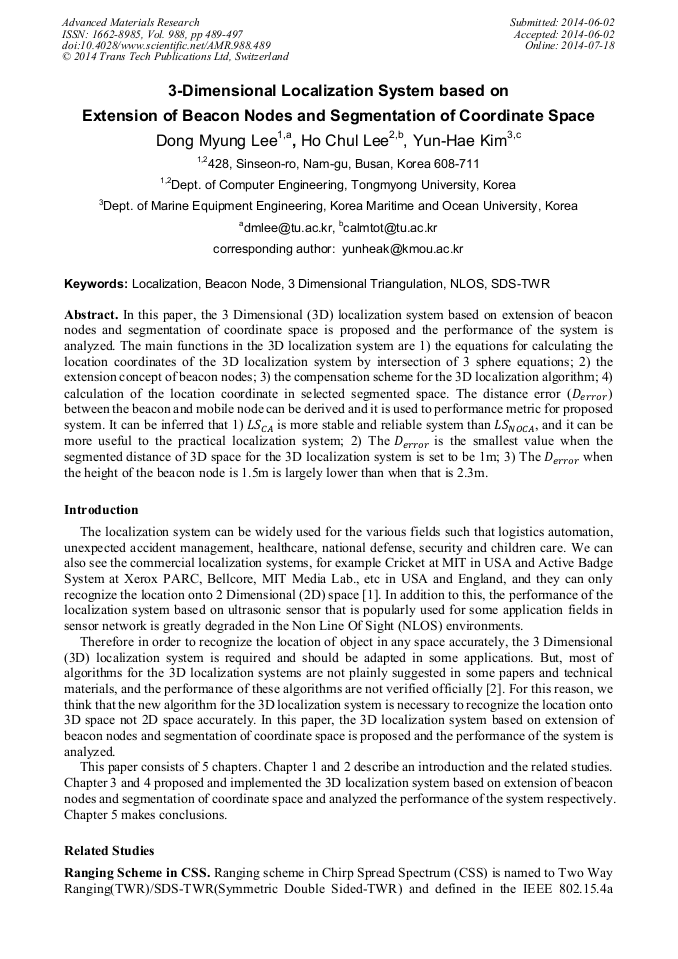

3-Dimensional Localization System Based on Extension of Beacon Nodes and Segmentation of Coordinate Space

Abstract:

In this paper, the 3 Dimensional (3D) localization system based on extension of beacon nodes and segmentation of coordinate space is proposed and the performance of the system is analyzed. The main functions in the 3D localization system are 1) the equations for calculating the location coordinates of the 3D localization system by intersection of 3 sphere equations; 2) the extension concept of beacon nodes; 3) the compensation scheme for the 3D localization algorithm; 4) calculation of the location coordinate in selected segmented space. The distance error (Derror) between the beacon and mobile node can be derived and it is used to performance metric for proposed system. It can be inferred that 1) LSCA is more stable and reliable system than LSNOCA, and it can be more useful to the practical localization system; 2) The Derror is the smallest value when the segmented distance of 3D space for the 3D localization system is set to be 1m; 3) The Derror when the height of the beacon node is 1.5m is largely lower than when that is 2.3m.

• Periodical: Advanced Materials Research (Volume 988)
• Pages: 489-497
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.988.489
• Online since: July 2014
• Authors: Dong Myung Lee, Ho Chul Lee, Yun Hae Kim
• Keywords: 3 Dimensional Triangulation, Beacon Node, Localization, NLOS, SDS-TWR

References

[1] Nissanka Bodhi Priyantha, The Cricket Indoor Location System, Ph. D Thesis, Massachusetts Institute of Technology, p.53~60, June (2005).

[2] J. M. Martin Abreu, R. Ceres, L. Calderon, M. A. Jimenez and P. Gonzalez-de-Santos, Measuring the 3D-position of a Walking Vehicle using Ultrasonic and Electromagnetic Waves Sensors and Actuators, Vol. 75, Issue 2, p.131~138, May (1999).

DOI: 10.1016/s0924-4247(98)00378-1

[3] Rainer Hach, Coexistence Assurance Information for the CSS part of 15. 4a, Nanotron Technologies, Berlin Germany, p.1~6, 26 April (2006).

[4] Rick Roberts, TDOA Localization Techniques, Harris Corporation, October 2004 (http: /www. ieee802. org).

[5] Hanback Electronics, HBE-Ubi-nanoLOC Ubiquitous Sensor Network, (2009).

[6] Ho Cheol Lee and Dong Myung Lee, A Study on Localization System using 3D Triangulation Algorithm based on Dynamic Allocation of Beacon Node, The Journal of Korea Information and Communication Society, KICS, Vol. 36 No. 4, p.378~385, April (2011).

DOI: 10.7840/kics.2011.36b.4.378

[7] Ho Cheol Lee, Seong Ki Kwon, Soon Yi Lee, Suk Won Kang and Dong Myung Lee, A Study on Error Compensation Algorithm of Distance Measurement using Frequency Distribution in WPAN, Proceedings of 2010 Summer Conference on Korea Information and Communications Society, KICS, Vol. 40, Ramada Hotel, Jeju, p.631, 24 June (2010).

[8] Ho Cheol Lee, 3-Dimensional Localization System using Statistical Characteristics of SDS-TWR, MS Thesis, Dept. of Computer Media Engineering, The Graduate School, Tongmyong University, June (2011).

[9] Dong Myung Lee and Ho Cheol Lee, 3D Triangulation Scheme based on Simultaneous Equation in Wireless Personal Area Network, Proceedings of Asian Conference on Engineering Education 2011(ACEE 2011), The University of Tokushima, pp. TS6-2: 1~TS6-2: 4, 8~9(8) October (2011).
