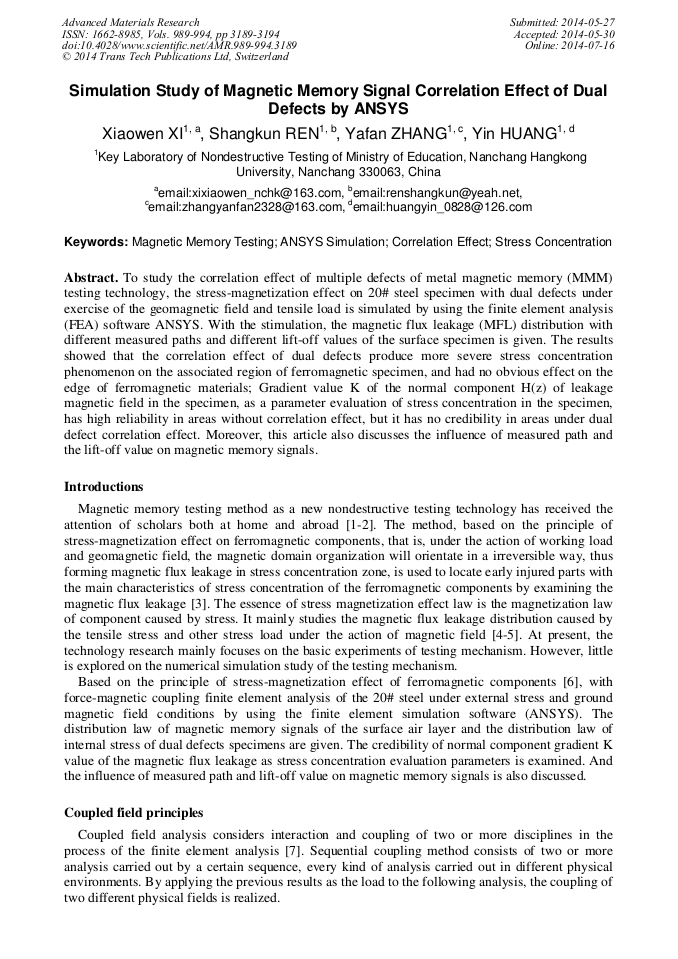

Simulation Study of Magnetic Memory Signal Correlation Effect of Dual Defects by ANSYS

Abstract:

To study the correlation effect of multiple defects of metal magnetic memory (MMM) testing technology, the stress-magnetization effect on 20# steel specimen with dual defects under exercise of the geomagnetic field and tensile load is simulated by using the finite element analysis (FEA) software ANSYS. With the stimulation, the magnetic flux leakage (MFL) distribution with different measured paths and different lift-off values of the surface specimen is given. The results showed that the correlation effect of dual defects produce more severe stress concentration phenomenon on the associated region of ferromagnetic specimen, and had no obvious effect on the edge of ferromagnetic materials; Gradient value K of the normal component H(z) of leakage magnetic field in the specimen, as a parameter evaluation of stress concentration in the specimen, has high reliability in areas without correlation effect, but it has no credibility in areas under dual defect correlation effect. Moreover, this article also discusses the influence of measured path and the lift-off value on magnetic memory signals.

• Periodical: Advanced Materials Research (Volumes 989-994)
• Pages: 3189-3194
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.989-994.3189
• Online since: July 2014
• Authors: Xiao Wen Xi*, Shang Kun Ren, Ya Fan Zhang, Yin Huang
• Keywords: ANSYS Simulation, Correlation Effect, Magnetic Memory Testing, Stress Concentration

References

[1] Doubov A. Diagnostics of metal items and equipment by means of metal magnetic memory [J]. NDT'99 and UK Corrosion'99, 1999: 287-293.

[2] Dubov A A. Development of a metal magnetic memory method [J]. Chemical and Petroleum Engineering, 2012, 47(11-12): 837-839.

DOI: 10.1007/s10556-012-9559-6

[3] Jilin Ren, Junming Lin. Metal magnetic memory testing technology [M]. Beijing: China Electric Power Press, (2000).

[4] Weimin Zhang, Hongguang Liu, Haitao Sun. Magnetic memory effect of low and medium carbon steel under static tension conditions [J]. Transactions of Beijing Institute of Technology, 2004, 24(7): 571-574.

[5] Yao K, Wang Z D, Deng B, et al. Experimental research on metal magnetic memory method[J]. Experimental mechanics, 2012, 52(3): 305-314.

DOI: 10.1007/s11340-011-9490-3

[6] Ying Zhang, Kai Song, and so on. Application of software ANSYS in metal magnetic memory testing[J]. Nondestructive Testing, 2004, 26(5): 217-220.

[7] Shuguang Gong, Guilan Xie. ANSYS commands and parametric programming [M]. Beijing: China Machine Press, (2004).

[8] Yao K, Deng B, Wang Z D. Numerical studies to signal characteristics with the metal magnetic memory-effect in plastically deformed samples[J]. NDT & E International, 2012, 47: 7-17.

DOI: 10.1016/j.ndteint.2011.12.004

[9] Jilin Ren, Minghang Shu, and so on. Simulation of stress-magnetization effect on 18CrNi4A steel by ANSYS[J]. Journal of Material Engineering, 2009, 11: 009.
