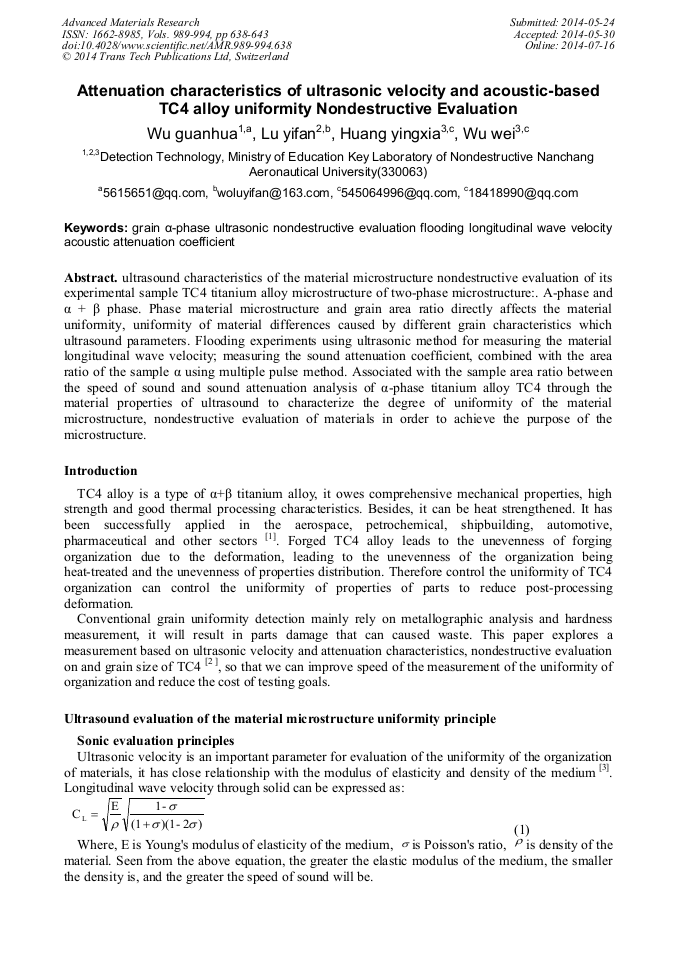

Attenuation Characteristics of Ultrasonic Velocity and Acoustic-Based TC4 Alloy Uniformity Nondestructive Evaluation

Abstract:

ultrasound characteristics of the material microstructure nondestructive evaluation of its experimental sample TC4 titanium alloy microstructure of two-phase microstructure:. Α-phase and α + β phase. Phase material microstructure and grain area ratio directly affects the material uniformity, uniformity of material differences caused by different grain characteristics which ultrasound parameters. Flooding experiments using ultrasonic method for measuring the material longitudinal wave velocity; measuring the sound attenuation coefficient, combined with the area ratio of the sample α using multiple pulse method. Associated with the sample area ratio between the speed of sound and sound attenuation analysis of α-phase titanium alloy TC4 through the material properties of ultrasound to characterize the degree of uniformity of the material microstructure, nondestructive evaluation of materials in order to achieve the purpose of the microstructure.

• Periodical: Advanced Materials Research (Volumes 989-994)
• Pages: 638-643
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.989-994.638
• Online since: July 2014
• Authors: Guan Hua Wu*, Yi Fan Lu, Ying Xia Huang, Wei Wu
• Keywords: Acoustic Attenuation Coefficient, Evaluation Flooding, Grain α-Phase, Longitudinal Wave, Ultrasonic Nondestructive, Velocity

References

[1] Yu Hong. Titanium and Its Alloys. Automotive Technology and Materials. 2004, (12): 6-9.

[2] Ci Naichao, Fu Mingxi, Non-ferrous Materials and Preparation [M]. Beijing：Chemical Press, (2006).

[3] Rhine Adams C, Pete Wells M, Titanium and Titanium Alloys [M]. Beijing：Chemical Press, 2005: 15.

[4] Xu Zhidong, Fan Ziliang. Elastic modulus of metallic materials with temperature variation phenomenological interpretation[J]. SouthWest JiaoTong University. 1993(2): 87-92.

[5] GB5168-85《Methods of Inspecting High and Low Times Organization of two-phase Titanium》.

[6] Yang Siqian, Liu Yanhua, Li Jinglong Programming Calculation of Sound Field of the Beam Axis of Flooding Focused Probe [TB]. 1999, 28(2)13-17.

[7] Yin Chang; Liu Xiaozhou; Gong Xiufen; Liu Jiehui; Measurement of the Speed of Sound and Acoustic Attenuation Coefficient of Steel Material [A]; Acoustic technology；2007. 05.

[8] Du Gonghuan, Zhu Zemin, Gong Xiufen. Basis of Acoustics〔M〕. Nanjing: Nanjing University Press, (2001).

[9] Abramoff,M. D, Magelhaes,P. J, Ram S.J. ImageprocessingwithImageJ, Biophotonicsinter nation, volume11, isse7, pp.36-42, (2004).

[10] Hu Jiankai, Zhang Qianlin. Principles and Methods of Ultrasonic Testing〔M〕. Hefei: University of Science and Technology of China Press, (1993).

[10] Xu Yanlin, Wang Zengyong, Huang Zhenxiang．Ultrasonic Evaluation Techniques of The Average Size of the Grain of Austenitic Stainless Steel．NDT, 200l, 23(6)：246-248.

[11] Zhang Lina, Summary of the Analysis Methods of the Time-frequency of Digital Signal Processing. Information technology [TP391．42], 1009-2552(2013)06－0026－03.

[12] Liu Zhenqing, Chen Guang. Spectral Analysis of Ultrasonic Nondestructive Testing Technique [J]. 2001, 23(2): 85-88.

[13] BOUDAAB, BENCHAALAA, LEBAII. I S．Grainsize influence onultrasonic velocities andattenuation[J]．NDT EInternational, 2003. 36(1)：1-5.
