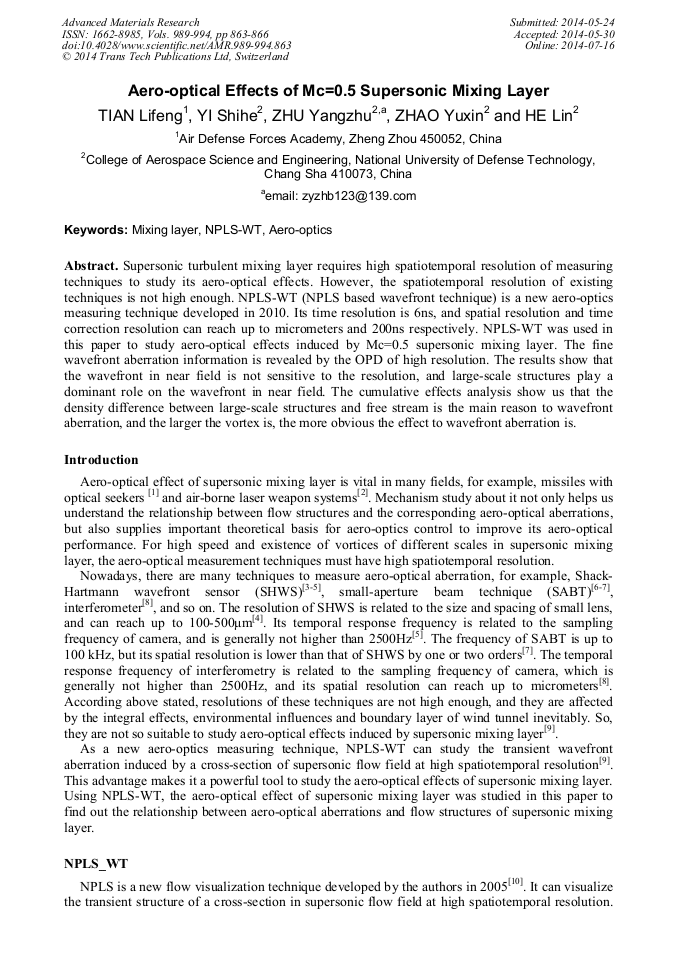

Aero-Optical Effects of Mc=0.5 Supersonic Mixing Layer

Abstract:

Supersonic turbulent mixing layer requires high spatiotemporal resolution of measuring techniques to study its aero-optical effects. However, the spatiotemporal resolution of existing techniques is not high enough. NPLS-WT (NPLS based wavefront technique) is a new aero-optics measuring technique developed in 2010. Its time resolution is 6ns, and spatial resolution and time correction resolution can reach up to micrometers and 200ns respectively. NPLS-WT was used in this paper to study aero-optical effects induced by Mc=0.5 supersonic mixing layer. The fine wavefront aberration information is revealed by the OPD of high resolution. The results show that the wavefront in near field is not sensitive to the resolution, and large-scale structures play a dominant role on the wavefront in near field. The cumulative effects analysis show us that the density difference between large-scale structures and free stream is the main reason to wavefront aberration, and the larger the vortex is, the more obvious the effect to wavefront aberration is.

• Periodical: Advanced Materials Research (Volumes 989-994)
• Pages: 863-866
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.989-994.863
• Online since: July 2014
• Authors: Li Feng Tian*, Shi He Yi, Yang Zhu Zhu, Yu Xin Zhao, Lin He
• Keywords: Aero-Optics, Mixing Layer, NPLS-Wt

References

[1] Chew L. Coherent structures effects on shear layer optics [C]. AIAA Paper, 1990, 90-0185.

[2] Yi S H, Hou Z X, Zhao Y X. Supersonic free-vortex aerowindow and its optical quality [M]. Changsha: Press of NUDT, (2005).

[3] Neal D R, Copland J, Neal D. Shack-Hartmann wavefront sensor precision and accuracy [J]. Proc. of SPIE, 4779: 148-160.

DOI: 10.1117/12.450850

[4] Trolinger J, L'Esperance D. Optical diagnostics for quantifying flow control effects on aero optical wavefront degradation [C]. AIAA Paper, 2005, 2005-4658.

DOI: 10.2514/6.2005-4658

[5] Tyson R K. Introduction. In: Tyson R K, editor. Adaptive-optics engineering handbook, Optical engineering series, vol. 67. New York: Marcel Dekker, (2000).

[6] Jumper E J, Hugo R J. Optical phase distortion due to turbulent-fluid density fields: quantification using the small-aperture beam technique [C]. AIAA Paper, 1992, 92-3020.

DOI: 10.2514/6.1992-3020

[7] Jumper E J, Fitzgerald E J. Recent advances in aero-optics [J]. Progress in Aerospace Phenomena, 1982, (37): 299-339.

DOI: 10.1016/s0376-0421(01)00008-2

[8] Welsh B M, Ellerbroek B L, Roggemann M C, et al. Fundamental performance comparison of a Hartmann and a shearing interferometer wave-front sensor [J]. Applied Optics, 1995, 34(21): 4186-4195.

DOI: 10.1364/ao.34.004186

[9] Yi S H, Tian L F, Zhao Y X, et al. Aero-optical aberration measuring method based on NPLS and its application [J]. Chinese Sci Bull, 2010, 55(31): 3545-3549.

DOI: 10.1007/s11434-010-4104-5

[10] Zhao Y X, Yi S H, Tian L F, et al. Supersonic flow imaging via nanoparticles [J]. Sci China Ser E, 2009, 52(12): 3640-3648.

DOI: 10.1007/s11431-009-0281-3

[11] Tian L F, Yi S H, Zhao Y X, et al. Study of density field measurement based on NPLS technique in supersonic flow [J]. Sci China Ser G, 2009, 52(9): 1357-1363.

DOI: 10.1007/s11433-009-0180-4
