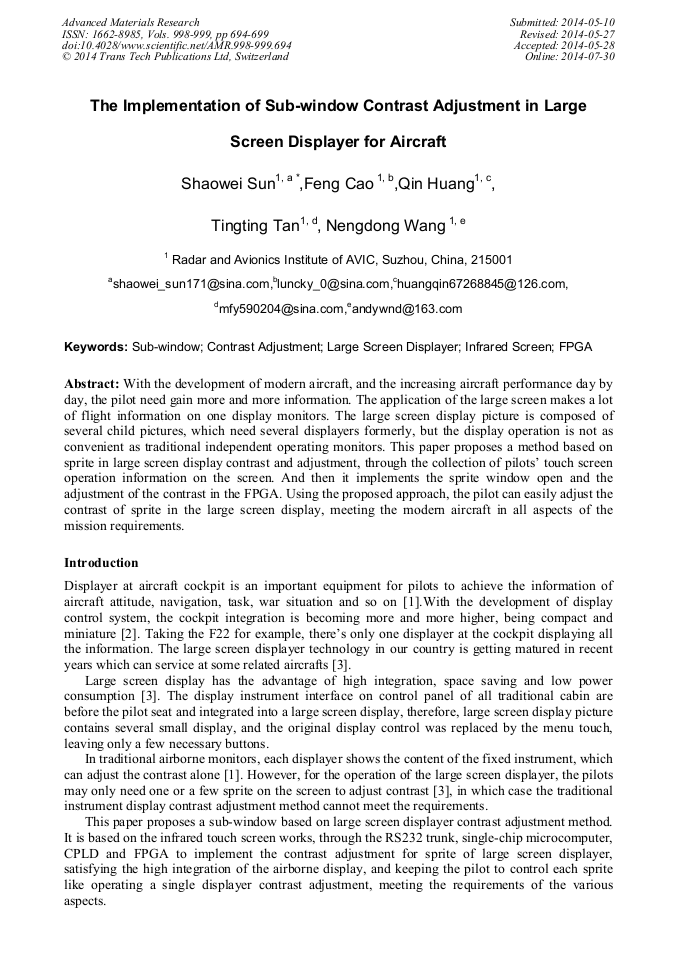

The Implementation of Sub-Window Contrast Adjustment in Large Screen Displayer for Aircraft

Abstract:

With the development of modern aircraft, and the increasing aircraft performance day by day, the pilot need gain more and more information. The application of the large screen makes a lot of flight information on one display monitors. The large screen display picture is composed of several child pictures, which need several displayers formerly, but the display operation is not as convenient as traditional independent operating monitors. This paper proposes a method based on sprite in large screen display contrast and adjustment, through the collection of pilots’ touch screen operation information on the screen. And then it implements the sprite window open and the adjustment of the contrast in the FPGA. Using the proposed approach, the pilot can easily adjust the contrast of sprite in the large screen display, meeting the modern aircraft in all aspects of the mission requirements.

• Periodical: Advanced Materials Research (Volumes 998-999)
• Pages: 694-699
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.998-999.694
• Online since: July 2014
• Authors: Shao Wei Sun*, Feng Cao, Qin Huang, Ting Ting Tan, Neng Dong Wang
• Keywords: Contrast Adjustment, FPGA, Infrared Screen, Large Screen Displayer, Sub-Window

References

[1] H.G. Xiong, and Z.H. Wang: Advanced Avionics Technology(National Defense Industry Press, China, 2009)(in Chinese).

[2] H.C. Zhang: Research on Key Technology of Combined Graphics Display System in Aircraft Cockpit (Nanjing University of Aeronautics and Astronautics, China, 2003) (in Chinese).

[3] L. Wei: Display Technology of Wide-angle Holographic LED Large Screen (Requisition of National Defense Research Task, China, 2002) (in Chinese).

[4] Y.J. Zhang: Image Processing (Tsinghua University Press , China, 2006) (in Chinese).

[5] Rafael C. Gonzalez, Richard E. Woods, and Steven L. Eddins: Digital Image Processing (Publishing House of Electronics Industry, China, 2007).

[6] J.L. Starck: Image Processing, Vol. 12 (2003) No. 6, p.706.

[7] T.L. Ji, M.K. Sundareshan, and H. Roehrig: IEEE Transaction on Medical Imaging, Vol. 13 (1994), p.573.

[8] S.Y. Kim, D. Han, S.J. Choi: IEEE Transaction on Consumer Electronics, Vol. 45 (1999) No. 3, p.828.

[9] H.H. Cho, C.H. Choi, and B.H. Kwon: The Proceedings of the Second IEEE Asia Pacific Conference on Asics Ap-Asic (Korea, August 28-30, 2000) Vol. 1, p.131.

DOI: 10.1109/apasic.2000.896892

[10] Meyer-Baese U. Digital Signal Processing with Field Programmable Gate Arrays (Tsinghua University Press, China, 2008) (in Chinese).

DOI: 10.1007/978-3-662-04613-5

[11] P. Tsai, and Y.C. Hu: Signal Processing. Vol. 84 (2004) No. 1, p.95.
