SAND as Granular Damper Material to Increase Stability Limits during Turning of Steel Pipe

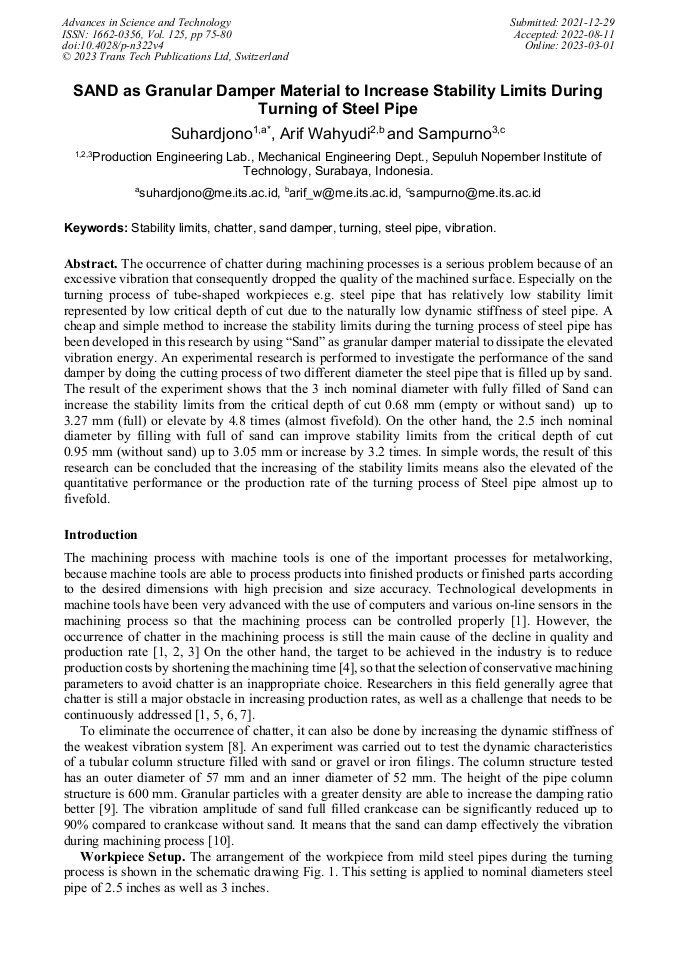

Abstract:

The occurrence of chatter during machining processes is a serious problem because of an excessive vibration that consequently dropped the quality of the machined surface. Especially on the turning process of tube shaped workpieces e.g. steel pipe that has relatively low stability limit represented by low critical depth of cut due to the naturally low dynamic stiffness of steel pipe. A cheap and simple method to increase the stability limits during the turning process of steel pipe has been developed in this research by using “Sand” as granular damper material to dissipate the elevated vibration energy. An experimental research is performed to investigate the performance of the sand damper by doing the cutting process of two different diameter the steel pipe that is filled up by sand. The result of the experiment shows that the 3 inch nominal diameter with fully filled of Sand can increase the stability limits from the critical depth of cut 0.68 mm (empty or without sand) up to 3.27 mm (full) or elevate by 4.8 times (almost fivefold). On the other hand, the 2.5 inch nominal diameter by filling with full of sand can improve stability limits from the critical depth of cut 0.95 mm (without sand) up to 3.05 mm or increase by 3.2 times. In simple words, the result of this research can be concluded that the increasing of the stability limits means also the elevated of the quantitative performance or the production rate of the turning process of Steel pipe almost up to fivefold. Keywords: Stability limits, chatter, sand damper, turning, steel pipe, vibration.

• Periodical: Advances in Science and Technology (Volume 125)
• Pages: 75-80
• DOI: https://doi.org/10.4028/p-n322v4
• Online since: March 2023
• Authors: Suhardjono Suhardjono*, Arif Wahjudi, Sampurno Sampurno
• Keywords: Chatter, Sand Damper, Stability Limits, Steel Pipe, Turning, Vibration

References

[1] Quintana, G. dan Ciurana, J.: Chatter in Machining Process: A Review., International Journal of Machine Tools & Manufacturing, (2011).

[2] Altintas, Y. dan Weck, M.: Chatter Stability of Metal Cutting and Grinding, Annals of the CIRP (2004).

DOI: 10.1016/s0007-8506(07)60032-8

[3] Peng, Z.K., Jackson, M.R., Guo, L.Z., Parkin, R.M. dan Meng, G.: Effects of Bearing Clearance on the Chatter Stability of Milling Process. Nonlinear Analysis: Real World Applications 11, 3577-3589 (2010).

DOI: 10.1016/j.nonrwa.2010.01.005

[4] Brecher, C., Esser, M. dan Witt, S.: Interaction of Manufacturing Process and Machine Tool. CIRP Annals - Manufacturing Technology, Vol. 58, 588-607 (2009).

DOI: 10.1016/j.cirp.2009.09.005

[5] Koenigsberger, F. dan Tlusty, J.: Machine Tool Structure. Volume 1, 1st edition, Pergamon Press Ltd. (1970).

[6] Amin, A.K.M.N., Patwari, A.U., Sharulhazrin, M.S. dan Hafizuddin, I.: Investigation of Effect of Chatter Amplitude on Surface Roughness During End Freis of Medium Carbon Steel. Proceedings of the 2010 Conference on Industrial Engineering and Operations Management, pp.127-131. Dhaka, Bangladesh (2010).

[7] Siddhpura, M. dan Paurobally, R.: A Review of Chatter Vibration Research in Turning. International Journal of Machine Tools & Manufacture, 61, 27-47 (2012).

DOI: 10.1016/j.ijmachtools.2012.05.007

[8] O. Soegihardjo, S. Suhardjono, B. Pramujati, A.S. Pramono.: Modal and Harmonic Response Analysis: Linear Approach Simulation to Predict the Influence of Granular Stiffeners on Dynamics Stiffness of Box-shaped Workpiece for Increasing the Stability Limit Against Chatter. Applied Mechanics and Materials, Vol. 493, pp.501-506, (2014).

DOI: 10.4028/www.scientific.net/amm.493.501

[9] Suhardjono, Irjhon, R. and Winarto: Karakteristik Dinamik Kolom Baja yang Diisi Pasir, Kerikil atau Serbuk Gergaji Besi. Jurnal Teknik Mesin Universitas Kristen Petra 10(2), 102-108 (2008).

[10] Soegihardjo, O., Suhardjono, S., Pramujati, B. and Pramono, A. S.: Parametric Beam Modeling to Predict the First Natural Bending Frequency of Thin Wall Box-Shaped Structures Verified Using Experimental Modal Analysis. International Review of Mechanical Engineering (IREME) 11(1), 77-86 (2017).

DOI: 10.15866/ireme.v11i1.10105
