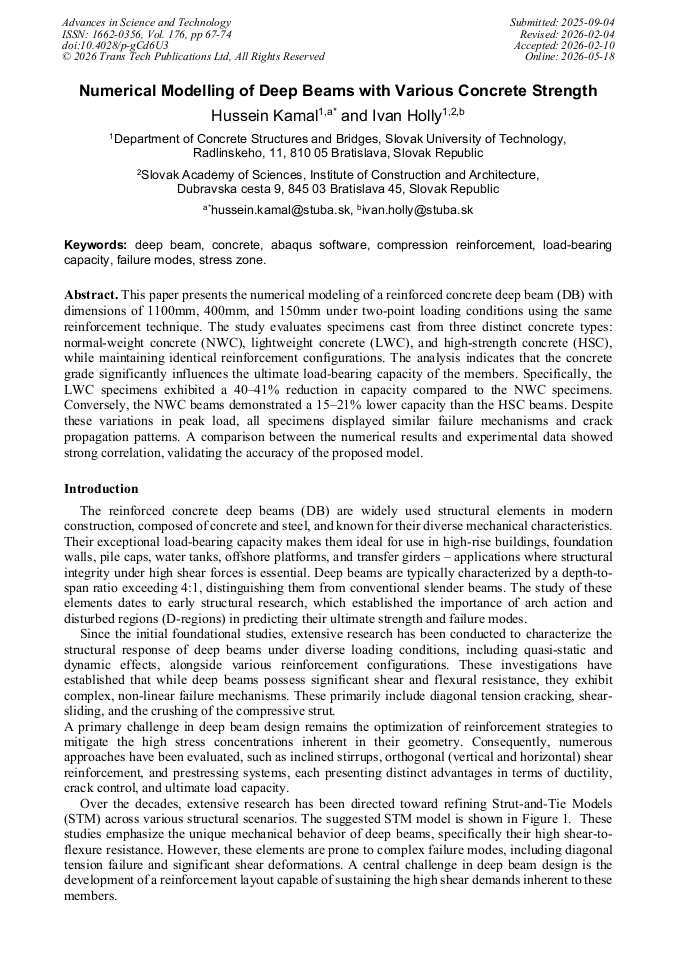

Numerical Modelling of Deep Beams with Various Concrete Strength

Abstract:

This paper presents the numerical modeling of a reinforced concrete deep beam (DB) with dimensions of 1100mm, 400mm, and 150mm under two-point loading conditions using the same reinforcement technique. The study evaluates specimens cast from three distinct concrete types: normal-weight concrete (NWC), lightweight concrete (LWC), and high-strength concrete (HSC), while maintaining identical reinforcement configurations. The analysis indicates that the concrete grade significantly influences the ultimate load-bearing capacity of the members. Specifically, the LWC specimens exhibited a 40–41% reduction in capacity compared to the NWC specimens. Conversely, the NWC beams demonstrated a 15–21% lower capacity than the HSC beams. Despite these variations in peak load, all specimens displayed similar failure mechanisms and crack propagation patterns. A comparison between the numerical results and experimental data showed strong correlation, validating the accuracy of the proposed model.

• Periodical: Advances in Science and Technology (Volume 176)
• Pages: 67-74
• DOI: https://doi.org/10.4028/p-gCd6U3
• Online since: May 2026
• Authors: Hussein Kamal*, Ivan Hollý
• Keywords: Abaqus Software, Compression Reinforcement, Concrete, Deep Beam, Failure Modes, Load-Bearing Capacity, Stress Zone

References

[1] SHAABAN, Ibrahim G., Amr H. ZAHER, Mohamed SAID, Wael MONTASER, Mohamed RAMADAN a Ghada N. ABD ELHAMEED. Effect of partial replacement of coarse aggregate by polystyrene balls on the shear behaviour of deep beams with web openings. Case Studies in Construction Materials [online]. 2020, 12 [cit. 2024-12-13]. DOI: 10.1016/j.cscm.2019.e00328. ISSN 22145095. Dostupné na: https://linkinghub.elsevier.com/ retrieve/pii/S2214509519304309.

DOI: 10.1016/j.cscm.2019.e00328

[2] K.-H. Yang and A. F. Ashour, "Aggregate interlock in lightweight concrete continuous deep beams", *Engineering Structures*, vol. 33, p.136–145, 2011.

DOI: 10.1016/j.engstruct.2010.09.026

[3] Oh, J. K., & Shin, S. W. (2001). Ultimate shear and symmetric diagonal cracking strengths of high-strength concrete deep beams. ACI Structural Journal, 98(2), 157-166.

[4] H. K. Kadhim and M. D. Abdullah, "Concrete Deep Beam with Strut Reinforcement," Muthanna Journal of Engineering and Technology, vol. 4, no. 8, p.12–23, Jan. 2023. https://www.researchgate.net/publication/384251181.

[5] Building Code Requirements for Structural Concrete and Commentary, ACI Standard 318-19, 2019, ch. 23. https://www.google.com/search?q=https://www.concrete.org/store/productdetail.aspx%3FItemID%3D31819.

[6] J. K. Wight, Reinforced Concrete Mechanics and Design, 7th ed. Hoboken, NJ, USA: Pearson, 2016. https://www.cozing.com.bo/uploads/document/file/14/1565820867696.pdf.

[7] J. K. Wight, Reinforced Concrete Mechanics and Design, 7th ed. Hoboken, NJ, USA: Pearson, 2016. [Online]. Available: https://api.pageplace.de/preview/DT0400.9781292106014_A27461774/preview-9781292106014_A27461774.pdf.

[8] K. Hafezolghorani, F. Hejazi, R. Vaghefi, and M. S. Jaafar, "Simplified damage plasticity model for concrete," Structural Engineering International, vol. 27, no. 1, p.68–78, 2017. [Online]. Available:.

DOI: 10.2749/101686616X1081

[9] K. Ju and H. Oh, "Experimental and numerical study on the shear behavior of lightweight concrete deep beams," Materials (Basel), vol. 9, no. 6, p.433, 2016.
