Transforming CMM Inspection Reports into NVH-Relevant Feature Sets

Abstract:

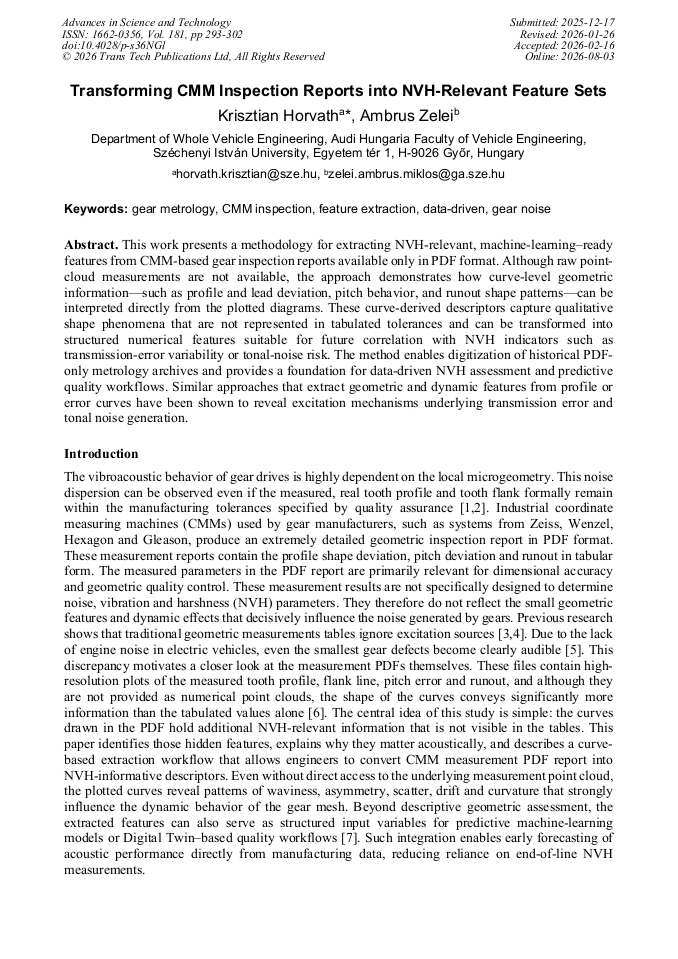

This work presents a methodology for extracting NVH-relevant, machine-learning–ready features from CMM-based gear inspection reports available only in PDF format. Although raw point-cloud measurements are not available, the approach demonstrates how curve-level geometric information—such as profile and lead deviation, pitch behavior, and runout shape patterns—can be interpreted directly from the plotted diagrams. These curve-derived descriptors capture qualitative shape phenomena that are not represented in tabulated tolerances and can be transformed into structured numerical features suitable for future correlation with NVH indicators such as transmission-error variability or tonal-noise risk. The method enables digitization of historical PDF-only metrology archives and provides a foundation for data-driven NVH assessment and predictive quality workflows. Similar approaches that extract geometric and dynamic features from profile or error curves have been shown to reveal excitation mechanisms underlying transmission error and tonal noise generation.

• Periodical: Advances in Science and Technology (Volume 181)
• Pages: 293-302
• DOI: https://doi.org/10.4028/p-s36NGl
• Online since: August 2026
• Authors: Krisztian Horvath*, Ambrus Zelei
• Keywords: CMM Inspection, Data-Driven, Feature Extraction, Gear Metrology, Gear Noise
