Synthesis and Electromagnetic Properties of Ca2MTeO6 (M = Mn, Co, Mg)

Yue Jin Shan; Yoko Kanai; Keitaro Tezuka; Hideo Imoto

doi:10.4028/www.scientific.net/AST.45.2572

Paper Titles

Large Magnetoresistance at Oxide La_0.7Ca_0.3MnO₃ and YBa₂Cu₃O₇ Interfaces
p.2545

Structural, Magnetic and Transport Properties of Layered Cobaltites LnBaCo₂O_5+x
p.2554

Complex Permeability of Ferrites Correlated with their Microstructure
p.2560

Magnetoresistance Effect of La_0.8Bi_0.2MnO₃/MgO/Co Heterojunction Device
p.2566

Synthesis and Electromagnetic Properties of Ca₂MTeO₆ (M = Mn, Co, Mg)
p.2572

Development of a Super Broadband RF Splitter Using Bead Type Ferrite Core Transformers
p.2576

Fabrication and Characteristic Investigation of Multifunctional Oxide p-n Heterojunctions
p.2582

Magnetophotonic Crystals: Now and Future
p.2588

Hybrid Ordered Hole-Random Hole Optical Fibers
p.2598

HomeAdvances in Science and TechnologyAdvances in Science and Technology Vol. 45Synthesis and Electromagnetic Properties of...

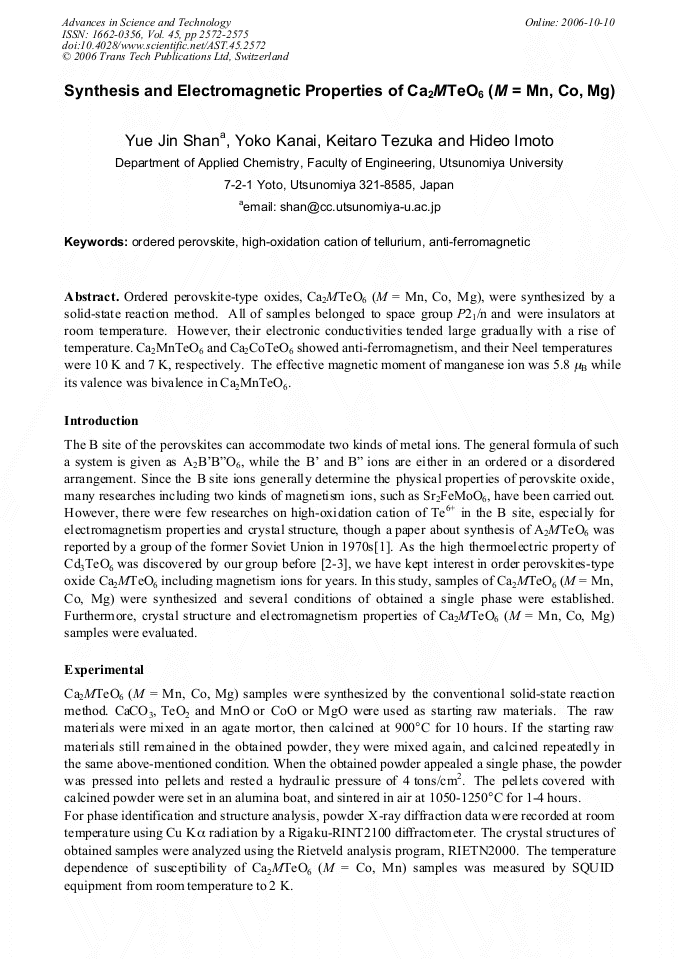

Synthesis and Electromagnetic Properties of Ca₂MTeO₆ (M = Mn, Co, Mg)

Abstract:

Ordered perovskite-type oxides, Ca2MTeO6 (M = Mn, Co, Mg), were synthesized by a solid-state reaction method. All of samples belonged to space group P21/n and were insulators at room temperature. However, their electronic conductivities tended large gradually with a rise of temperature. Ca2MnTeO6 and Ca2CoTeO6 showed anti-ferromagnetism, and their Neel temperatures were 10 K and 7 K, respectively. The effective magnetic moment of manganese ion was 5.8 μB while its valence was bivalence in Ca2MnTeO6.
