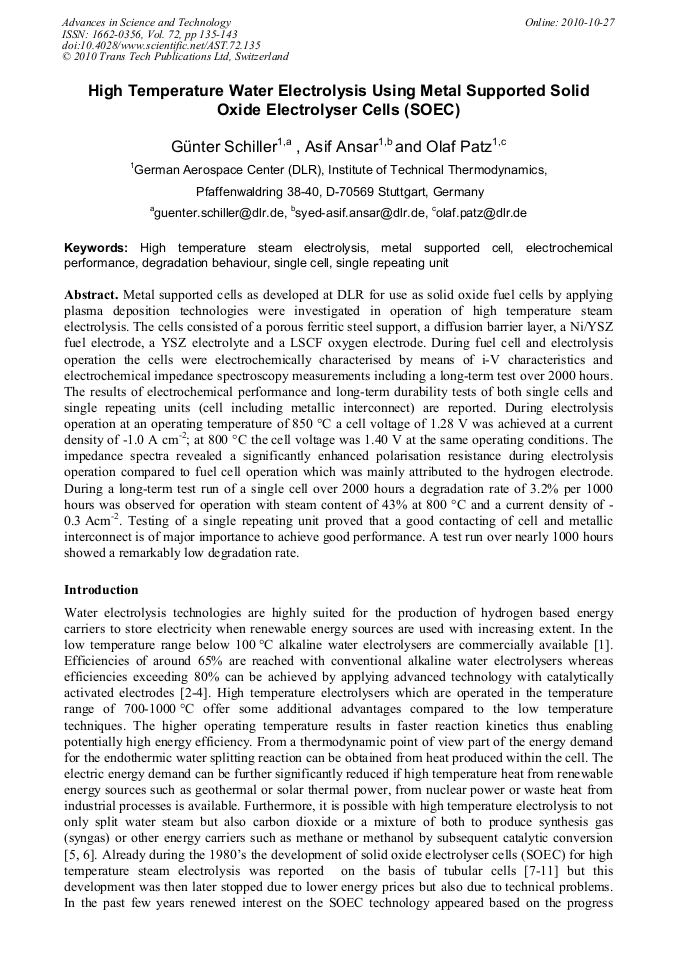

High Temperature Water Electrolysis Using Metal Supported Solid Oxide Electrolyser Cells (SOEC)

Abstract:

Metal supported cells as developed at DLR for use as solid oxide fuel cells by applying plasma deposition technologies were investigated in operation of high temperature steam electrolysis. The cells consisted of a porous ferritic steel support, a diffusion barrier layer, a Ni/YSZ fuel electrode, a YSZ electrolyte and a LSCF oxygen electrode. During fuel cell and electrolysis operation the cells were electrochemically characterised by means of i-V characteristics and electrochemical impedance spectroscopy measurements including a long-term test over 2000 hours. The results of electrochemical performance and long-term durability tests of both single cells and single repeating units (cell including metallic interconnect) are reported. During electrolysis operation at an operating temperature of 850 °C a cell voltage of 1.28 V was achieved at a current density of -1.0 A cm-2; at 800 °C the cell voltage was 1.40 V at the same operating conditions. The impedance spectra revealed a significantly enhanced polarisation resistance during electrolysis operation compared to fuel cell operation which was mainly attributed to the hydrogen electrode. During a long-term test run of a single cell over 2000 hours a degradation rate of 3.2% per 1000 hours was observed for operation with steam content of 43% at 800 °C and a current density of -0.3 Acm-2. Testing of a single repeating unit proved that a good contacting of cell and metallic interconnect is of major importance to achieve good performance. A test run over nearly 1000 hours showed a remarkably low degradation rate.

• Periodical: Advances in Science and Technology (Volume 72)
• Pages: 135-143
• DOI: https://doi.org/10.4028/www.scientific.net/AST.72.135
• Online since: October 2010
• Authors: Günter Schiller, Asif Ansar, Olaf Patz
• Keywords: Degradation Behaviour, Electrochemical Performance, High Temperature Steam Electrolysis, Metal Supported Cell, Single Cell, Single Repeating Unit

References

[1] J. Divisek, H. Wendt (1990), in: Electrochemical Hydrogen Technologies, edited by H. Wendt, Elsevier, Amsterdam (1990).

[2] W. Kreuter, H. Hofmann, in: Hydrogen Energy Progress XI, edited by T.N. Veziroglu, C.J. Winter, J.P. Baselt, G. Kreysa, International Association for Hydrogen Energy (1996).

[3] H. Janssen, B. Emonts, H.G. Groehn, H. Mai, R. Reichel, D. Stolten: HYPOTHESIS IV Vol. 1 (2001), p.172.

[4] G. Schiller, R. Henne, P. Mohr, V. Peinecke: Int. J. Hydrogen Energy Vol. 23(9) (1998), p.761.

[5] M. Mogensen, C. Bagger: Proc. 1998 Fuel Cell Seminar Palm Springs, CA, USA (1998), p.96.

[6] M. Mogensen, S.H. Jensen, A. Hauch, I. Chorkendorff, T. Jacobsen: Proc. 7th European SOFC Forum Lucerne (2006), PO301.

[7] W. Dönitz, R. Schmidberger, E. Steinheil, R. Streicher: Int. J. Hydrogen Energy Vol. 5(1) (1980), p.55.

[8] W. Dönitz, E. Erdle: Int. J. Hydrogen Energy Vol. 10(5) (1985), p.291.

[9] W. Dönitz, E. Erdle, in: Electrochemical Hydrogen Energy Technologies, Electrochemical Production and Combustion of Hydrogen, edited by H. Wendt, Elsevier, Amsterdam (1990).

[10] E. Erdle, W. Dönitz, R. Schramm, A. Koch: Int. J. Hydrogen Energy Vol. 17(10) (1992), p.817.

[11] A.O. Isenberg: Solid State Ionics Vol. 3-4 (1981), p.431.

[12] J. Hartvigsen, S. Elangovan, J.E. O'Brien, C.M. Stoots, J.S. Herring, P. Lessing: Proc. 6th European SOFC Forum Lucerne (2004), p.378.

[13] J.E. O'Brien, C.M. Stoots, J.S. Herring, J. Hartvigsen: J. Fuel Cell Science and Technol. Vol. 3(2) (2006), p.213.

[14] H.S. Hong, U. Chae, S.T. Choo, K.S. Lee: J. of Power Sources Vol. 149 (2005), p.84.

[15] W.S. Wang, Y.Y. Huang, S.W. Jung, J.M. Vohs, R.J. Gorte: J. of the Electrochem. Soc. Vol. 153(11) (2006), p. A2066.

[16] H. Uchida, N.N. Osada, M. Watanabe: Solid-State Letters Vol. 7(12) (2004), p. A500.

[17] N.N. Osada, H. Uchida, M. Watanabe: J. of the Electrochem. Soc. Vol. 153(5) (2006), p. A816.

[18] A. Brisse A, M. Mogensen, G. Schiller, U. Vogt, M. Zahid: Proc. 17th World Hydrogen Energy Conference (WHEC2008) Brisbane, Australia (2008).

[19] Information on http: /www. relhy. eu.

[20] R.H. Henne, T. Franco, R. Ruckdäschel: J. Therm. Spray Technol. Vol. 15(4) (2006), p.695.

[21] T. Franco, Z. HoshiarDin, P. Szabo, M. Lang, G. Schiller: Journal of Fuel Cell Science and Technology Vol. 4(4) (2007), p.406.

[22] T. Franco, K. Schibinger, Z. Ilhan, G. Schiller, A. Venskutonis: Proc. 10th International Symposium on Solid Oxide Fuel Cells (SOFC-X) Nara, Japan (2007), electronic paper.

[23] A.A. Syed, Z. Ilhan, J. Arnold, G. Schiller, H. Weckmann: J. Therm. Spray Technol. Vol. 15(4) (2006), p.617.

[24] S.A. Ansar, Z. Ilhan, W. Richter: High Temp. Mater. Process. Vol. 11(1) (2007), p.83.

[25] S.A. Ansar, Z. Ilhan: MRS Spring Meeting San Francisco USA (2007), electronic paper.

[26] D. Wiedenmann, U.F. Vogt, C. Soltmann, O. Patz, G. Schiller, B. Grobety: Fuel Cells Vol. 9(6) (2009), p.861.
