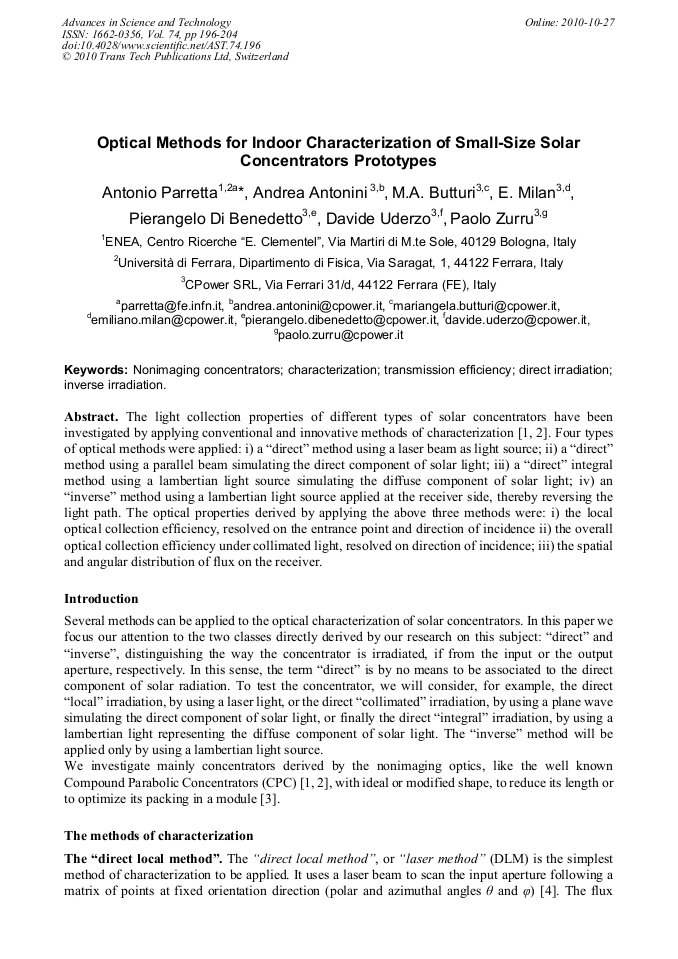

Optical Methods for Indoor Characterization of Small-Size Solar Concentrators Prototypes

Abstract:

The light collection properties of different types of solar concentrators have been investigated by applying conventional and innovative methods of characterization [1, 2]. Four types of optical methods were applied: i) a “direct” method using a laser beam as light source; ii) a “direct” method using a parallel beam simulating the direct component of solar light; iii) a “direct” integral method using a lambertian light source simulating the diffuse component of solar light; iv) an “inverse” method using a lambertian light source applied at the receiver side, thereby reversing the light path. The optical properties derived by applying the above three methods were: i) the local optical collection efficiency, resolved on the entrance point and direction of incidence ii) the overall optical collection efficiency under collimated light, resolved on direction of incidence; iii) the spatial and angular distribution of flux on the receiver.

• Periodical: Advances in Science and Technology (Volume 74)
• Pages: 196-204
• DOI: https://doi.org/10.4028/www.scientific.net/AST.74.196
• Online since: October 2010
• Authors: Antonio Parretta, Andrea Antonini, Maria Angela Butturi, Emiliano Milan, Pierangelo Di Benedetto, Davide Uderzo, Paolo Zurru
• Keywords: Characterization, Direct Irradiation, Inverse Irradiation, Nonimaging Concentrator, Transmission Efficiency

References

[1] R. Winston, J.C. Miñano, P. Benítez, Nonimaging Optics, Elsevier Academic Press, (2005).

[2] J. Chaves, Introduction to Nonimaging Optics, CRC Press, (2008).

[3] A. Parretta, P. Morvillo, C. Privato, G. Martinelli, R. Winston, Modelling of 3D-CPCs for concentrating photovoltaic systems, in PV in Europe, from PV Technology to Energy Solutions, Rome, Italy, 7-11 Oct. 2002 (WIP-Munich and ETA-Florence, 2002), pp.547-550.

[4] A. Parretta, A. Antonini, M. Stefancich, V. Franceschini, G. Martinelli, M. Armani, Characterization of CPC solar concentrators by a laser method, in Optical Modeling and Measurements for Solar Energy Systems, ed. by Daryl R. Myers, Proc. SPIE Vol. 6652, pp.665207-12.

DOI: 10.1117/12.733925

[5] A. Antonini, M.A. Butturi, P. Di Benedetto, D. Uderzo, P. Zurru, E. Milan, M. Stefancich, M. Armani, A. Parretta, N. Baggio, Rondine® PV Concentrators: Field Results and Developments, Progress in Photovoltaics 17, 451-459 (2009).

DOI: 10.1002/pip.907

[6] A. Parretta, A. Antonini, M. Stefancich, G. Martinelli, M. Armani, Inverse illumination method for characterization of CPC concentrators, in Optical Modeling and Measurements for Solar Energy Systems, ed. by Daryl R. Myers, Proc. of SPIE Vol. 6652, pp.665205-12.

DOI: 10.1117/12.733605

[7] A. Parretta, A. Antonini, E. Milan, M. Stefancich, G. Martinelli, M. Armani, Optical efficiency of solar concentrators by a reverse optical path method, Optics Letters 33, 2044-2046 (2009).

DOI: 10.1364/ol.33.002044

[8] A. Parretta, A. Antonini, E. Bonfiglioli, M. Campa, D. Vincenzi, G. Martinelli, Il metodo inverso svela le proprietà dei concentratori solari, PV Technology, n. 3, Agosto/Settembre 2009, pag. 58-64.
