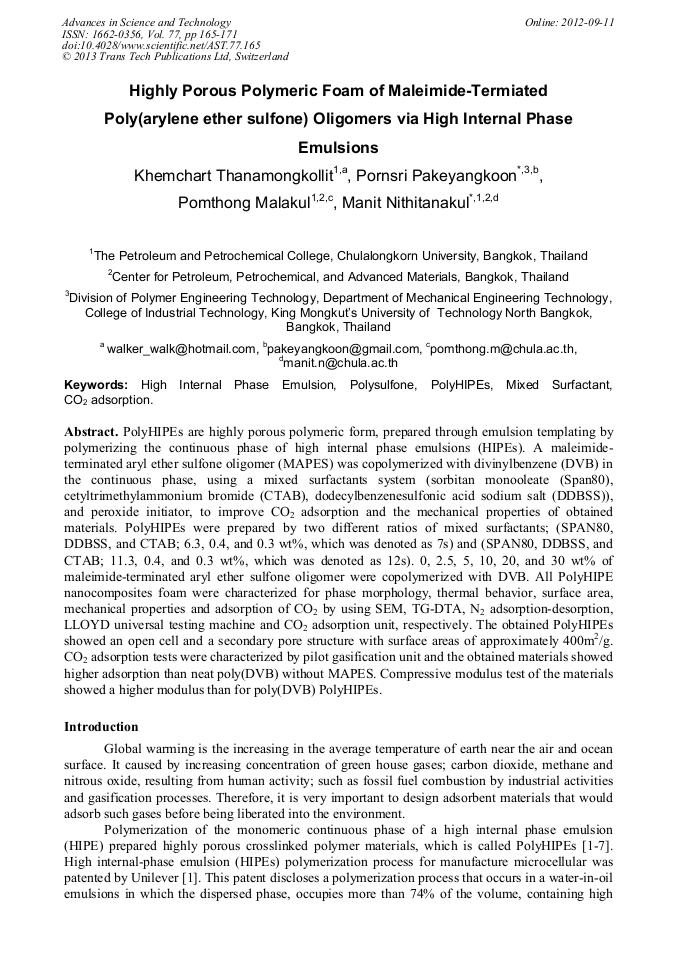

Highly Porous Polymeric Foam of Maleimide-Termiated Poly(arylene ether sulfone) Oligomers via High Internal Phase Emulsions

Abstract:

PolyHIPEs are highly porous polymeric form, prepared through emulsion templating by polymerizing the continuous phase of high internal phase emulsions (HIPEs). A maleimide-terminated aryl ether sulfone oligomer (MAPES) was copolymerized with divinylbenzene (DVB) in the continuous phase, using a mixed surfactants system (sorbitan monooleate (Span80), cetyltrimethylammonium bromide (CTAB), dodecylbenzenesulfonic acid sodium salt (DDBSS)), and peroxide initiator, to improve CO2 adsorption and the mechanical properties of obtained materials. PolyHIPEs were prepared by two different ratios of mixed surfactants; (SPAN80, DDBSS, and CTAB; 6.3, 0.4, and 0.3 wt%, which was denoted as 7s) and (SPAN80, DDBSS, and CTAB; 11.3, 0.4, and 0.3 wt%, which was denoted as 12s). 0, 2.5, 5, 10, 20, and 30 wt% of maleimide-terminated aryl ether sulfone oligomer were copolymerized with DVB. All PolyHIPE nanocomposites foam were characterized for phase morphology, thermal behavior, surface area, mechanical properties and adsorption of CO2 by using SEM, TG-DTA, N2 adsorption-desorption, LLOYD universal testing machine and CO2 adsorption unit, respectively. The obtained PolyHIPEs showed an open cell and a secondary pore structure with surface areas of approximately 400m2/g. CO¬2 adsorption tests were characterized by pilot gasification unit and the obtained materials showed higher adsorption than neat poly(DVB) without MAPES. Compressive modulus test of the materials showed a higher modulus than for poly(DVB) PolyHIPEs.

• Periodical: Advances in Science and Technology (Volume 77)
• Pages: 165-171
• DOI: https://doi.org/10.4028/www.scientific.net/AST.77.165
• Online since: September 2012
• Authors: Khemchart Thanamongkollit, Pornsri Pakeyangkoon, Pomthong Malakul, Manit Nithitanakul
• Keywords: CO₂ Adsorption, High Internal Phase Emulsion, Mixed Surfactant, PolyHIPE, Polysulfone

References

[1] D. Barby, A. Haq, Low density porous cross-linked polymeric materials and their preparation and use as carriers for included liquids, European Patent, 0,060,138 (1982).

[2] D.C. Walsch, J.I.T. Stenhouse, L.P. Kingsbury, E.J. Webster, PolyHIPE foams: Production, characterisation, and performance as aerosol filtration materials, J. Aerosol Sci. 27 (1996) 629-630.

DOI: 10.1016/0021-8502(96)00387-4

[3] A.R. Elmes, K. Hammond and D.C. Sherrington, Euro- pean Patent Application. 88 (1988) 303 675.8.

[4] N.R. Cameron and D.C. Sherrington, Synthesis and Characterization of Poly(aryl Ether Sulfone) PolyHIPE Materials, Macromolecules. 30(19) (1997) 5860-5869.

DOI: 10.1021/ma961403f

[5] N.R. Cameron, A. Barbetta The influence of porogen type on the porosity, surface area and morphology of poly(divinylbenzene) PolyHIPE foams, J. Mater. Chem. 10 (2000) 2466-2471.

DOI: 10.1039/b003596n

[6] A. Barbetta and N.R. Cameron, Morphology and Surface Area of Emulsion-Derived (PolyHIPE) Solid Foams Prepared with Oil-Phase Soluble Porogenic Solvents: Span 80 as Surfactant, Macromolecules. 37 (2004) 3188-3201.

DOI: 10.1021/ma0359436

[7] A. Barbetta Barbetta and N.R. Cameron, Morphology and Surface Area of Emulsion-Derived (PolyHIPE) Solid Foams Prepared with Oil-Phase Soluble Porogenic Solvents: Three-Component Surfactant System, Macromolecules. 37 (2004) 3202-3213.

DOI: 10.1021/ma035944y

[8] P. Pornsri, M. Rathanawan, M. Pomthong and N. Manit, Effect of Soxhlet Eztraction and Surfactant System on Morphology and Properties of POLY(DVB)POLYHIPE, Macromol. Symp. 264 (2008) 149-156.

DOI: 10.1002/masy.200850424

[9] P. Pannak, M. Rathanawan, M. Pomthong and N. Manit, Adsorption of Toxic Gases from Gasification Process by PolyHIPEs, Thesis Submitted for the Degree of Master of Science, The Petroleum and Petrochemical College, Chulalongkorn University, Bangkok, Thailand. (2009).

[10] Z.G. Bhumgara, Polyhipe Foam Materials as Filtration Media, Filtration & Separation. (March 1995) 245-251.

DOI: 10.1016/s0015-1882(97)84048-7

[11] H. Deleuze, B. Maillard and O. Mondain-Monval, Development of a New Ultraporous Polymer as Support in Organic Synthesis, Bioorganic & Medicinal Chemistry Letters. 12 (2002) 1877-1880.

DOI: 10.1016/s0960-894x(02)00263-9

[12] G. Akay, M.A. Birch and M.A. Bokhari, Microcellular polyHIPE polymer supports osteoblast growth and bone formation in vitro, Biomaterials. 25 (2004) 3991–4000.

DOI: 10.1016/j.biomaterials.2003.10.086

[13] P. Pornsri, M. Rathanawan, M. Pomthong and N. Manit, Polymeric Foam via Polymerized High Internal Phase Emulsion (HIPE) Filled with Organo-Modified Bentonite, J Applied Poly Sci. 114(5) (2009) 3041-3048.

DOI: 10.1002/app.30091

[14] K. Thanamongkollit, M. Pomthong and N. Manit, Highly Porous Polymeric Foam of Maleimide-Terminated Poly(arylene ether sulfone) Oligomers via High Internal Phase Emulsions (Synthesis Part), Thesis Submitted for the Degree of Master of Science, The Petroleum and Petrochemical College, Chulalongkorn University, Bangkok, Thailand. (2010).

DOI: 10.4028/www.scientific.net/ast.77.165
