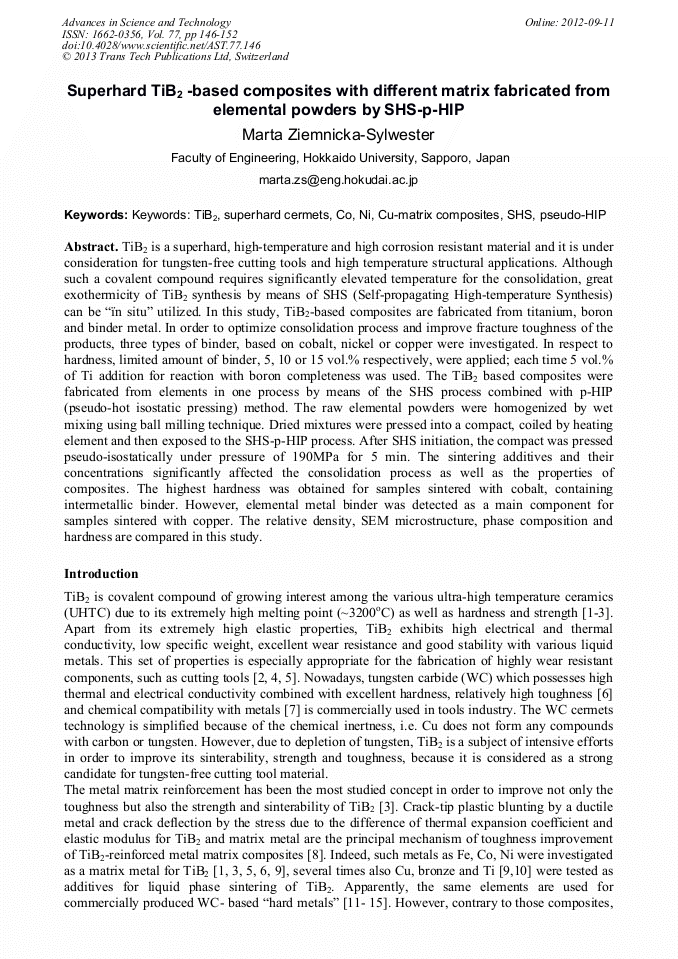

Superhard TiB₂ - Based Composites with Different Matrix Fabricated from Elemental Powders by SHS-p-HIP

Abstract:

TiB₂ is a superhard, high-temperature and high corrosion resistant material and it is under consideration for tungsten-free cutting tools and high temperature structural applications. Although such a covalent compound requires significantly elevated temperature for the consolidation, great exothermicity of TiB₂ synthesis by means of SHS (Self-propagating High-temperature Synthesis) can be “ïn situ” utilized. In this study, TiB₂-based composites are fabricated from titanium, boron and binder metal. In order to optimize consolidation process and improve fracture toughness of the products, three types of binder, based on cobalt, nickel or copper were investigated. In respect to hardness, limited amount of binder, 5, 10 or 15 vol.% respectively, were applied; each time 5 vol.% of Ti addition for reaction with boron completeness was used. The TiB₂ based composites were fabricated from elements in one process by means of the SHS process combined with p-HIP (pseudo-hot isostatic pressing) method. The raw elemental powders were homogenized by wet mixing using ball milling technique. Dried mixtures were pressed into a compact, coiled by heating element and then exposed to the SHS-p-HIP process. After SHS initiation, the compact was pressed pseudo-isostatically under pressure of 190MPa for 5 min. The sintering additives and their concentrations significantly affected the consolidation process as well as the properties of composites. The highest hardness was obtained for samples sintered with cobalt, containing intermetallic binder. However, elemental metal binder was detected as a main component for samples sintered with copper. The relative density, SEM microstructure, phase composition and hardness are compared in this study.

• Periodical: Advances in Science and Technology (Volume 77)
• Pages: 146-152
• DOI: https://doi.org/10.4028/www.scientific.net/AST.77.146
• Online since: September 2012
• Authors: Marta Ziemnicka-Sylwester
• Keywords: Co, Cu Matrix Composites, Ni, Pseudo-HIP, SHS, Superhard Cermets, TiB₂

References

[1] R. Gonzales, M. G. Barandika, D. Ona, J. M. Sanchez, A. Villellas, A. Valea, F. Castro: Materials Science and Engineering A216 (1996) 185-192

[2] Amartya Mukhopadhyay, G. B. Raju, Bikramjit Basu, A. K. Suri, Journal of the European Ceramic Society 29 (2009) 505-516

[3] Jongsang Lee and Nack J. Kim, Scripta Materialia, vol. 39, no.8, 1063-1069, (1998)

[4] Duygu Agaogullari, Hasan Gokce, Ismail Duman, M. Lutfi Ovecoglu: Journal of the European Ceramic Society 32, 9 (2012), 1949-1956

[5] L. S. Sigl, K. A. Schwetz &U. Dworak, Int. J. of Refractory Metals & Hard Materials 12 (1993-1994) 95-99

DOI: 10.1016/0263-4368(93)90020-g

[6] R. Telle, G. Petzow, Materials Science and Engineering A 105/106 (1988) 97-104

[7] Yu. V. Baikalova, O. I. Lomovsky, Journal of Alloys and Compounds 297 (2000) 87-91

[8] Qiang Xu, Xinghong, Jiecai Han, Xiaodong He, V. L. Kvanin, Materials Letters 57 (2003) 4439-4444

[9] P. Yih, D. D. L. Chung, Journal of Materials Science 32 (1997) 1703-1709

[10] Y. J. Kwon, M. Kobashi, T. Choh, N. Kanetake, Scripta matrialia 50 (2004) 577-581

[11] Guojin Jiang, Wenlan Li, Hanrui Zhuang: Materials Science and Engineering A 354 (2003) 351-357

[12] Guojian Jiang, Hanrui Zhuang, Wenlan Li, Combustion and Flame 135 (2003) 113-121

[13] Kiyotaka Matsuura, Yusuke Hikichi and Yuki Obara Advances in Science and Technology, Vol. 45 (2006), 1024-1028.

[14] Irina Hussainova, Jakob Kubarsepp, Juri Pirso, Wear 250 (2001) 818-825

DOI: 10.1016/s0043-1648(01)00737-2

[15] T. Kagnaya, C. Boher, L. Lambert, M. Lazard, T. Cutard, Wear 267 (2009) 890-897

DOI: 10.1016/j.wear.2008.12.035

[16] Phase Diagrams of Binary Nickel Alloys: P. Nash, ASM International, The Materials Information Society Materials Park, OH 44073, (1991)

[17] G. Cacciamani, R. Ferro, I. Ansara, N. Dupin, Intermetallics 8 (2000) 213-22

[18] V. I. Itin, A. D. Bratchikov, A. G. Merzhanov, V. M. Maslov: Plenum Publishing Corporation, pp.293-298, Translated from Fizika Goreniya I Vzryva, vol. 17, No.3, pp.62-67, May-June (1981)

[19] Phase Diagrams of Binary Copper Alloys: P. R. Subramanian, D. J. Chakrabarti, D. E. Laughlin, ASM International, The Materials Information Society, Materials Park, OH 44073, (1994)

[20] Alexander S. Mukasyan, Paul Epstein, Peter Dinka, Proceedings of the Combustion Insitute 31 (2007) 1789-1795
