Transparent Tetragonal Zirconia Ceramics by Colloidal Processing of Nanoparticle Suspension

Abstract:

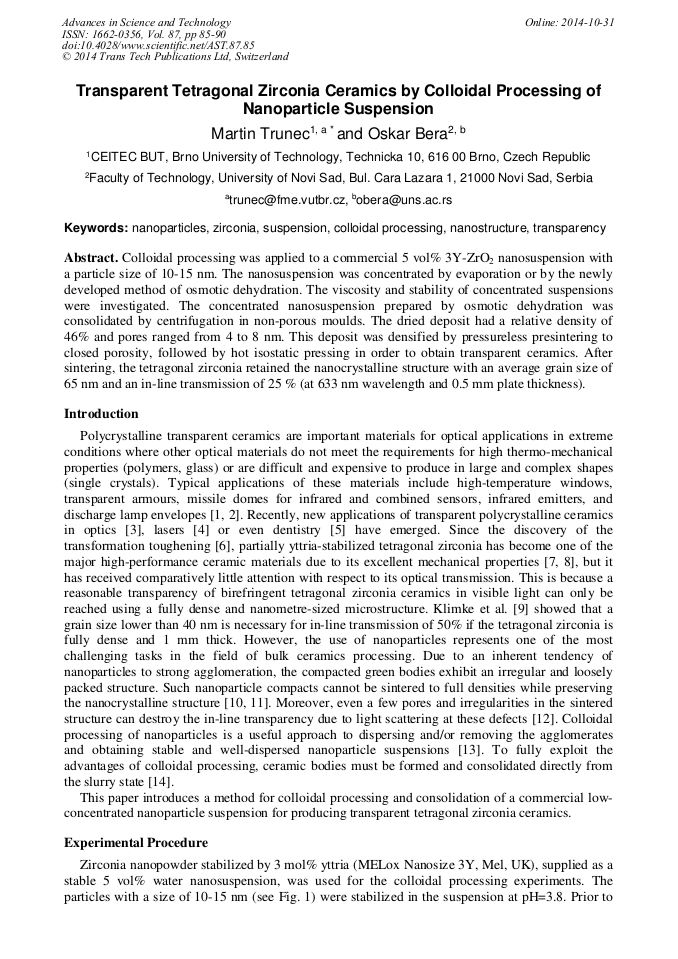

Colloidal processing was applied to a commercial 5 vol% 3Y-ZrO₂ nanosuspension with a particle size of 10-15 nm. The nanosuspension was concentrated by evaporation or by the newly developed method of osmotic dehydration. The viscosity and stability of concentrated suspensions were investigated. The concentrated nanosuspension prepared by osmotic dehydration was consolidated by centrifugation in non-porous moulds. The dried deposit had a relative density of 46% and pores ranged from 4 to 8 nm. This deposit was densified by pressureless presintering to closed porosity, followed by hot isostatic pressing in order to obtain transparent ceramics. After sintering, the tetragonal zirconia retained the nanocrystalline structure with an average grain size of 65 nm and an in-line transmission of 25 % (at 633 nm wavelength and 0.5 mm plate thickness).

• Periodical: Advances in Science and Technology (Volume 87)
• Pages: 85-90
• DOI: https://doi.org/10.4028/www.scientific.net/AST.87.85
• Online since: October 2014
• Authors: Martin Trunec*, Oskar Bera
• Keywords: Colloidal Processing, Nanoparticle, Nanostructure, Suspension, Transparency, Zirconia

References

[1] G.C. Wei, Transparent ceramics for lighting, J. Eur. Ceram. Soc. 29 (2009) 237-244.

[2] A. Krell, T. Hutzler, J. Klimke, Transmission physics and consequences for materials selection, manufacturing, and applications, J. Eur. Ceram. Soc. 29 (2009) 207-221.

DOI: 10.1016/j.jeurceramsoc.2008.03.025

[3] U. Peuchert, Y. Okano, Y. Menke, S. Reichel, A. Ikesue, Transparent cubic-ZrO2 ceramics for application as optical lenses, J. Eur. Ceram. Soc. 29 (2009) 283-291.

DOI: 10.1016/j.jeurceramsoc.2008.03.028

[4] V. Lupei, A. Lupei, A. Ikesue, Transparent polycrystalline ceramic laser materials, Opt. Mater. 30 (2008) 1781-1786.

DOI: 10.1016/j.optmat.2008.03.003

[5] Y.M. Chen, R.J. Smales, K.H.K. Yip, W.J. Sung, Translucency and biaxial flexural strength of four ceramic core materials, Dent. Mater. 24 (2008) 1506-1511.

DOI: 10.1016/j.dental.2008.03.010

[6] R.C. Garvie, R.H. Hannink, R.T. Pascoe, Ceramic stteel, Nature 258 (1975) 703-704.

DOI: 10.1038/258703a0

[7] M. Trunec, Effect of grain size on mechanical properties of 3Y-TZP ceramics, Ceram. -Silik. 52 (2008) 165-171.

[8] M. Trunec, Z. Chlup, Higher fracture toughness of tetragonal zirconia ceramics through nanocrystalline structure, Scr. Mater. 61 (2009) 56-59.

DOI: 10.1016/j.scriptamat.2009.03.019

[9] J. Klimke, M. Trunec, A. Krell, Transparent tetragonal yttria-stabilized zirconia ceramics: Influence of scattering caused by birefringence, J. Am. Ceram. Soc. 94 (2011) 1850-1858.

DOI: 10.1111/j.1551-2916.2010.04322.x

[10] F.F. Lange, Sinterability of agglomerated powders, J. Am. Ceram. Soc. 67 (1984) 83-89.

[11] M. Trunec, K. Maca, Compaction and pressureless sintering of zirconia nanoparticles, J. Am. Ceram. Soc. 90 (2007) 2735-2740.

DOI: 10.1111/j.1551-2916.2007.01781.x

[12] A. Krell, J. Klimke, T. Hutzler, Transparent compact ceramics: Inherent physical issues, Opt. Mater. 31 (2009) 1144-1150.

DOI: 10.1016/j.optmat.2008.12.009

[13] J.A. Lewis, Colloidal processing of ceramics, J. Am. Ceram. Soc. 83 (2000) 2341-2359.

[14] F.F. Lange, Powder processing science and technology for increased reliability, J. Am. Ceram. Soc. 72 (1989) 3-15.

[15] I. Santacruz, K. Anapoorani, J. Binner, Preparation of high solids content nanozirconia suspensions, J. Am. Ceram. Soc. 91 (2008) 398-405.

DOI: 10.1111/j.1551-2916.2007.02164.x

[16] M.I. Mendelson, Average grain size in polycrystalline ceramics, J. Am. Ceram. Soc. 52 (1969) 443-446.

[17] W.M. Sigmund, N.S. Bell, L. Bergstrom, Novel powder-processing methods for advanced ceramics, J. Am. Ceram. Soc. 83 (2000) 1557-1574.

[18] U. Anselmi-Tamburini, J.N. Woolman, Z.A. Munir, Transparent nanometric cubic and tetragonal zirconia obtained by high-pressure pulsed electric current sintering, Adv. Funct. Mater. 17 (2007) 3267-3273.

DOI: 10.1002/adfm.200600959
