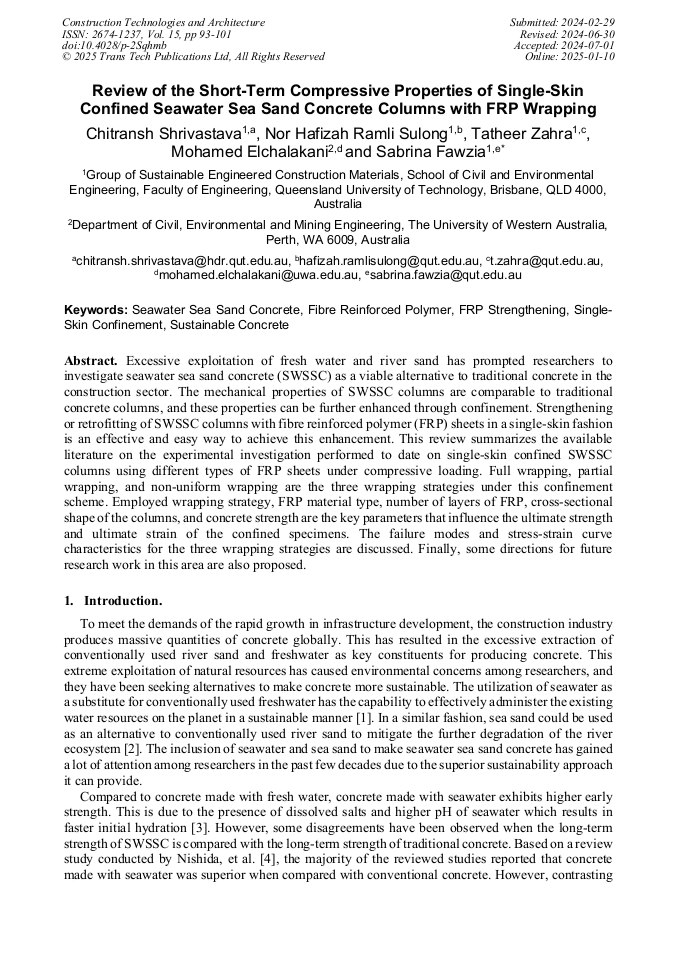

Review of the Short-Term Compressive Properties of Single-Skin Confined Seawater Sea Sand Concrete Columns with FRP Wrapping

Abstract:

Excessive exploitation of fresh water and river sand has prompted researchers to investigate seawater sea sand concrete (SWSSC) as a viable alternative to traditional concrete in the construction sector. The mechanical properties of SWSSC columns are comparable to traditional concrete columns, and these properties can be further enhanced through confinement. Strengthening or retrofitting of SWSSC columns with Fibre reinforced polymer (FRP) sheets in a single-skin fashion is an effective and easy way to achieve this enhancement. This review summarizes the available literature on the experimental investigation performed to date on single-skin confined SWSSC columns using different types of FRP sheets under compressive loading. Full wrapping, partial wrapping, and non-uniform wrapping are the three wrapping strategies under this confinement scheme. Employed wrapping strategy, FRP material type, number of layers of FRP, cross-sectional shape of the columns, and concrete strength are the key parameters that influence the ultimate strength and ultimate strain of the confined specimens. The failure modes and stress-strain curve characteristics for the three wrapping strategies are discussed. Finally, some directions for future research work in this area are also proposed.

• Periodical: Construction Technologies and Architecture (Volume 15)
• Pages: 93-101
• DOI: https://doi.org/10.4028/p-2Sqhmb
• Online since: January 2025
• Authors: Chitransh Shrivastava*, Nor Hafizah Ramli Sulong, Tatheer Zahra, Mohamed Elchalakani, Sabrina Fawzia
• Keywords: Fiber Reinforced Polymer (FRP), FRP Strengthening, Seawater Sea Sand Concrete, Single-Skin Confinement, Sustainable Concrete

References

[1] J. Xiao, C. Qiang, A. Nanni, and K. Zhang, "Use of sea-sand and seawater in concrete construction: Current status and future opportunities," Construction and Building Materials, vol. 155, pp.1101-1111, 2017.

DOI: 10.1016/j.conbuildmat.2017.08.130

[2] D. Pan, S. A. Yaseen, K. Chen, D. Niu, C. K. Y. Leung, and Z. Li, "Study of the influence of seawater and sea sand on the mechanical and microstructural properties of concrete," Journal of Building Engineering, vol. 42, p.103006, 2021.

DOI: 10.1016/j.jobe.2021.103006

[3] A. Younis, U. Ebead, P. Suraneni, and A. Nanni, "Fresh and hardened properties of seawater-mixed concrete," Construction and Building Materials, vol. 190, pp.276-286, 2018.

DOI: 10.1016/j.conbuildmat.2018.09.126

[4] T. Nishida, N. Otsuki, H. Ohara, Z. M. Garba-Say, and T. Nagata, "Some considerations for applicability of seawater as mixing water in concrete," Journal of Materials in Civil engineering, vol. 27, p. B4014004, 2015.

DOI: 10.1061/(asce)mt.1943-5533.0001006

[5] T. Dhondy, A. Remennikov, and M. Neaz Sheikh, "Properties and application of Sea Sand in sea sand–Seawater concrete," Journal of Materials in Civil Engineering, vol. 32, p.04020392, 2020.

DOI: 10.1061/(asce)mt.1943-5533.0003475

[6] X. Hu, J. Xiao, K. Zhang, and Q. Zhang, "The state-of-the-art study on durability of FRP reinforced concrete with seawater and sea sand," Journal of Building Engineering, vol. 51, p.104294, 2022.

DOI: 10.1016/j.jobe.2022.104294

[7] L. Lam and J. Teng, "Ultimate condition of fiber reinforced polymer-confined concrete," Journal of Composites for Construction, vol. 8, pp.539-548, 2004.

DOI: 10.1061/(asce)1090-0268(2004)8:6(539)

[8] G. Chen, P. Liu, T. Jiang, Z. He, X. Wang, L. Lam, et al., "Effects of natural seawater and sea sand on the compressive behaviour of unconfined and carbon fibre-reinforced polymer-confined concrete," Advances in Structural Engineering, vol. 23, pp.3102-3116, 2020.

DOI: 10.1177/1369433220920459

[9] A. Zaman, S. A. Gutub, and M. A. Wafa, "A review on FRP composites applications and durability concerns in the construction sector," Journal of reinforced plastics and composites, vol. 32, pp.1966-1988, 2013.

DOI: 10.1177/0731684413492868

[10] R. Sonnenschein, K. Gajdosova, and I. Holly, "FRP Composites and their Using in the Construction of Bridges," Procedia engineering, vol. 161, pp.477-482, 2016.

DOI: 10.1016/j.proeng.2016.08.665

[11] Y. Wei, P. Xu, Y. Zhang, G. Wang, and K. Zheng, "Compressive behaviour of FRP-steel wire mesh composite tubes filled with seawater and sea sand concrete," Construction and Building Materials, vol. 314, p.125608, 2022.

DOI: 10.1016/j.conbuildmat.2021.125608

[12] J.-J. Zeng, W.-Y. Gao, Z.-J. Duan, Y.-L. Bai, Y.-C. Guo, and L.-J. Ouyang, "Axial compressive behavior of polyethylene terephthalate/carbon FRP-confined seawater sea-sand concrete in circular columns," Construction and Building Materials, vol. 234, p.117383, 2020.

DOI: 10.1016/j.conbuildmat.2019.117383

[13] J.-J. Zeng, Z.-J. Duan, W.-Y. Gao, Y.-L. Bai, and L.-J. Ouyang, "Compressive behavior of FRP-wrapped seawater sea-sand concrete with a square cross-section," Construction and Building Materials, vol. 262, p.120881, 2020.

DOI: 10.1016/j.conbuildmat.2020.120881

[14] J. Yang, S. Lu, J. Wang, and Z. Wang, "Behavior of CFRP partially wrapped square seawater sea-sand concrete columns under axial compression," Engineering Structures, vol. 222, p.111119, 2020.

DOI: 10.1016/j.engstruct.2020.111119

[15] P. Li, T. Yang, Q. Zeng, F. Xing, and Y. Zhou, "Axial stress–strain behavior of carbon FRP-confined seawater sea-sand recycled aggregate concrete square columns with different corner radii," Composite Structures, vol. 262, p.113589, 2021.

DOI: 10.1016/j.compstruct.2021.113589

[16] J. Yang, J. Wang, and Z. Wang, "Axial compressive behavior of partially CFRP confined seawater sea-sand concrete in circular columns–Part I: Experimental study," Composite Structures, vol. 246, p.112373, 2020.

DOI: 10.1016/j.compstruct.2020.112373

[17] J. Yang, Z. Wang, and J. Wang, "Compressive Performance of Partially CFRP-Confined Square Seawater–Sea Sand Concrete Columns with Internal Epoxy-Coated Reinforcement," Journal of Composites for Construction, vol. 26, p.04021073, 2022.

DOI: 10.1061/(asce)cc.1943-5614.0001185

[18] Z. Chen, W. Qin, Y. Liang, and J. Zhou, "Axial compressive performance of seawater sea sand concrete-filled CFRP-stainless steel tube short columns," Construction and Building Materials, vol. 369, p.130501, 2023.

DOI: 10.1016/j.conbuildmat.2023.130501

[19] F. Yuan, J. Song, and Y. Wu, "Effect of compression casting method on the axial compressive behavior of FRP-confined seawater sea-sand concrete columns," Engineering Structures, vol. 290, p.116311, 2023.

DOI: 10.1016/j.engstruct.2023.116311

[20] J. Yang, J. Wang, and Z. Wang, "Behavior and modeling of CFRP nonuniformly wrapped circular seawater sea-sand concrete (SSC) columns under axial compression," Construction and Building Materials, vol. 299, p.123887, 2021.

DOI: 10.1016/j.conbuildmat.2021.123887

[21] Y. Junlong, W. Jizhong, L. Shiwei, L. ZHANG, and W. Ziru, "Axial compressive behavior of FRP nonuniformly wrapped seawater sea-sand concrete in square columns," 复合材料学报, vol. 39, pp.2801-2809, 2022.
