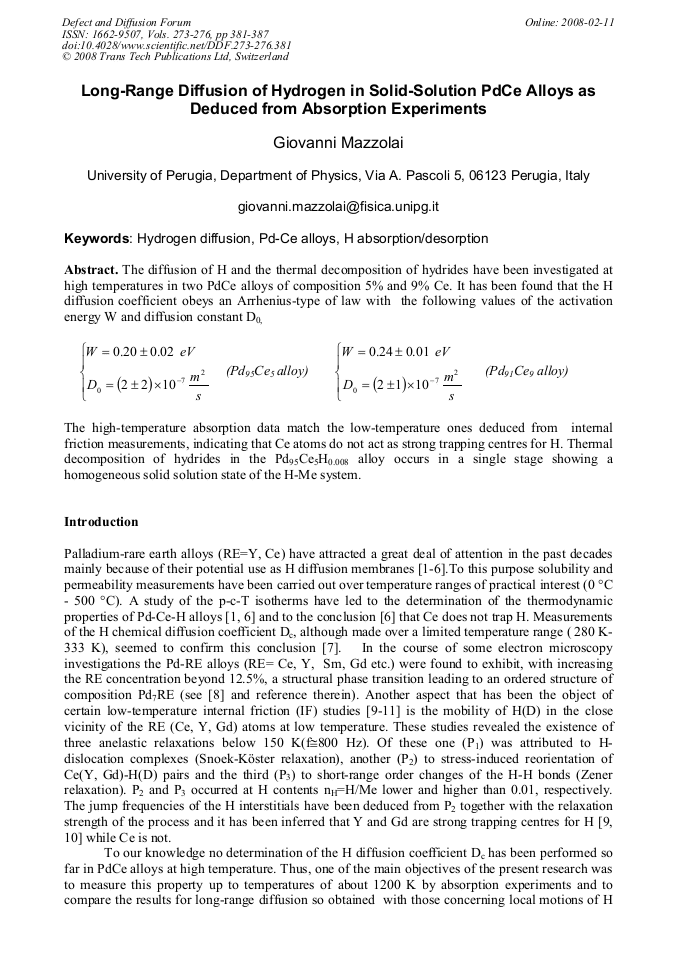

Long-Range Diffusion of Hydrogen in Solid-Solution PdCe Alloys as Deduced from Absorption Experiments
The diffusion of H and the thermal decomposition of hydrides have been investigated at high temperatures in two PdCe alloys of composition 5% and 9% Ce. It has been found that the H diffusion coefficient obeys an Arrhenius-type of law with the following values of the activation energy W and diffusion constant D0, ( ) = ± × = ± − s m D W eV 2 7 0 2 2 10 0.20 0.02 (Pd95Ce5 alloy) ( ) = ± × = ± − s m D W eV 2 7 0 2 1 10 0.24 0.01 (Pd91Ce9 alloy) The high-temperature absorption data match the low-temperature ones deduced from internal friction measurements, indicating that Ce atoms do not act as strong trapping centres for H. Thermal decomposition of hydrides in the Pd95Ce5H0.008 alloy occurs in a single stage showing a homogeneous solid solution state of the H-Me system.
Andreas Öchsner and Graeme E. Murch
G. Mazzolai "Long-Range Diffusion of Hydrogen in Solid-Solution PdCe Alloys as Deduced from Absorption Experiments", Defect and Diffusion Forum, Vols. 273-276, pp. 381-387, 2008
