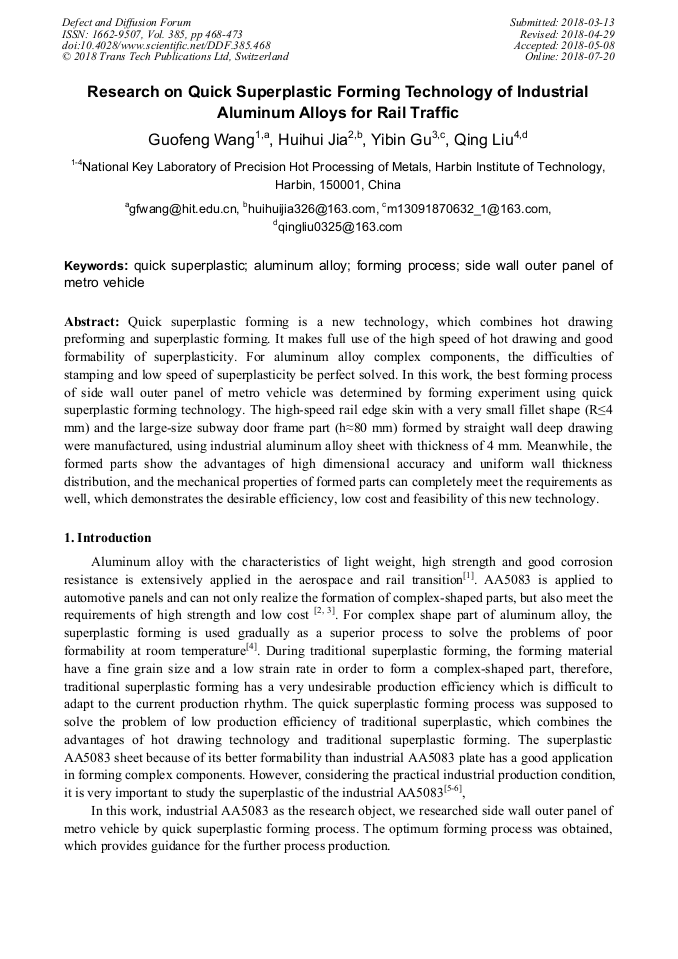

Research on Quick Superplastic Forming Technology of Industrial Aluminum Alloys for Rail Traffic

Abstract:

Quick superplastic forming is a new technology, which combines hot drawing preforming and superplastic forming. It makes full use of the high speed of hot drawing and good formability of superplasticity. For aluminum alloy complex components, the difficulties of stamping and low speed of superplasticity be perfect solved. In this work, the best forming process of side wall outer panel of metro vehicle was determined by forming experiment using quick superplastic forming technology. The high-speed rail edge skin with a very small fillet shape (R≤4 mm) and the large-size subway door frame part (h≈80 mm) formed by straight wall deep drawing were manufactured, using industrial aluminum alloy sheet with thickness of 4 mm. Meanwhile, the formed parts show the advantages of high dimensional accuracy and uniform wall thickness distribution, and the mechanical properties of formed parts can completely meet the requirements as well, which demonstrates the desirable efficiency, low cost and feasibility of this new technology.

• Periodical: Defect and Diffusion Forum (Volume 385)
• Pages: 468-473
• DOI: https://doi.org/10.4028/www.scientific.net/DDF.385.468
• Online since: July 2018
• Authors: Guo Feng Wang, Hui Hui Jia, Yi Bin Gu, Qing Liu
• Keywords: Aluminium Alloy, Forming Process, Quick Superplastic, Side Wall Outer Panel of Metro Vehicle

References

[1] Ma M T, You J H, Lu H Z, Automotive lightweight and application of aluminum alloy car board, J. New material industry. (2009)34-37.

[2] Dunwoody B J, The production of automotive body panels in 5083 SPF aluminium alloy[C]// Materials Science Forum. (2001)59-64.

DOI: 10.4028/www.scientific.net/msf.357-359.59

[3] Barnes A J, Industrial applications of super-plastic forming: Trends and Prospects, J. British Phycological Journal. 357(2001)3-16.

[4] Wang G F, Sun C, Liu S F, Research on quick superplastic forming technology of aluminum alloy complex components, J. Materialwissenschaft Und Werk-stofftechnik. 45(2015) 854-859.

DOI: 10.1002/mawe.201400294

[5] Anonymous, The aluminum alloy 5083 developed by Chinalco filled the domestic blank, J. Aluminum processing. 3(2013)25-25.

[6] Kaibyshervr, Musin F, Lesuer D R, Superplastic behavior of an Al–Mg alloy at elevated temperatures, J. Materials Science & Engineering A. 342(2003)169-177.

DOI: 10.1016/s0921-5093(02)00276-9

[7] Xu Q B, Tao Y R, Mi F, Constitutive Equation of Rheological Properties for 5083 Aluminum Alloy at Elevated Temperature, J. Mining and Metallurgical Engineering. 33(2013)124-126.

[8] Liu Q. Metal superplasticity, Shanghai：Shanghai Jiaotong University Press, (1989).
