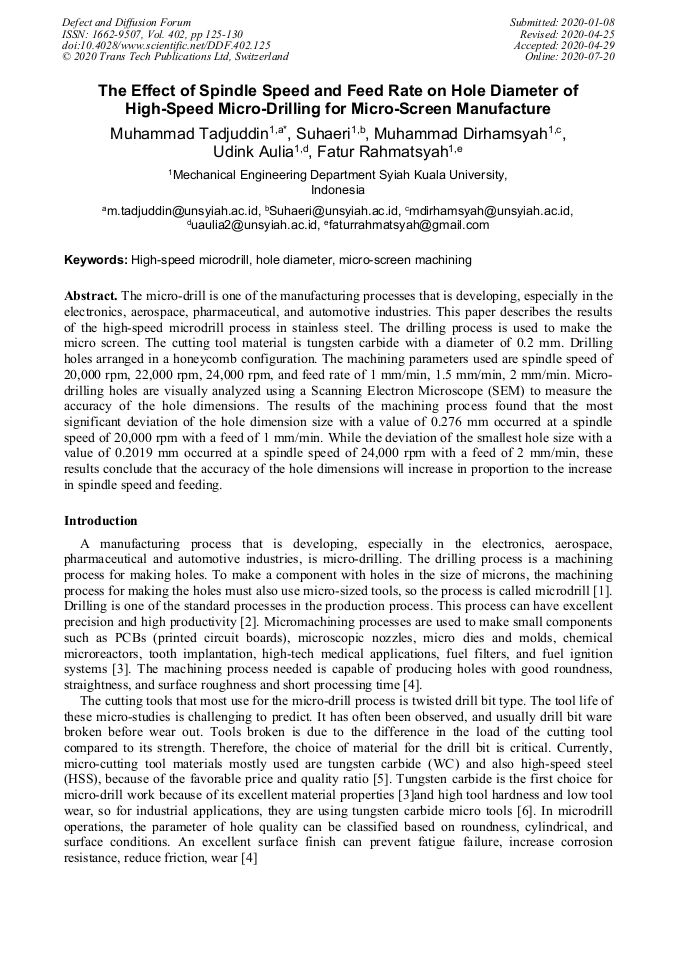

The Effect of Spindle Speed and Feed Rate on Hole Diameter of High-Speed Micro-Drilling for Micro-Screen Manufacture

Abstract:

The micro-drill is one of the manufacturing processes that is developing, especially in the electronics, aerospace, pharmaceutical, and automotive industries. This paper describes the results of the high-speed microdrill process in stainless steel. The drilling process is used to make the micro screen. The cutting tool material is tungsten carbide with a diameter of 0.2 mm. Drilling holes arranged in a honeycomb configuration. The machining parameters used are spindle speed of 20,000 rpm, 22,000 rpm, 24,000 rpm, and feed rate of 1 mm/min, 1.5 mm/min, 2 mm/min. Micro-drilling holes are visually analyzed using a Scanning Electron Microscope (SEM) to measure the accuracy of the hole dimensions. The results of the machining process found that the most significant deviation of the hole dimension size with a value of 0.276 mm occurred at a spindle speed of 20,000 rpm with a feed of 1 mm/min. While the deviation of the smallest hole size with a value of 0.2019 mm occurred at a spindle speed of 24,000 rpm with a feed of 2 mm/min, these results conclude that the accuracy of the hole dimensions will increase in proportion to the increase in spindle speed and feeding.

• Periodical: Defect and Diffusion Forum (Volume 402)
• Pages: 125-130
• DOI: https://doi.org/10.4028/www.scientific.net/DDF.402.125
• Online since: July 2020
• Authors: Muhammad Tadjuddin*, Suhaeri Suhaeri, Muhammad Dirhamsyah, Aulia Udink, Fatur Rahmatsyah
• Keywords: High-Speed Microdrill, Hole Diameter, Micro-Screen Machining

References

[1] K. Rajan, N. Prabhushankar, and N. Nagarajan, A Review Of Current Micro Drilling Processes,, Int. J. Innov. Sci. Eng. Technol., vol. 3, no. 1, p.60–64, (2016).

[2] M. Sharidan and S. Sharif, Performance Evaluation on Drilling of Austenitic Stainless Steel 316L Using Hss Tool,, vol. 37, no. 2, p.18–28, (2014).

[3] M. Hasan, J. Zhao, and Z. Jiang, A review of modern advancements in micro drilling techniques,, J. Manuf. Process., vol. 29, p.343–375, (2017).

[4] Widodo, N. Redzuan, and D. Kurniawan, Evaluation of Hole Quality on Microdrilling AISI304 Austenitic Stainless Steel,, Procedia Manuf., vol. 2, no. February, p.465–469, (2015).

DOI: 10.1016/j.promfg.2015.07.080

[5] M. Iqbal, S. Bahri, and A. Akram, Effect of cutting parameter on tool wear of HSS tool in drilling of Kevlar composite panel,, IOP Conf. Ser. Mater. Sci. Eng., vol. 523, p.012078, (2019).

DOI: 10.1088/1757-899x/523/1/012078

[6] Y. Wu, Investigating Tungsten Carbide Micro-Hole Drilling Characteristics by Desktop Micro-ECM with NaOH Solution,, (2018).

DOI: 10.3390/mi9100512

[7] H. V. Shinde and J. Jerald, Experimental Investigation of High Speed Micro-Drilling on SS 316L Material Using GRA,, vol. 08, no. 6, p.34–41, (2018).

[8] A. Jindal, Experimental Investigation of process & response parameters in Micro Drilling using Scanning Electron Microscope (SEM),, Anil Jindal Res. Cell An Int. J. Eng. Sci., vol. 6913, p.2229–6913, (2010).

[9] M. Dirhamsyah, M. Tadjuddin, A. Udink, Z. Yusuf, and H. Y. Saiful, The effect of cutting speed on dimension accuracy and burr development of high-speed micro drill proses on aluminium,, IOP Conf. Ser. Mater. Sci. Eng., vol. 523, p.012074, (2019).

DOI: 10.1088/1757-899x/523/1/012074
