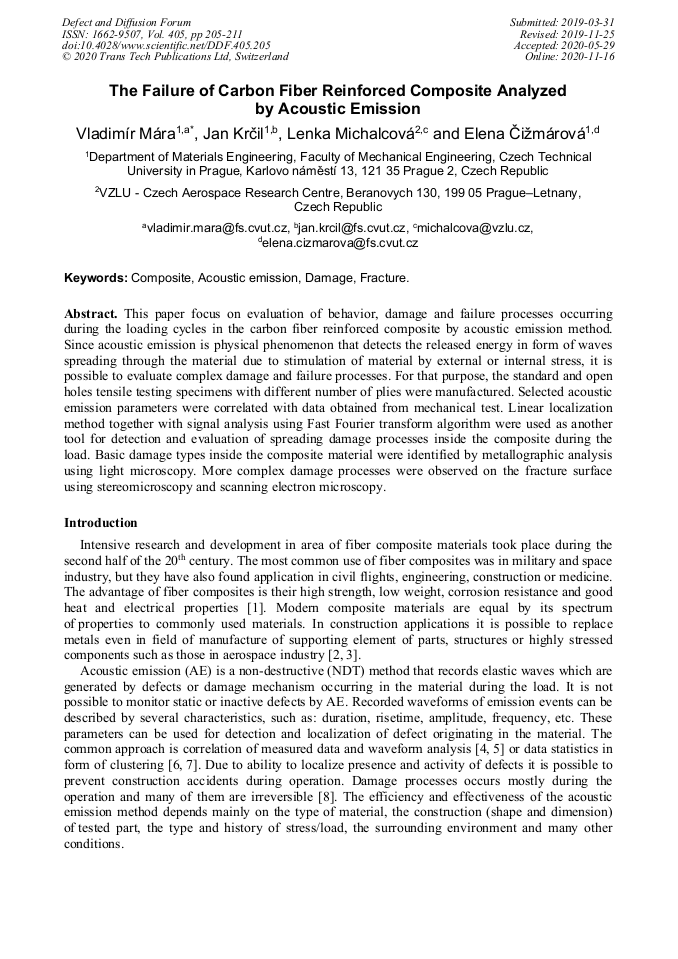

The Failure of Carbon Fiber Reinforced Composite Analyzed by Acoustic Emission

Abstract:

This paper focus on evaluation of behavior, damage and failure processes occurring during the loading cycles in the carbon fiber reinforced composite by acoustic emission method. Since acoustic emission is physical phenomenon that detects the released energy in form of waves spreading through the material due to stimulation of material by external or internal stress, it is possible to evaluate complex damage and failure processes. For that purpose, the standard and open holes tensile testing specimens with different number of plies were manufactured. Selected acoustic emission parameters were correlated with data obtained from mechanical test. Linear localization method together with signal analysis using Fast Fourier transform algorithm were used as another tool for detection and evaluation of spreading damage processes inside the composite during the load. Basic damage types inside the composite material were identified by metallographic analysis using light microscopy. More complex damage processes were observed on the fracture surface using stereomicroscopy and scanning electron microscopy.

• Periodical: Defect and Diffusion Forum (Volume 405)
• Pages: 205-211
• DOI: https://doi.org/10.4028/www.scientific.net/DDF.405.205
• Online since: November 2020
• Authors: Vladimír Mára*, Jan Krčil, Lenka Michalcová, Elena Čižmárová
• Keywords: Acoustic Emission, Composite, Damage, Fracture

References

[1] E.S. Greenhalgh, Failure analysis and fractography of polymer composites, 1st ed. Boca Raton, CRC Press, (2009).

[2] M.S. Kumar, et al., Fractographic analysis of tensile failures of aerospace grade composites, Materials Research 15 (2012) 990-997.

DOI: 10.1590/s1516-14392012005000141

[3] L. Zubillaga, A. Turon, J. Renart, J. Costa, P. Linde, An experimental study on matrix crack induced delamination in composite laminates, Composite Structures 127 (2015) 10-17.

DOI: 10.1016/j.compstruct.2015.02.077

[4] E. Maillet, Ch. Baker, G.N. Morscher, V.V. Pujar, J.R. Lemanski, Feasibility and limitations of damage identification in composite materials using acoustic emission, Composites Part A: Applied Science and Manufacturing 75 (2015) 77-83.

DOI: 10.1016/j.compositesa.2015.05.003

[5] V. Arumugam, S. Barath Kumar, C. Santulli, J. Stanley, Effect of fiber orientation in uni-directional glass epoxy laminate using acoustic emission monitoring, Acta Metalurgica Sinica (English Letters) 24 (2011) 351-364.

[6] L. Michalcova, M. Kadlec, Carbon/epoxy composite delamination analysis by acoustic emission method under various environmental conditions, Engineering Failure Analysis 69 (2016) 88-96.

DOI: 10.1016/j.engfailanal.2016.01.008

[7] T. Bohmann, M. Schlamp, I. Ehrlich. Acoustic emission of material damages in glass fiber-reinforced plastics, Composites Part B: Engineering 155 (2018) 444-451.

DOI: 10.1016/j.compositesb.2018.09.018

[8] V. Mára, Damage Analysis of Fiber Reinforced Composites using Acoustic Emission, Studentská tvůrčí činnost 2017. Praha: ČVUT v Praze - Fakulta strojní (2017) 1-5.
