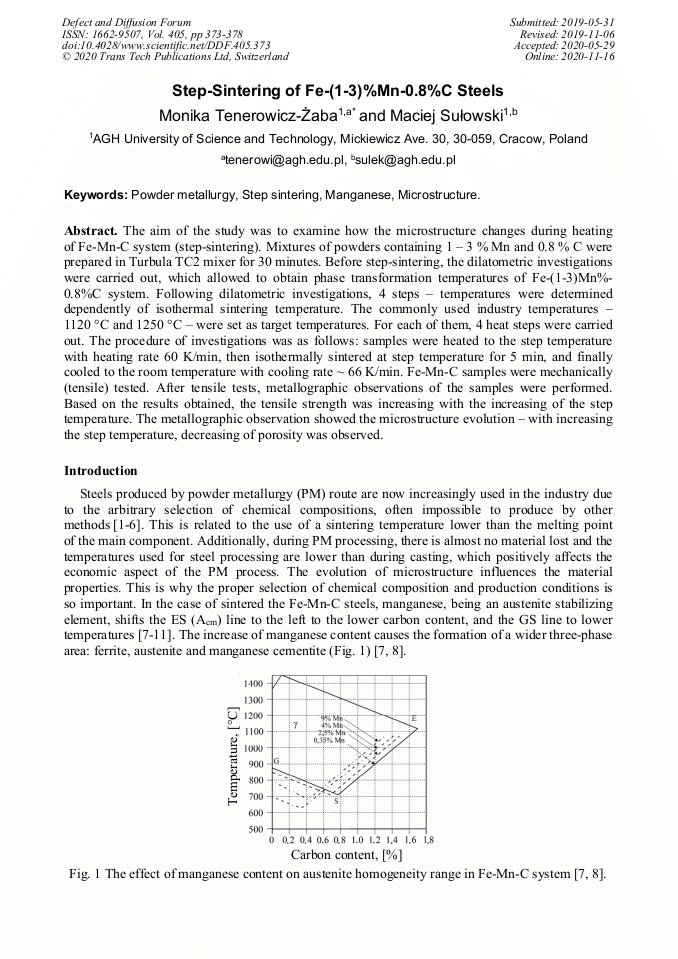

Step-Sintering of Fe-(1-3)%Mn-0.8%C Steels

Abstract:

The aim of the study was to examine how the microstructure changes during heating of Fe-Mn-C system (step-sintering). Mixtures of powders containing 1 – 3 % Mn and 0.8 % C were prepared in Turbula TC2 mixer for 30 minutes. Before step-sintering, the dilatometric investigations were carried out, which allowed to obtain phase transformation temperatures of Fe-(1-3)Mn%-0.8%C system. Following dilatometric investigations, 4 steps – temperatures were determined dependently of isothermal sintering temperature. The commonly used industry temperatures – 1120 °C and 1250 °C – were set as target temperatures. For each of them, 4 heat steps were carried out. The procedure of investigations was as follows: samples were heated to the step temperature with heating rate 60 K/min, then isothermally sintered at step temperature for 5 min, and finally cooled to the room temperature with cooling rate ~ 66 K/min. Fe-Mn-C samples were mechanically (tensile) tested. After tensile tests, metallographic observations of the samples were performed. Based on the results obtained, the tensile strength was increasing with the increasing of the step temperature. The metallographic observation showed the microstructure evolution – with increasing the step temperature, decreasing of porosity was observed.

• Periodical: Defect and Diffusion Forum (Volume 405)
• Pages: 373-378
• DOI: https://doi.org/10.4028/www.scientific.net/DDF.405.373
• Online since: November 2020
• Authors: Monika Tenerowicz-Żaba*, Maciej Sulowski
• Keywords: Manganese, Microstructure, Powder Metallurgy, Step Sintering

References

[1] H. Danninger et al., Powder Metallurgy 48 (2005) 23-32.

[2] E. Hryha, E. Dudrova, Application of Thermodynamics to Biological and Materials Science, vol. 22. InTech, Rijeka, Croatia, 573-602.

[3] E. Hryha, E. Dudrova, Mater. Sci. Forum 534-536 (2007) 761-764.

[4] E. Dudrova et al., Powder Metallurgy 53 (2010) 244-250.

[5] M. Gomez-Acebo et al., Computer Coupling of Phase Diagrams and Thermochemistry 27 (2003) 325-334.

[6] E. Hryha et al, Journal of Materials Processing Technology 212 (2012) 977-987.

[7] F. Staub, Metaloznawstwo, Śląskie Wydawnictwa Techniczne. Katowice. (1994).

[8] C.D. Desforges, W.E. Duckworth, T.F.J.N. Ryan, Manganese in ferrous metallurgy, Edited by The Manganese Centre, ISBN 2 901 109 004.

[9] T.B. Massalski, Binary alloy phase diagrams, American Society for Metals. Ohio. (1986).

[10] T. Malkiewicz, Metaloznawstwo stopów, Państwowe Wydawnictwa Naukowe. Łódź. (1978).

[11] M. Tenerowicz-Żaba., M. Sułowski, A comparison of mechanical properties and microstructures of PM steels with chemical compositions Fe-(1-3)%Mn-0.8%C, Science of Sintering 50, 4 (2018) 457-466.

DOI: 10.2298/sos1804457t
