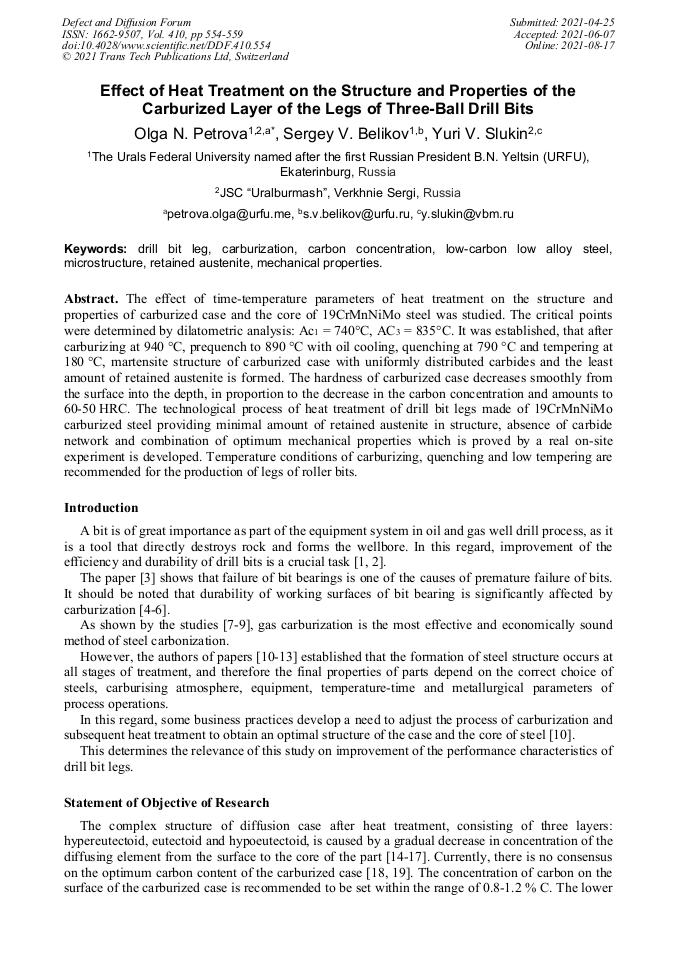

Effect of Heat Treatment on the Structure and Properties of the Carburized Layer of the Legs of Three-Ball Drill Bits

Abstract:

The effect of time-temperature parameters of heat treatment on the structure and properties of carburized case and the core of 19CrMnNiMo steel was studied. The critical points were determined by dilatometric analysis: Ac₁ = 740°C, AC₃ = 835°C. It was established, that after carburizing at 940 °C, prequench to 890 °C with oil cooling, quenching at 790 °C and tempering at 180 °C, martensite structure of carburized case with uniformly distributed carbides and the least amount of retained austenite is formed. The hardness of carburized case decreases smoothly from the surface into the depth, in proportion to the decrease in the carbon concentration and amounts to 60-50 HRC. The technological process of heat treatment of drill bit legs made of 19CrMnNiMo carburized steel providing minimal amount of retained austenite in structure, absence of carbide network and combination of optimum mechanical properties which is proved by a real on-site experiment is developed. Temperature conditions of carburizing, quenching and low tempering are recommended for the production of legs of roller bits.

• Periodical: Defect and Diffusion Forum (Volume 410)
• Pages: 554-559
• DOI: https://doi.org/10.4028/www.scientific.net/DDF.410.554
• Online since: August 2021
• Authors: Olga N. Petrova*, Sergey V. Belikov, Yuri V. Slukin
• Keywords: Carbon Concentration, Carburization, Drill Bit Leg, Low-Carbon Low Alloy Steel, Mechanical Properties, Microstructure, Retained Austenite

References

[1] N.D. Papsheva, O.M. Akushskaya, Increasing durability details of drill bits, Journal of Advanced Research in Technical Science. 5 (2017) 24-26.

[2] V.N. Vinogradov [et al.], Durability of Drill Bits, Nedra, Moscow, (2009).

[3] O.G. Blinkov, N.I. Serdyuk, Analysis of processes of deterioration of roller drill bits bearings, Construction of Onshore and Offshore Oil and Gas Wells. 4 (2017) 15-17.

[4] A.E. Panchenko [et al.], Enhancement of drill bit reliability, Modern Fundamental and Applied Research. 3 (2017) 12-16.

[5] V.S. Shestakov [et al.], Calculation of stress-strain state of a roller drill bit, Theory and Practice of World Science. 11 (2017) 50-53.

[6] K.K. Kombaev, B.A. Toktar, Innovations of increase in microhardness of drill bit steel by electron-plasma hardening, Achievements of Higher Education Science 2018, in: Collected Papers of the V International Scientific and Technical Competition, Penza, 2018, pp.17-22.

[7] Y.M. Lakhtin, B.N. Arzamasov, Thermochemical Treatment of Metals. Metallurgy, Moscow, (1985).

[8] E.I. Kirshchina, E.P. Pozdnyakov, Structure and properties of surface layers of 16CrMnS5 steel hardened by carburization, Gomel. (2017) 111-114.

[9] M.A. Balter, Strengthening of Machine Parts. Increase of Fatigue and Contact Strength, Mechanical Engineering, Moscow, (1968).

[10] N.S. Gerasimova, Thermochemical Treatment of Steels and Alloys, MSTU Publishing House, Kaluga, (2017).

[11] S.A. Bogdanov, [et al.], Quality of carburized components of drill equipment in various processes of thermochemical treatment, Mining Information and Analytical Bulletin. 2 (2003) 220-222.

[12] A.L. Valko, [et al.], Determination of depth of carburized case of chromium-nickel steels, Casting and Metallurgy. 35 (2012) 106-109.

[13] V.I. Astashchenko, Improvement of technology of carburizing of gear parts, in: New Technologies, Materials and Equipment of Russian Aerospace Industry: Report at All-Russian Conference, Kazan, 2018, pp.116-119.

[14] R. Zimmerman, K. Gunter, Metallurgy and Metal Science, Metallurgy, Moscow, (1982).

[15] Y.M. Lakhtin, V.P. Leontyeva, Materials Schience, ECOLIT, Moscow, (2011).

[16] M.L. Bernsteina, A.G. Rachstadt, Metal Science and Thermal Treatment of Steel. Volume II Basics of Thermal Treatment, Metallurgy, Moscow, (1983).

[17] V.B. Raitses, Technology of Thermochemical Treatment at Machine-Building Plants, Mechanical Engineering, Moscow, (1965).

[18] A.N. Minkevich, Thermochemical Treatment of Metals and Alloys, Mechanical Engineering, Moscow, (1965).

[19] Y.A. Bashnin, B.K. Ushakov, Technology of Thermal Treatment of Steel, Metallurgy, Moscow, (1986).

[20] M.D. Skryabin, A.A. Khlybov, Study of properties of carburized case of chromium-nickel steels, in: XVIII International Scientific and Technical Ural Workshop of Metallurgists - Young Scientists Ural School of Young Metallurgists,, Ekaterinburg, 2017, pp.17-20.

[21] M.V. Maisuradze [et al.], Structure formation at heat treatment of 25Mn2Si2Ni2Mo steel, in: Materials Science and Metallurgy: Reports of IV International Interactive Scientific and Practical Conference, Ekaterinburg, 2015, pp.314-316.

[22] V.S. Sagaradze, Increasing the Reliability of Carburized Parts, Mechanical Engineering, Moscow, (1975).

[23] Y. Koretsky, Carburization of Steel, Sudromgiz, Leningrad, (1962).

[24] A.I. Stepanov [et al.], Peculiarities of formation of structure and complex of mechanical properties of low-alloyed Cr-Mo-V Steel after austenitization in intercritical temperature range, Steel. 6 (2014) 86-90.

DOI: 10.3103/s0967091214060151
