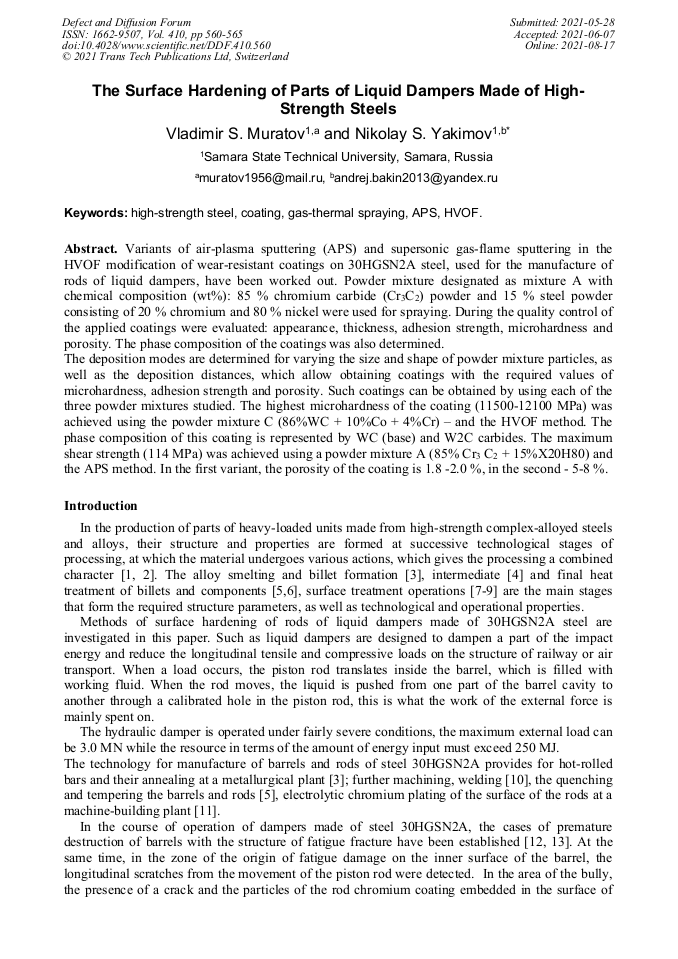

The Surface Hardening of Parts of Liquid Dampers Made of High-Strength Steels

Abstract:

Variants of air-plasma sputtering (APS) and supersonic gas-flame sputtering in the HVOF modification of wear-resistant coatings on 30HGSN2A steel, used for the manufacture of rods of liquid dampers, have been worked out. Powder mixture designated as mixture A with chemical composition (wt%): 85 % chromium carbide (Cr₃C₂) powder and 15 % steel powder consisting of 20 % chromium and 80 % nickel were used for spraying. During the quality control of the applied coatings were evaluated: appearance, thickness, adhesion strength, microhardness and porosity. The phase composition of the coatings was also determined. The deposition modes are determined for varying the size and shape of powder mixture particles, as well as the deposition distances, which allow obtaining coatings with the required values of microhardness, adhesion strength and porosity. Such coatings can be obtained by using each of the three powder mixtures studied. The highest microhardness of the coating (11500-12100 MPa) was achieved using the powder mixture C (86%WC + 10%Co + 4%Cr) – and the HVOF method. The phase composition of this coating is represented by WC (base) and W2C carbides. The maximum shear strength (114 MPa) was achieved using a powder mixture A (85% Cr₃ C₂ + 15%X20H80) and the APS method. In the first variant, the porosity of the coating is 1.8-2.0 %, in the second - 5-8 %.

• Periodical: Defect and Diffusion Forum (Volume 410)
• Pages: 560-565
• DOI: https://doi.org/10.4028/www.scientific.net/DDF.410.560
• Online since: August 2021
• Authors: Vladimir S. Muratov, Nikolay S. Yakimov*
• Keywords: APS, Coating, Gas-Thermal Spraying, High-Strength Steel, HVOF

References

[1] B. Cantor, H. Asseider, P. Grant, Aerospace Materials, CRC Press, (2001).

[2] W.D. Callister, Fundamentals of Materials Science and Engineering, JohnWiley&Sons. Inc., (2008).

[3] F.C. Campbell, Manufacturing Technology for Aerospace Structural Materials, Elsevier Ltd., (2006).

[4] S.R. Harisha, S. Sharma, U.A. Kini, M.C.G. Shankar, Study on spheroidization and related heat treatments of medium carbon alloy steels, MATEC Web of Conferences. 144 (2018) 02008.

DOI: 10.1051/matecconf/201814402008

[5] P. Rokicki, Induction hardening of tool steel for heavily loaded aircraft engine components, Arch. Metall. Mater. 62(1) (2017) 315-320.

DOI: 10.1515/amm-2017-0047

[6] S.D. Suna, D. Fabijanic, C. Barra, Q. Liud, K. Walkerd, N. Matthewse, N. Orchowskie, M. Eastona, M. Brandta, In-situ quench and tempering for microstructure control and enhanced mechanical properties of laser cladded AISI 420 stainless steel powder on 300M steel substrates, Surface & Coatings Technology. 333 (2018) 210-219.

DOI: 10.1016/j.surfcoat.2017.10.080

[7] J.M. Lourenço, S.Da Sun, K. Sharp, V. Luzin, A.N. Klein, C.H. Wang, M. Brandt, Fatigue and fracture behavior of laser clad repair of AerMet 100 ultra-high strength steel, International Journal of Fatigue. 85 (2016) 18-30.

DOI: 10.1016/j.ijfatigue.2015.11.021

[8] E. Hao, X. Zhao, Y. An, W. Deng, H. Zhou, J. Chen, The effect of pre-oxidation on microstructure, mechanical properties and high-temperature tribological behaviors of HVOF-sprayed NiCoCrAlYTa coating, Applied Surface Science. 489 (2019) 187-197.

DOI: 10.1016/j.apsusc.2019.05.334

[9] A.J. Abdalla, D. Santos, G. Vasconcelos, V.H. Baggio-Scheid, D.F. Silva, Changing in fatigue life of 300 M bainitic steel after laser carburizing and plasma nitriding, MATEC Web of Conferences. 165 (2018) 21002.

DOI: 10.1051/matecconf/201816521002

[10] M.C. Chaturvedi. Welding and Joining of Aerospace Materials, Woodhead Publishing, (2011).

[11] M.F. Montemor, Functional and smart coatings for corrosion protection: A review of recent advances, Surface & Coatings Technology. 258 (2014) 17-37.

DOI: 10.1016/j.surfcoat.2014.06.031

[12] B. Ilschner, K.C. Russel, Materials Reserch and Engineering, Springer-Verlag, Berlin, (1992).

[13] V.S. Muratov, N.S. Yakimov, Formation of structure and properties of 30HGSN2A steel at technological stages of manufacture of heavy-loaded parts, Blanking Productions in Mechanical Engineering. 18(5) (2020) 223-230.

DOI: 10.4028/www.scientific.net/ssp.316.324

[14] W. Deng, S. Li, G. Hou, X. Liu, X. Zhao, Y. An, H. Zhou, J. Chen, Comparative study on wear behavior of plasma sprayed Al2O3 coatings sliding against different counterparts, Ceramics International. 43(9) (2017) 6976-6986.

DOI: 10.1016/j.ceramint.2017.02.122

[15] D. Tejero-Martin, M.R. Rad, A. McDonald, T. Hussain, Beyond traditional coatings: a review on thermal-sprayed functional and smart coatings, Journal of Thermal Spray Technology. 28 (2019) 598-644.

DOI: 10.1007/s11666-019-00857-1

[16] L. Pawlowski, Finely grained nanometric and submicrometric coatings by thermal spraying: A review, Surface and Coatings Technology. 202 (2008) 4318-4322.

DOI: 10.1016/j.surfcoat.2008.04.004

[17] A. Verstak, V. Baranovski, Activated combustion HVAF coatings for protection against wear and high temperature corrosion, in: International Thermal Spray Conference; Advancing the Science and Applying the Technology, 2003, pp.535-542.

DOI: 10.31399/asm.cp.itsc2003p0535

[18] H. Kreye, A comparison of HVOF systems – behavior of materials and coating properties, in: 4th HVOF Colloquium at Erding/Munchen, Bavaria, 1997, pp.13-21.

[19] Fr.-W. Bach etc., Evaluation of modern HVOF systems concerning the application of hot corrosion protective coatings, in: Proc of ITSS'2003, China, 2003, pp.10-25.

[20] W. Rusch, Comparison of operating characteristics for gas and liquid fuel HVOF torches, in: International Thermal Spray Conference; Global Coating Solutions, 2007, pp.572-576.

DOI: 10.31399/asm.cp.itsc2007p0572
