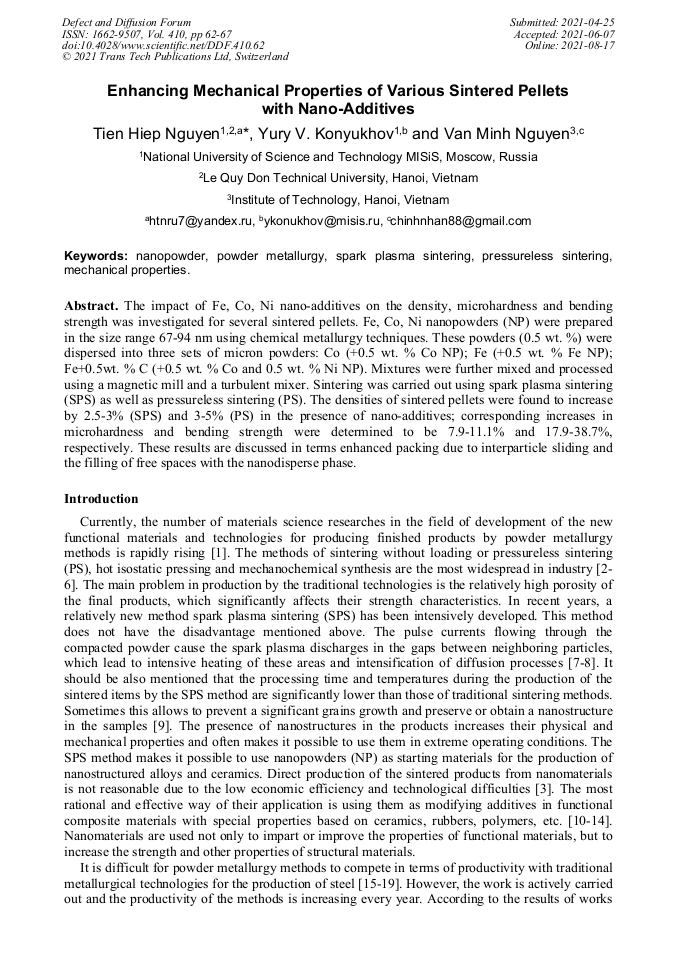

Enhancing Mechanical Properties of Various Sintered Pellets with Nano-Additives

Abstract:

The impact of Fe, Co, Ni nano-additives on the density, microhardness and bending strength was investigated for several sintered pellets. Fe, Co, Ni nanopowders (NP) were prepared in the size range 67-94 nm using chemical metallurgy techniques. These powders (0.5 wt. %) were dispersed into three sets of micron powders: Co (+0.5 wt. % Co NP); Fe (+0.5 wt. % Fe NP); Fe+0.5wt. % C (+0.5 wt. % Co and 0.5 wt. % Ni NP). Mixtures were further mixed and processed using a magnetic mill and a turbulent mixer. Sintering was carried out using spark plasma sintering (SPS) as well as pressureless sintering (PS). The densities of sintered pellets were found to increase by 2.5-3% (SPS) and 3-5% (PS) in the presence of nano-additives; corresponding increases in microhardness and bending strength were determined to be 7.9-11.1% and 17.9-38.7%, respectively. These results are discussed in terms enhanced packing due to interparticle sliding and the filling of free spaces with the nanodisperse phase.

• Periodical: Defect and Diffusion Forum (Volume 410)
• Pages: 62-67
• DOI: https://doi.org/10.4028/www.scientific.net/DDF.410.62
• Online since: August 2021
• Authors: Tien Hiep Nguyen*, Yury V. Konyukhov, Van Minh Nguyen
• Keywords: Mechanical Properties, Nanopowder, Powder Metallurgy, Pressureless Sintering, Spark Plasma Sintering

References

[1] P. Novák, Advanced powder metallurgy technologies, Materials. 13(7) (2020) 1742.

[2] A.M. Stolin, P.M. Bazhin, A.S. Konstantinov, et al, Production of large compact plates from ceramic powder materials by free shs compaction, Doklady Chemistry. 480 (2018) 136-138.

DOI: 10.1134/s0012500818060083

[3] K.B. Povarova, M.I. Alymov, O.S. Gavrilin, et al, Effect of the conditions of sintering W-Ni-Fe-Co heavy alloy nanopowders on the structure and density of compacted samples, Russian Metallurgy (Metally). 2007 (2007) 499-505.

DOI: 10.1134/s0036029507060109

[4] J.V. Eremeeva, S. Vorotilo, A.A. Gofman, V.Y. Lopatin, D.Y. Kovalev, Mechanochemical synthesis of Dy2TiO5 single-phase crystalline nanopowders and investigation of their properties, Inorganic Materials: Applied Research. 9(2) (2018) 291-296.

DOI: 10.1134/s2075113318020090

[5] Z.V. Eremeeva, L.V. Myakisheva, V.S. Panov, A.A. Nepapushev, D.A. Sidorenko, E.V. Apostolova, A.V. Lizunov, D.Y. Mishunin, Structure and properties of the boron carbide powder obtained by the mechanochemical synthesis of the carbon char and amorphous boron mix, Inorganic Materials: Applied Research. 10(1) (2019) 49-52.

DOI: 10.1134/s2075113319010088

[6] Z.V. Eremeeva, V.S. Panov, L.V. Myakisheva, A.A. Nepapushev, D.A. Sidorenko, A.V. Pavlik, E.V. Apostolova, A.I. Lizunov, Structure and properties of dysprosium titanate powder produced by the mechanochemical method, Russian Journal of Non-Ferrous Metals. 59(3) (2018) 304-310.

DOI: 10.3103/s1067821218030045

[7] M. Tokita, Recent and future progress on advanced ceramics sintering by Spark Plasma Sintering, Nanotechnologies in Russia. 10(3-4) (2015) 261-267.

DOI: 10.1134/s1995078015020202

[8] A.E. Kudryashov, Z.V. Eremeeva, E.A. Levashov, V.Y. Lopatin, A.V. Sevostyanova, E.I. Zamulaeva, On the application of carbon-containing electrode materials in electrospark alloying technology. Part 2. Structure and properties of two-layer coatings, Surface Engineering and Applied Electrochemistry. 54(6) (2018) 535-545.

DOI: 10.3103/s1068375518060078

[9] F. Naimi, L. Minier, S. Le Gallet, H. Couque, F. Bernard, Dense nanostructured nickel produced by SPS from mechanically activated powders: Enhancement of mechanical properties, Journal of Nanomaterials. 2013 (2013) 674843.

DOI: 10.1155/2013/674843

[10] I. Burmistrov, N. Gorshkov, N. Kovyneva, E. Kolesnikov, B. Khaidarov, G. Karunakaran, E.-B. Cho, N. Kiselev, D. Artyukhov, D. Kuznetsov, A. Gorokhovsky, High seebeck coefficient thermo-electrochemical cell using nickel hollow microspheres electrodes, Renewable Energy. 157 (2020) 1-8.

DOI: 10.1016/j.renene.2020.04.001

[11] I. Burmistrov, N. Kovyneva, N. Gorshkov, A. Gorokhovsky, A. Durakov, D. Artyukhov, N. Kiselev, Development of new electrode materials for thermo-electrochemical cells for waste heat harvesting, Renewable Energy Focus. 29 (2019) 42-48.

DOI: 10.1016/j.ref.2019.02.003

[12] N.V. Gorshkov, V.G. Goffman, M.A. Vikulova, I.N. Burmistrov, A.V. Kovnev, A.V. Gorokhovsky, Dielectric properties of the polymer-matrix composites based on the system of Co-modified potassium titanate-polytetrafluorethylene, Journal of Composite Materials. 52 (2017) 135-144.

DOI: 10.1177/0021998317703692

[13] I. Burmistrov, N. Gorshkov, S. Anshin, E. Kolesnikov, K. Kuskov, I. Ilinykh, J. Issi, M. Vikulova, D. Kuznetsov, Enhancement of percolation threshold by controlling the structure of composites based on nanostructured carbon filler, Journal of Electronic Materials. 48(8) (2019) 5111-5118.

DOI: 10.1007/s11664-019-07287-3

[14] N. Gorshkov, M. Vikulova, M. Gorbunov, D. Mikhailova, I. Burmistrov, N. Kiselev, D. Artyukhov, A. Gorokhovsky, Synthesis of the hollandite-like copper doped potassium titanate high-k ceramics, Ceramics International. 47(4) (2021) 5721-5729.

DOI: 10.1016/j.ceramint.2020.10.158

[15] V.N. Shinkin, Simplified calculation of the bending torques of steel sheet and the roller reaction in a straightening machine, Steel in Translation. 47(10) (2017) 639-644.

DOI: 10.3103/s0967091217100072

[16] V.N. Shinkin, Failure of large-diameter steel pipe with rolling scabs, Steel in Translation. 47(6) (2017) 363-368.

DOI: 10.3103/s0967091217060109

[17] V.N. Shinkin, Arithmetical method of calculation of power parameters of 2N-roller straightening machine under flattening of steel sheet, CIS Iron and Steel Review. 14 (2017) 22-27.

DOI: 10.17580/cisisr.2017.02.05

[18] V.N. Shinkin, Springback coefficient of the main pipelines' steel large-diameter pipes under elastoplastic bending, CIS Iron and Steel Review. 14 (2017) 28-33.

DOI: 10.17580/cisisr.2017.02.06

[19] V.N. Shinkin, Asymmetric three-roller sheet-bending systems in steel-pipe production, Steel in Translation. 47(4) (2017) 235-240.

DOI: 10.3103/s0967091217040106

[20] V.S. Panov, J.V. Eremeeva, G.V. Miheev, R.A. Scoricov, G.H. Sharipzyanova, U.S. Ter-Vaganyants, Influence of nanosize particles and methods of mixing on mechanical abilities of SP-70 powder steel, Inorganic Materials: Applied Research. 7(2) (2016) 251-260.

DOI: 10.1134/s2075113316020155

[21] E.V. Simonova, Z.V. Eremeeva, V.Y. Lopatin, Y.Y. Kaplanskii, Effect of nanosize strengthening particles on the structure of aluminum-based composite materials, Metallurgist. 60(1-2) (2016) 103-111.

DOI: 10.1007/s11015-016-0259-x

[22] V.V. Mironov, L.E. Agureev, Z.V. Eremeeva, V.I. Kostikov, Effect of small additions of alumina nanoparticles on the strength characteristics of an aluminum material, Doklady Physical Chemistry. 481 (2018) 110-113.

DOI: 10.1134/s001250161808002x
