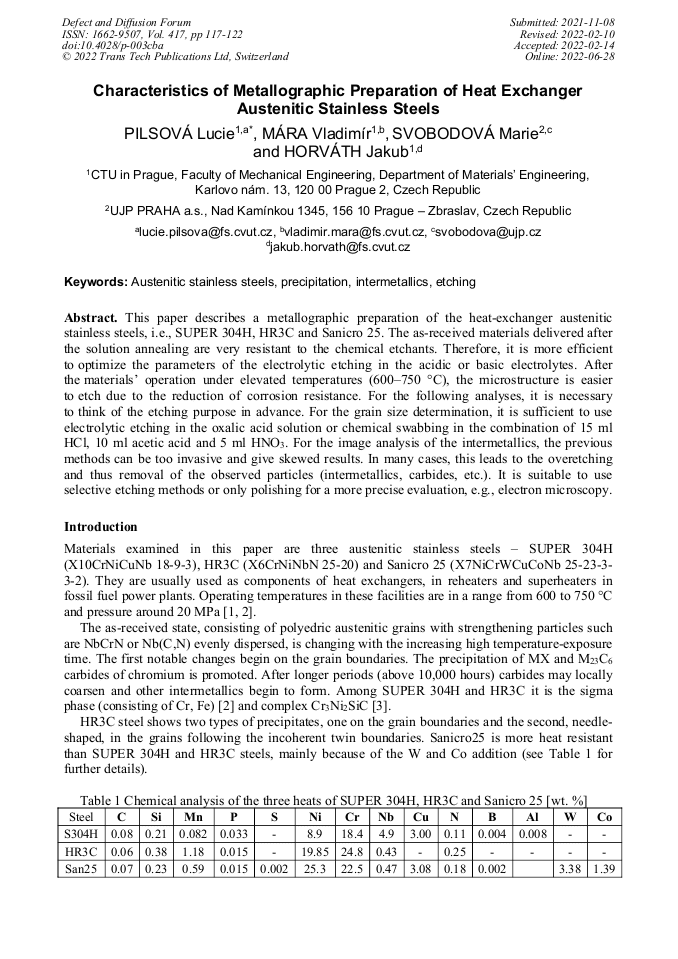

Characteristics of Metallographic Preparation of Heat Exchanger Austenitic Stainless Steels

Abstract:

This paper describes a metallographic preparation of the heat-exchanger austenitic stainless steels, i.e., SUPER 304H, HR3C and Sanicro 25. The as-received materials delivered after the solution annealing are very resistant to the chemical etchants. Therefore, it is more efficient to optimize the parameters of the electrolytic etching in the acidic or basic electrolytes. After the materials’ operation under elevated temperatures (600–750 °C), the microstructure is easier to etch due to the reduction of corrosion resistance. For the following analyses, it is necessary to think of the etching purpose in advance. For the grain size determination, it is sufficient to use electrolytic etching in the oxalic acid solution or chemical swabbing in the combination of 15 ml HCl, 10 ml acetic acid and 5 ml HNO₃. For the image analysis of the intermetallics, the previous methods can be too invasive and give skewed results. In many cases, this leads to the overetching and thus removal of the observed particles (intermetallics, carbides, etc.). It is suitable to use selective etching methods or only polishing for a more precise evaluation, e.g., electron microscopy.

• Periodical: Defect and Diffusion Forum (Volume 417)
• Pages: 117-122
• DOI: https://doi.org/10.4028/p-003cba
• Online since: June 2022
• Authors: Lucie Pilsová*, Vladimír Mára, Marie Svobodová, Jakub Horváth
• Keywords: Austenitic Stainless Steels, Etching, Intermetallics, Precipitation

References

[1] J. Zurek, S.-M. Yang, D.-Y. Lin, Microstructural stability and oxidation behavior of Sanicro 25 during long‐term steam exposure, Materials and Corrosion, 66 (2015) 315-327.

DOI: 10.1002/maco.201407901

[2] M. Vach, T. Kuníková, M. Dománková, Evolution of secondary phases in austenitic stainless steels during long-term exposures, Materials Characterization, 59 (2008) 1782-1798.

DOI: 10.1016/j.matchar.2008.04.009

[3] T.-S. Cao, C.-Q. Cheng, J. Zhao, Precipitation Behavior of σ Phase in Ultra‑Supercritical Boiler Applied HR3C Heat‑Resistant Steel, Acta Metallurgica Sinica, 59 (2019).

DOI: 10.1007/s40195-019-00878-3

[4] Buehler, SumMet: A Guide to Materials Preparation and Analysis, fourth ed., Buehler, Illinois, (2018).

[5] A. F. Padilha, P. R. Rios, Decomposition of Austenite in Austenitic Stainless Steels, ISIJ International, 42 (2002) 325-337.

DOI: 10.2355/isijinternational.42.325
