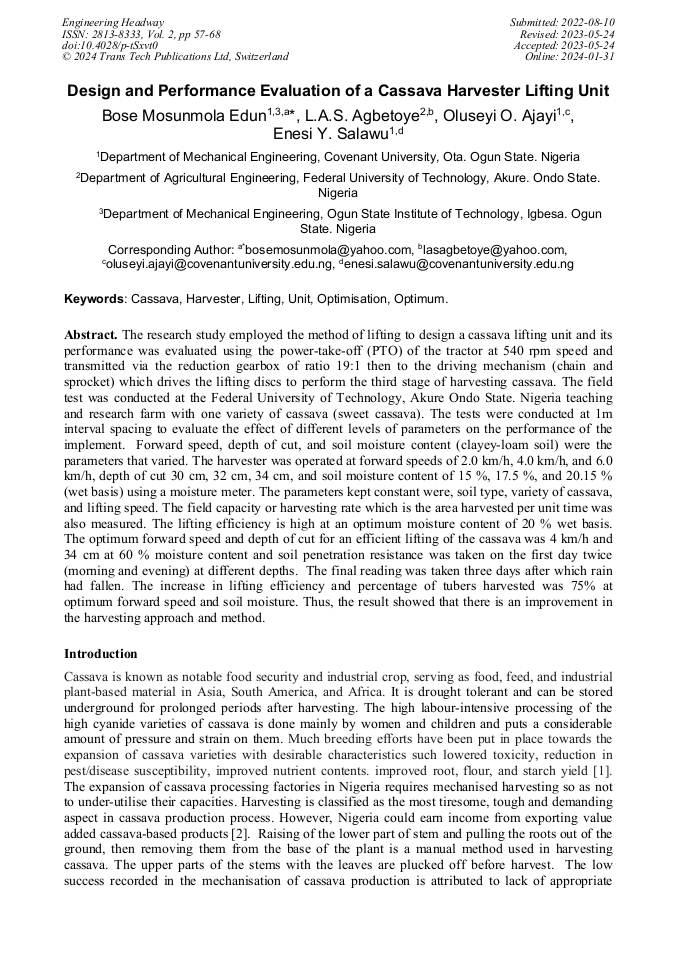

Design and Performance Evaluation of a Cassava Harvester Lifting Unit

Abstract:

The research study employed the method of lifting to design a cassava lifting unit and its performance was evaluated using the power-take-off (PTO) of the tractor at 540 rpm speed and transmitted via the reduction gearbox of ratio 19:1 then to the driving mechanism (chain and sprocket) which drives the lifting discs to perform the third stage of harvesting cassava. The field test was conducted at the Federal University of Technology, Akure Ondo State. Nigeria teaching and research farm with one variety of cassava (sweet cassava). The tests were conducted at 1m interval spacing to evaluate the effect of different levels of parameters on the performance of the implement. Forward speed, depth of cut, and soil moisture content (clayey-loam soil) were the parameters that varied. The harvester was operated at forward speeds of 2.0 km/h, 4.0 km/h, and 6.0 km/h, depth of cut 30 cm, 32 cm, 34 cm, and soil moisture content of 15 %, 17.5 %, and 20.15 % (wet basis) using a moisture meter. The parameters kept constant were, soil type, variety of cassava, and lifting speed. The field capacity or harvesting rate which is the area harvested per unit time was also measured. The lifting efficiency is high at an optimum moisture content of 20 % wet basis. The optimum forward speed and depth of cut for an efficient lifting of the cassava was 4 km/h and 34 cm at 60 % moisture content and soil penetration resistance was taken on the first day twice (morning and evening) at different depths. The final reading was taken three days after which rain had fallen. The increase in lifting efficiency and percentage of tubers harvested was 75% at optimum forward speed and soil moisture. Thus, the result showed that there is an improvement in the harvesting approach and method. Keywords: Cassava, Harvester, Lifting, Unit, Optimisation, Optimum. Corresponding Author: [e-mail]

• Periodical: Engineering Headway (Volume 2)
• Pages: 57-68
• DOI: https://doi.org/10.4028/p-tSxvt0
• Online since: January 2024
• Authors: Bose Mosunmola Edun*, L.A.S. Agbetoye, Oluseyi O. Ajayi, Enesi Y. Salawu
• Keywords: Cassava, Harvester, Lifting, Optimisation, Optimum, Unit

References

[1] O. Ayetigbo, S. Latif, A. Abass, & J. Müller, (2018). Comparing characteristics of root, flour and starch of biofortified yellow-flesh and white-flesh cassava variants, and sustainability considerations: A review. Sustainability, 10(9), 3089.

DOI: 10.3390/su10093089

[2] T. A. Adeyemo, & V. O. Okoruwa, (2018). Value Addition and Productivity Differentials in the Nigerian Cassava System. Sustainability, 10(12), 4770.

DOI: 10.3390/su10124770

[3] S. Y Atsyo, C. Korkmaz, O. B Ozluoymak, & E. Guzel, (2020). A review of physical and mechanical properties of cassava related to harvesting machines. Int J Sci Technol, 6, 102-118.

[4] T. Buyinza, & L. Kitinoja, (2018). Commodity Systems Assessment of Cassava in Uganda.

[5] C. K. Kakwu, (2018). Parboiling and Soaking of Cassava to Reduce Cyanide Contents Of Crisps (Doctoral dissertation, University of Nairobi).

[6] T. Yezekyan, F.Marinello, G. Armentano, S. Trestini, , & L. Sartori, (2020). Modelling of harvesting machines' technical parameters and prices. Agriculture, 10(6), 194.

DOI: 10.3390/agriculture10060194

[7] N. Akram, M. W Akram, & W. Hongshu, (2020). Study on the socioeconomic factors affecting adoption of agricultural machinery. Journal of Economics and Sustainable Development, 11(3).

[8] O.D. Isinkaye, O.O. Koyenikan, & T. Osadare, (2021). Development of a Cassava Harvester. Development, 4(1), 12-21.

[9] C. A. Alesso, P. A. Cipriotti, M. J. Masola, M. E. Carrizo, S. C. Imhoff, L. Rocha-Meneses, & D. L. Antille, (2020). Spatial distribution of soil mechanical strength in a controlled traffic farming system as determined by cone index and geostatistical techniques.

[10] V. Kumar, V. Bector, & M. Singh, (2022). Stress analysis of the critical components of the hydraulically operated soil sensor system for measuring soil compaction and electrical conductivity of soil using finite element method (FEM). Measurement: Sensors, 100367.

DOI: 10.1016/j.measen.2022.100367

[11] S. R. Chinnu, M. Favazil, C. Rachana, & P.R. Jayan, (2018). Development and Testing of Mini Tractor Operated Coleus Digger (Doctoral dissertation, Department of Farm Power and Machinery).

[12] M.A. Anikwe, & E.E. Ikenganyia, (2018). Ecophysiology and production principles of cassava (Manihot species) in Southeastern Nigeria. Cassava. Sidney, Australian College of Business & Technology, 105-122.

DOI: 10.5772/intechopen.70828

[13] A. Cherian, & A. J. Sabu, DESIGN OF CASSAVA UPROOTING DEVICE.

[14] L.A.S. AGBETOYE, (2016). Mechanized Agriculture: A Route to Enhanced Food Security.

[15] S. PATEL, & P.R. Jayan, (2021). Design Analysis of a Manual Cassava Harvesting Tool (Doctoral dissertation, DEPARTMENT OF FARM MACHINERY AND POWER ENGINEERING).

[16] S.R. Chinnu, M. Favazil, C. Rachana, & P. R Jayan, (2018). Development and Testing of Mini Tractor Operated Coleus Digger (Doctoral dissertation, Department of Farm Power and Machinery).

[17] S.K. Amponsah, A. Addo, & B. Gangadharan, (2018). Review of various harvesting options for cassava. Cassava, 291.

DOI: 10.5772/intechopen.71350

[18] I. A. Ola, A. F. Adisa, I. L. Ubaka-Ojogwu, J. O. Solomon, J. A. Ojediran, & E. S. A. Ajisegiri, (2019). Performance Evaluation of Selected Cassava Roots Harvesters. Journal of Engineering Research, 24(1), 40-52.

[19] A. S. Phyo, C. M. Grunbuhel, L. Williams, & S. S Htway, (2009, November). Does Selective Mechanisation Make up for Labour Shortages in Rural Myanmar?.In IOP Conference Series: Earth and Environmental Science (Vol. 338, No. 1, p.012010). IOP Publishing.

DOI: 10.1088/1755-1315/338/1/012010

[20] J.O. Dirisu, A.A. Asere, J.A. Oyekunle, B.Z. Adewole, O.O. Ajayi, S.A. Afolalu, O.O. Joseph, & A.A. Abioye, (2017). Comparison of the Elemental Structure and Emission Characteristics of Selected PVC and Non PVC Ceiling Materials Available in Nigerian Markets. International Journal of Applied Engineering Research. 12(23), 13755-13758.

DOI: 10.1166/mat.2018.1544

[21] M.A. Fajobi, A.A. Abioye, O. P. Abioye, O. O. Ajayi, S. A. Afolalu, and P. O. Atanda, Mechanical and Microstructural Characterization of Ductile Iron Produced from Fuel- Fired Rotary Furnace, International Journal of Mechanical Engineering and Technology 9(1), 2018. p.694–704

[22] E.Y. Salawu, I.P. Okokpujie, S.A. Afolalu, O.O. Ajayi, and J. Azeta, 2018. Investigation of Production Output for Improvement. International Journal of Mechanical and Production Engineering Research and Development, 8(1), pp.915-922

[23] I.P. Okokpujie, S.A. Afolalu, A. A. Abioye, J. O. Dirisu, O. O. Ajayi, & O. R. Adetunji, (2018, April). Investigation of wear land and rate of locally made HSS cutting tool. In AIP Conference Proceedings (Vol. 1957, No. 1, p.050002). AIP Publishing.

DOI: 10.1063/1.5034332

[24] Islamov, S., Grigoriev, A., Beloglazov, I., Savchenkov, S., & Gudmestad, O. T. (2021). Research risk factors in monitoring well drilling—A case study using machine learning methods. Symmetry, 13(7), 1293.

DOI: 10.3390/sym13071293

[25] A. Jaguljnjak Lazarević, M. Uroš, & A. Čengija, (2017). Fundamental models of structural stability. Rudarsko-geološko-naftni zbornik, 32(2), 37-46.

DOI: 10.17794/rgn.2017.2.5

[26] I.P. Okokpujie, S.A. Afolalu, O.P. Abioye, E.Y. Salawu, A.A. Abioye, O.A. Omotosho, & O.O. Ajayi, (2018, April). Impact of heat treatment on HSS cutting tool (ASTM A600) and its behavior during machining of mild steel (ASTM A36). In AIP Conference Proceedings (Vol. 1957, No. 1, p.050003). AIP Publishing.

DOI: 10.1063/1.5034333

[27] I.P. Okokpujie, S.A. Afolalu, E.Y. Salawu, A.A. Abioye, O.P. Abioye, & Ikumapayi, O. M. (2018, April). Study of the performances of nano-case treatment cutting tools on carbon steel work material during turning operation. In AIP Conference Proceedings (Vol. 1957, No. 1, p.050001). AIP Publishing.

DOI: 10.1063/1.5034331

[28] M.O. Udo, D.E. Esezobor, F.I. Apeh, & A. S. Afolalu, (2018). Factors Affecting Ballability of Mixture Iron Ore Concentrates and Iron Oxide Bearing Wastes in Metallurgical Processing. Journal of Ecological Engineering Vol, 19, 3.

DOI: 10.12911/22998993/86158

[29] E. Navas, R. Fernandez, D. Sepúlveda, M. Armada, & P. Gonzalez-de-Santos, (2020). A design criterion based on shear energy consumption for robotic harvesting tools. Agronomy, 10(5), 734.

DOI: 10.3390/agronomy10050734

[30] A. Berg, & J. Sheffield, (2018). Climate change and drought: the soil moisture Perspective. Current Climate Change Reports, 4(2), 180-191.

DOI: 10.1007/s40641-018-0095-0

[31] P. Catania, L. Badalucco, V. A. Laudicina, & M. Vallone, (2018). Effects of tilling methods on soil penetration resistance, organic carbon and water-stable aggregates in a vineyard of the semiarid Mediterranean environment. Environmental Earth Sciences, 77(9), 1-9.

DOI: 10.1007/s12665-018-7520-5
