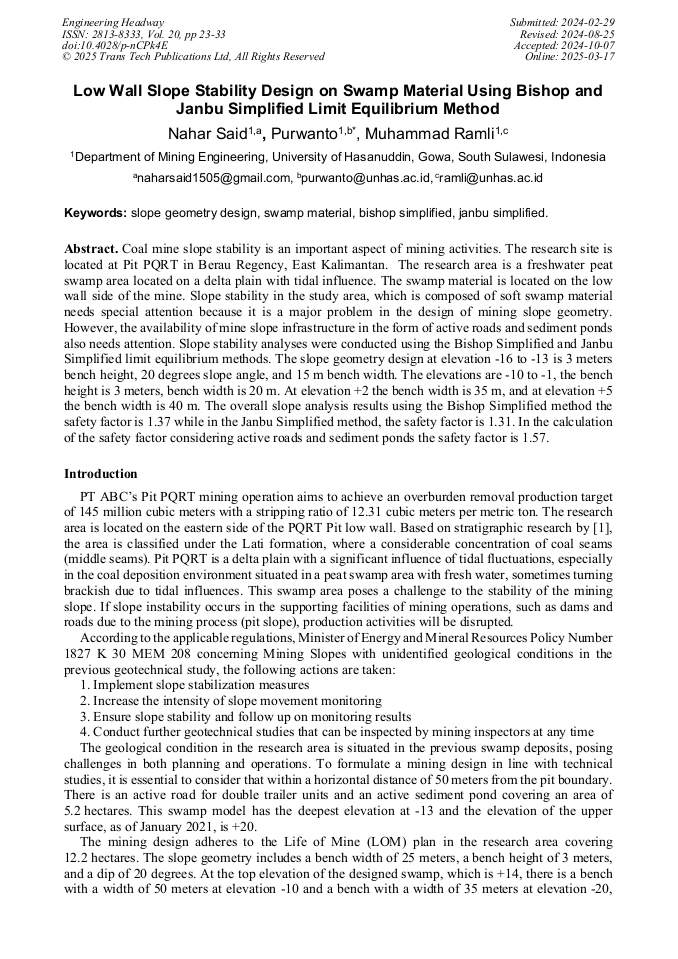

Low Wall Slope Stability Design on Swamp Material Using Bishop and Janbu Simplified Limit Equilibrium Method

Abstract:

Coal mine slope stability is an important aspect of mining activities. The research site is located at Pit PQRT in Berau Regency, East Kalimantan. The research area is a freshwater peat swamp area located on a delta plain with tidal influence. The swamp material is located on the low wall side of the mine. Slope stability in the study area, which is composed of soft swamp material needs special attention because it is a major problem in the design of mining slope geometry. However, the availability of mine slope infrastructure in the form of active roads and sediment ponds also needs attention. Slope stability analyses were conducted using the Bishop Simplified and Janbu Simplified limit equilibrium methods. The slope geometry design at elevation-16 to-13 is 3 meters bench height, 20 degrees slope angle, and 15 m bench width. The elevations are-10 to-1, the bench height is 3 meters, bench width is 20 m. At elevation +2 the bench width is 35 m, and at elevation +5 the bench width is 40 m. The overall slope analysis results using the Bishop Simplified method the safety factor is 1.37 while in the Janbu Simplified method, the safety factor is 1.31. In the calculation of the safety factor considering active roads and sediment ponds the safety factor is 1.57.

• Periodical: Engineering Headway (Volume 20)
• Pages: 23-33
• DOI: https://doi.org/10.4028/p-nCPk4E
• Online since: March 2025
• Authors: Nahar Said Said, Purwanto Purwanto*, Muhammad Ramli
• Keywords: Bishop Simplified, Janbu Simplified, Slope Geometry Design, Swamp Material

References

[1] Eveny, Offy Nur. 2014. Comparison of Bishop, Janbu, and Spencer Method in Slope Stability Calculation in Tuff Rock. S.T., Universitas Pembangunan Nasional "Veteran" Yogyakarta.

[2] Maryanto, Sigit. 2011. Stratigraphy and Coal Presence in Lati Formation in Berau Area, East Kalimantan. Geological Resources Bulletin Volume 6 Number 2, PP 105-106.

[3] Arif, Irwandy. 2021. Mine Geotechnics. Second edition. Jakarta. Indonesian Mining Institute.

[4] Hoek and Bray, J.,1981, Rock Slope Engineering 4rd Ed., The Institution of Mining and Metallurgy, London Pg. 176-189.

[5] Academia. 2005. Understanding Design according to bin Ladjamudin. [Online]. [Accessed 4 Jan 2023]. AvailablFrom:https://www.academia.edu/9308770/Pengertian_perancangan_menurut_bin_Ladjamudin.

[6] Aprilia, J. Muslim, D. Zakaria, Z. Tedy, O. 2019. Evaluation of the slope stability of the Pit 'XY' coal mine using the boundary equilibrium method of PT. Bukit Asam Tbk. Padjadjaran geoscience journal. pp.177-178.

[7] Metriani, R. Anaperta, Y.M. Saldy, T.G. 2018. Reverse analysis of slope stability using the simplified bishop method on the existing front II quarry of PT. Semen Padang, West Sumatra. Journal of mine development. 4(4), pp.50-51.

[8] Simarmata, B.P. Saptono, S. 2021. Slope stability analysis based on kinematic, empirical, and boundary equilibrium methods: a case study of the Southeast slope of Sermo Kulon Progo Reservoir. Proceedings of the National Seminar on Science & Technology Applications. Pp D-45.

[9] Zulfahmi. 2011. Analysis of the stability of dikes, swamp drained, and mine slopes to support coal mining operations in Berau, East Kalimantan. Journal of mineral and coal technology. 7 (4), pp.157-173.

[10] Arsyad, F. Anaperta, Y.M. 2021. Analysis of the stability of the mining slope using the Janbu method using slide 6.0 software in the West pit area of PT. Allied Indo Coal Jaya, Sawalunto city, West Sumatra. 6 (2).
