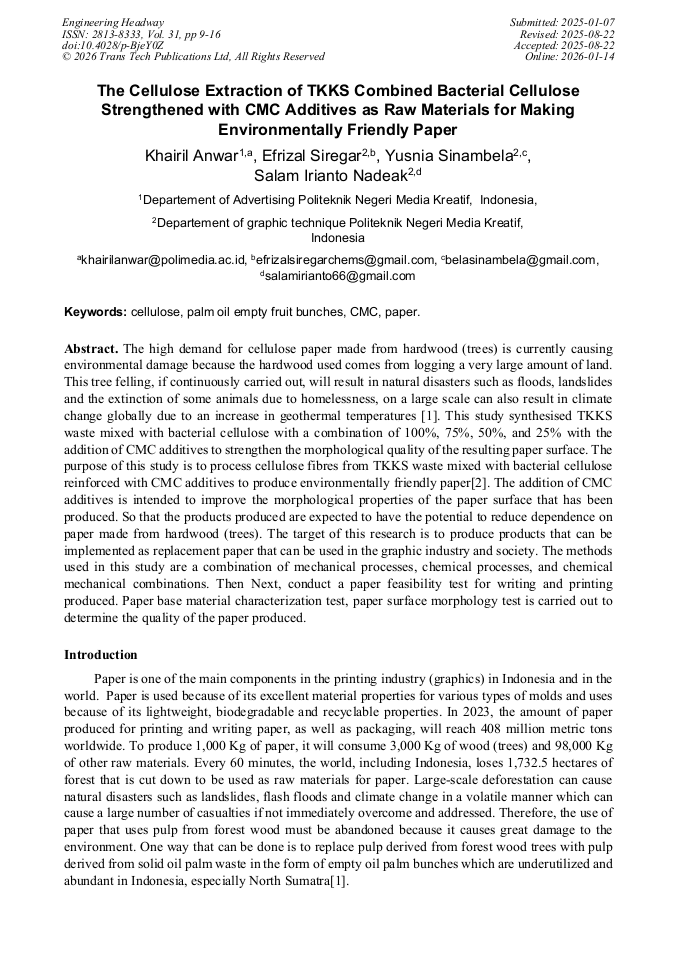

The Cellulose Extraction of TKKS Combined Bacterial Cellulose Strengthened with CMC Additives as Raw Materials for Making Environmentally Friendly Paper

Abstract:

The high demand for cellulose paper made from hardwood (trees) is currently causing environmental damage because the hardwood used comes from logging a very large amount of land. This tree felling, if continuously carried out, will result in natural disasters such as floods, landslides and the extinction of some animals due to homelessness, on a large scale can also result in climate change globally due to an increase in geothermal temperatures. This study synthesised TKKS waste mixed with bacterial cellulose with a combination of 100%, 75%, 50%, and 25% with the addition of CMC additives to strengthen the morphological quality of the resulting paper surface. The purpose of this study is to process cellulose fibres from TKKS waste mixed with bacterial cellulose reinforced with CMC additives to produce environmentally friendly paper. The addition of CMC additives is intended to improve the morphological properties of the paper surface that has been produced. So that the products produced are expected to have the potential to reduce dependence on paper made from hardwood (trees). The target of this research is to produce products that can be implemented as replacement paper that can be used in the graphic industry and society. The methods used in this study are a combination of mechanical processes, chemical processes, and chemical mechanical combinations. Then Next, conduct a paper feasibility test for writing and printing produced. Paper base material characterization test, paper surface morphology test is carried out to determine the quality of the paper produced.

• Periodical: Engineering Headway (Volume 31)
• Pages: 9-16
• DOI: https://doi.org/10.4028/p-BjeY0Z
• Online since: January 2026
• Authors: Khairil Anwar*, Efrizal Siregar, Yusnia Sinambela, Salam Irianto Nadeak
• Keywords: Bacterial Cellulose, Cellulose, Paper, TKKS

References

[1] C. L. Yiin et al., "Recovery of cellulose fibers from oil palm empty fruit bunch for pulp and paper using green delignification approach," Bioresour. Technol., vol. 290, no. June, hal. 121797, 2019.

DOI: 10.1016/j.biortech.2019.121797

[2] V. Raghavendran, E. Asare, dan I. Roy, Bacterial cellulose: Biosynthesis, production, and applications, 1 ed., vol. 77. Elsevier Ltd., 2020.

DOI: 10.1016/bs.ampbs.2020.07.002

[3] E. Derman, R. Abdulla, H. Marbawi, dan M. K. Sabullah, "Oil palm empty fruit bunches as a promising feedstock for bioethanol production in Malaysia," Renew. Energy, vol. 129, hal. 285–298, 2018.

DOI: 10.1016/j.renene.2018.06.003

[4] P. Siagian dan M. E. Dalimunthe, "Pengaruh Tabir Filter Film Terhadap Tegangan Output Solar Sel Jenis Polycrystalline," J. Sains, Teknol. dan Ind., vol. 19, no. 2, hal. 414–418, 2022.

[5] S. Gea, N. Panindia, A. F. Piliang, A. Sembiring, dan Y. A. Hutapea, "All-cellulose composite isolated from oil palm empty fruit bunch," J. Phys. Conf. Ser., vol. 1116, no. 4, 2018.

DOI: 10.1088/1742-6596/1116/4/042013

[6] S. Gea, Z. Zulfahmi, D. Yunus, A. Andriayani, dan Y. A. Hutapea, "The Isolation of Nanofibre Cellulose from Oil Palm Empty Fruit Bunch Via Steam Explosion and Hydrolysis with HCl 10%," J. Phys. Conf. Ser., vol. 979, no. 1, 2018.

DOI: 10.1088/1742-6596/979/1/012063

[7] efrizal siregar, parningotan simamora, dan Y. Sinambela, "Characterization Of Organic Ink From Hydrochar-Based Cellulose Synthesis Of Durian Skin Waste Reinforced By Acasia Substance As Printing Ink Printing," hal. 1–7, 2022.

DOI: 10.4108/eai.16-11-2022.2326061

[8] N. Liyana, I. Zailuddin, dan S. Husseinsyah, "Tensile Properties and Morphology of Oil Palm Empty Fruit Bunch Regenerated Cellulose Biocomposite Films," Procedia Chem., vol. 19, hal. 366–372, 2016.

DOI: 10.1016/j.proche.2016.03.025

[9] L. Ni'Mah, M. F. Setiawan, dan S. P. Prabowo, "Utilization of Waste Palm Kernel Shells and Empty Palm Oil Bunches as Raw Material Production of Liquid Smoke," IOP Conf. Ser. Earth Environ. Sci., vol. 366, no. 1, 2019.

DOI: 10.1088/1755-1315/366/1/012032

[10] A. Shafqat, N. Al-Zaqri, A. Tahir, dan A. Alsalme, "Synthesis and characterization of starch based bioplatics using varying plant-based ingredients, plasticizers and natural fillers," Saudi J. Biol. Sci., vol. 28, no. 3, hal. 1739–1749, 2021.

DOI: 10.1016/j.sjbs.2020.12.015

[11] N. Syahindah, S. Nor, A. Djalaluddin, dan S. Yusuff, "Empty Fruit Bunch-Seaweed Biocomposite as Potential Soil Erosion Mitigation Material for Oil Palm Plantation," vol. 14, no. 3, hal. 5438–5450, 2019.

DOI: 10.15376/biores.14.3.5438-5450

[12] A. Thompson, K. Oberhagemann, dan Y. She, "Geotextiles and Geomembranes Geobag stability for riverbank erosion protection structures : Physical model study," Geotext. Geomembranes, vol. 48, no. 1, hal. 110–119, 2020.

DOI: 10.1016/j.geotexmem.2019.103526

[13] E. Moohan, J., Stewart, S.A., Espinosa, E., Rosal, A., Rodríguez, A., Larra˜neta, "Cellulose nanofibers and other biopolymers for biomedical applications," A Rev. Appl. Sc, vol. 10, hal. 65, 2020.

DOI: 10.3390/app10010065

[14] M. Shahrulzaman dan H. Harun, "Performance of Magnetic Palm Oil Empty Fruit Bunch Biochar for Removal of Waste Cooking Oil," Prog. Eng. Appl. Technol., vol. 2, no. 2, hal. 65–74, 2021.
