Strength Analysis of N219 Seaplane Floats with Aluminium Foam Sandwich Material Using Finite Element Method

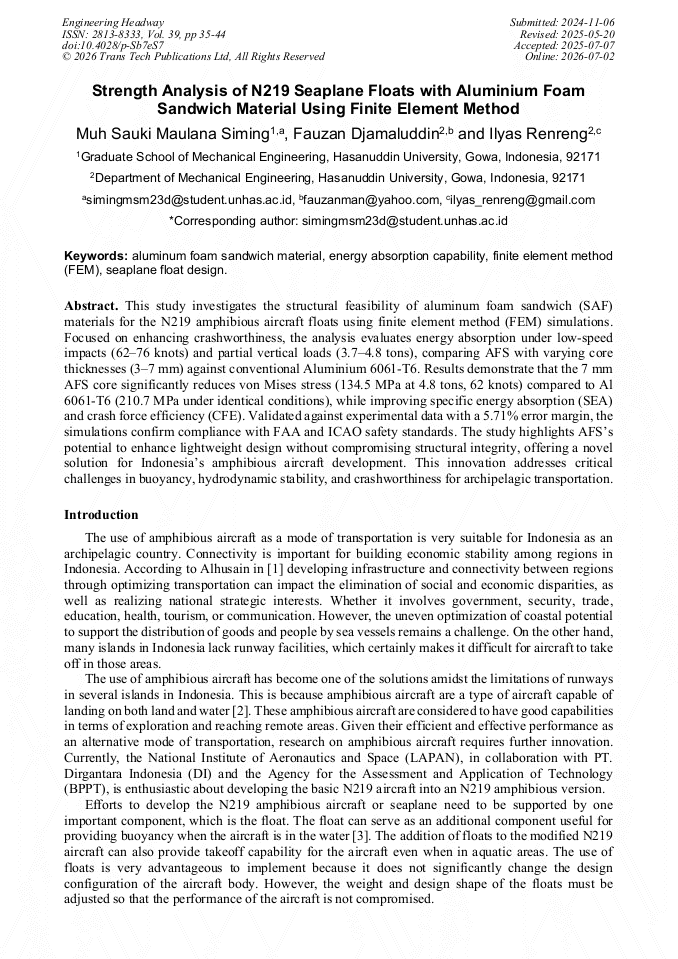

Article Preview

Abstract:

This study investigates the structural feasibility of aluminum foam sandwich (SAF) materials for the N219 amphibious aircraft floats using finite element method (FEM) simulations. Focused on enhancing crashworthiness, the analysis evaluates energy absorption under low-speed impacts (62–76 knots) and partial vertical loads (3.7–4.8 tons), comparing AFS with varying core thicknesses (3–7 mm) against conventional Aluminium 6061-T6. Results demonstrate that the 7 mm AFS core significantly reduces von Mises stress (134.5 MPa at 4.8 tons, 62 knots) compared to Al 6061-T6 (210.7 MPa under identical conditions), while improving specific energy absorption (SEA) and crash force efficiency (CFE). Validated against experimental data with a 5.71% error margin, the simulations confirm compliance with FAA and ICAO safety standards. The study highlights AFS’s potential to enhance lightweight design without compromising structural integrity, offering a novel solution for Indonesia’s amphibious aircraft development. This innovation addresses critical challenges in buoyancy, hydrodynamic stability, and crashworthiness for archipelagic transportation.

You might also be interested in these eBooks
The 2nd International Conference on Research in Engineering and Science Technology (IC-REST) View Preview

Info:

Periodical:

Engineering Headway (Volume 39)

Pages:

35-44

DOI:

https://doi.org/10.4028/p-Sb7eS7

Citation:

Cite this paper

Online since:

July 2026

Authors:

Muh Sauki Maulana Siming*, Fauzan Djamaluddin, Ilyas Renreng

Keywords:

Aluminum Foam Sandwich Material, Energy Absorption Capability, Finite Element Method (FEM), Seaplane Float Design

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

© 2026 Trans Tech Publications Ltd. All Rights Reserved

Share:

Citation:

* - Corresponding Author

References

[1] R. A. Putra, "Challenges in Indonesia's Marine Development Policy," Soc. Polit. Sci., vol. 2, no. 2, p.101–114, 2023.

Google Scholar

[2] H. A. Jakaria and T. Indriyanto, "Take off simulation and analysis of aircraft with twin floats," IOP Conf. Ser. Mater. Sci. Eng., vol. 1173, no. 1, p.012056, 2021.

DOI: 10.1088/1757-899x/1173/1/012056

Google Scholar

[3] M. Nurul Lailatul, T. S. Nurtiasto, R. A. Pratomo, A. Nugroho, and A. M. Balqis, "Study og the Mechanical Properties of Divinycell Foam Sandwich Composite Using Vacuum Assisted Resin (VARI) Method for Amphibious Aircraft Float," N-219A Aircraft Float Composite, p.1–17, 2021.

Google Scholar

[4] S. Adhi Nugroho, H. Ardianto, and H. Setiawan, "Design of the Amphibious Aircraft Float Structure," Tek. STTKD J. Tek. Elektron. Engine, vol. 6, no. 2, p.84–91, 2020.

DOI: 10.56521/teknika.v6i2.216

Google Scholar

[5] EASA, "CS-25 Certification Specifications and Acceptable Means of Compliance for Large Aeroplanes," no. March, 2011.

Google Scholar

[6] P. T. Adams, D. Andrukat, and O. Nuclear, "Federal Register /," Mod. Spec. Airworth. Certif., vol. 88, no. 191, p.8–10, 2023.

Google Scholar

[7] P. Hommel, D. Roth, and H. Binz, "Derivation of motivators for the use of aluminum foam sandwich and advantageous applications," Proc. Des. Soc., vol. 1, no. August, p.933–942, 2021.

DOI: 10.1017/pds.2021.93

Google Scholar

[8] P. Huang, Q. Gao, X. Su, Z. Feng, X. Sun, and G. Zu, "Effect of Core Density on the Three-Point Bending Performance of Aluminum Foam Sandwich Panels," Materials (Basel)., vol. 16, no. 22, p.14–17, 2023.

DOI: 10.3390/ma16227091

Google Scholar

[9] D. B. Eskayudha, K. Yamamoto, T. Kanehira, T. Nakashima, and H. Mutsuda, "A Proposed Seaplane Float in Water Entry Problem and Landing in Waves using Particle Based Method," J. Adv. Res. Numer. Heat Transf., vol. 13, no. 1, p.31–38, 2023.

DOI: 10.37934/arnht.13.1.3138

Google Scholar

[10] Z. Huang and X. Zhang, "Crashworthiness and optimization design of quadruple-cell Aluminum/CFRP hybrid tubes under transverse bending," Compos. Struct., vol. 235, no. October 2019, p.111753, 2020.

DOI: 10.1016/j.compstruct.2019.111753

Google Scholar

[11] F. Dionisius, J. Istiyanto, S. Suliono, and Y. Nur Rohmat, "Pengembangan Pengujian Crashworthiness dengan Simulasi Numerik Menggunakan Model Impact Transferability," JTT (Jurnal Teknol. Ter., vol. 3, no. 1, p.12–17, 2017.

DOI: 10.31884/jtt.v3i1.4

Google Scholar

[12] D. Hu, Y. Wang, B. Song, and Y. Wang, "Energy absorption characteristics of a foam-filled tri-tube under axial quasi-static loading: experiment and numerical simulation," Int. J. Crashworthiness, vol. 23, no. 4, p.417–432, 2018.

DOI: 10.1080/13588265.2017.1331494

Google Scholar
