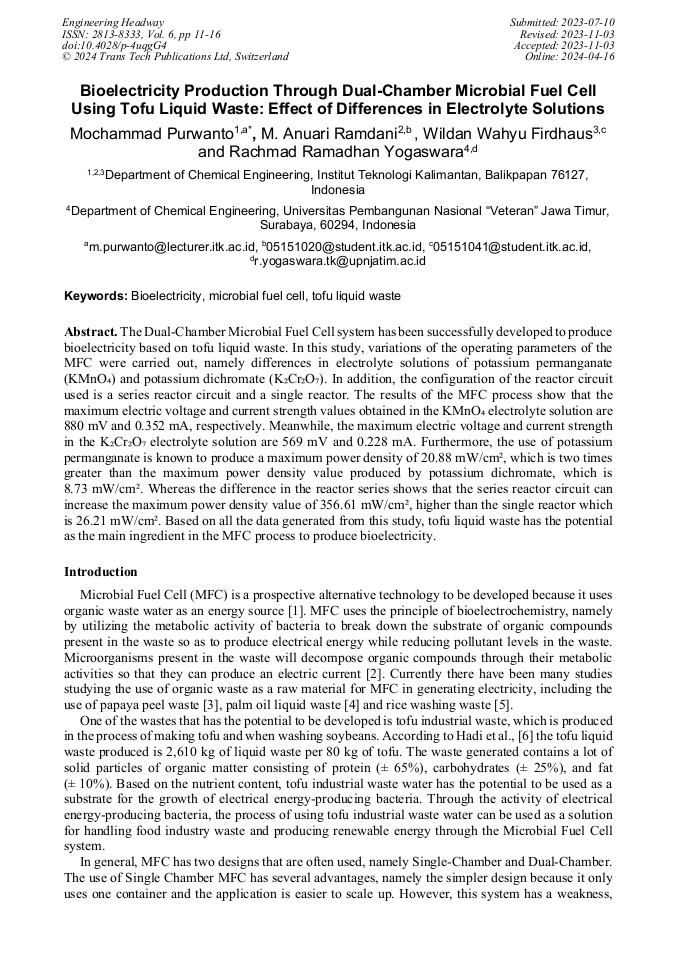

Bioelectricity Production through Dual-Chamber Microbial Fuel Cell Using Tofu Liquid Waste: Effect of Differences in Electrolyte Solutions

Abstract:

The Dual-Chamber Microbial Fuel Cell system has been successfully developed to produce bioelectricity based on tofu liquid waste. In this study, variations of the operating parameters of the MFC were carried out, namely differences in electrolyte solutions of potassium permanganate (KMnO₄) and potassium dichromate (K₂Cr₂O₇). In addition, the configuration of the reactor circuit used is a series reactor circuit and a single reactor. The results of the MFC process show that the maximum electric voltage and current strength values obtained in the KMnO₄ electrolyte solution are 880 mV and 0.352 mA, respectively. Meanwhile, the maximum electric voltage and current strength in the K₂Cr₂O₇ electrolyte solution are 569 mV and 0.228 mA. Furthermore, the use of potassium permanganate is known to produce a maximum power density of 20.88 mW/cm², which is two times greater than the maximum power density value produced by potassium dichromate, which is 8.73 mW/cm². Whereas the difference in the reactor series shows that the series reactor circuit can increase the maximum power density value of 356.61 mW/cm², higher than the single reactor which is 26.21 mW/cm². Based on all the data generated from this study, tofu liquid waste has the potential as the main ingredient in the MFC process to produce bioelectricity.

• Periodical: Engineering Headway (Volume 6)
• Pages: 11-16
• DOI: https://doi.org/10.4028/p-4uqgG4
• Online since: April 2024
• Authors: Mochammad Purwanto*, M Anuari Ramdani, Wildan Wahyu Firdhaus, Rachmad Ramadhan Yogaswara
• Keywords: Bioelectricity, Microbial Fuel Cell, Tofu Liquid Waste

References

[1] Debajyoti Bose, Riya Bhattacharya, Margavelu Gopinath, Parthasarthy Vijay, Balaji Krishnakumar, Bioelectricity production and bioremediation from sugarcane industry wastewater using microbial fuel cells with activated carbon cathodes, Results in Engineering 18 (2023) 101052.

DOI: 10.1016/j.rineng.2023.101052

[2] S. Rojas-Flores, M. De La Cruz-Noriega, R. Nazario-Naveda, Santiago M. Benites, D. Delfín-Narciso, W. Rojas-Villacorta, Cecilia V. Romero, Bioelectricity through microbial fuel cells using avocado waste, Energy Reports 8 (2022) 376–382.

DOI: 10.1016/j.egyr.2022.06.100

[3] Utami, Lisa, Lazulva, Enti Yenti., Production of Electrical Energy from Papaya Peel Waste (Carica papaya) Using Microbial Fuel Cells Technology, Al-Kimiya, 6 (1) (2018) 52 – 62.

[4] Rachmad Ramadhan Yogaswara, Ayu Shafira Farha, Khairunnisa, Memik Dian Pusfitasari, Adrian Gunawan, Study Of Addition Of Microorganism In Pome Waste Substrate On Microbial Fuel Cell Performance, Journal of Chemical Engineering 12 (1) (2017) 14 – 18.

DOI: 10.33005/tekkim.v12i1.839

[5] Levina Nirwana Harahap, Muhammad Mauzar Azqa, Irianto, and Mochammad Purwanto, Harvesting of bio-energy from rice washing waste and banana (Musa Paradisiaca L.) peel using microbial fuel cells, AIP Conference Proceedings 2638, 080001 (2022) 1 – 6.

DOI: 10.1063/5.0104087

[6] Hadi, P.P., David, A., and Shinta, E., The Effect of the Mixing Ratio of Tofu Liquid Waste and Cow Manure on Anaerobic Processes, urnal JOM Faculty of Engineering, University of Riau 3 (2) (2016) 1 – 5.

[7] Parkash, Anand., Microbial Fuel Cells: A Source of Bioenergy, Journal of Microbial & Biochemical Technology, 8 (3) (2016 ) 247-255.

[8] Kim, K. Y., Yang, W., & Logan, B E., Impact of electrode configurations on retention time and domestic wastewater treatment efficiency using microbial fuel cells, Water Research, 80 (2015) 41-46.

DOI: 10.1016/j.watres.2015.05.021

[9] Guerrero-Rangel, N., J.A. Rodriguez-de la Garza, Y.Garza-Garcia., Comparative Study of Three Cathodic Electron Acceptors on the Performance of Medatiorless Microbial Fuel Cell, International Journal of Electrical and Power Engginering, 4 (1) (2010) 27 – 31.

DOI: 10.3923/ijepe.2010.27.31

[10] Arbianti, R., Utami, T.S., Hermansyah, H. Novitasari, D., Kristin, E., dan Trisnawati, I., Performance Optimization of Microbial Fuel Cell (MFC) Using Lactobacillus bulgaricus, Makara Seri Teknologi, 17 (1) (2013 32 – 38.

DOI: 10.7454/mst.v17i1.1925

[11] Ibrahim, B., Suptijah, P. and Rosmalawati, S., Performance of Microbial Fuel Cell System Series as a Producer of Bioelectricity from Liquid Fisheries Waste, Journal of Processing of Indonesian Fishery Products, 17(1) (2014) 71– 79.

[12] Zhou, Minghua., Meiling Chi, Jianmei Luo, Huanhuan He,dan Tao Jin., An Overview of Electrode Materials in Microbial Fuel Cell, Journal of Power Sources, 196 (1) (2011) 4427 – 4435.

DOI: 10.1016/j.jpowsour.2011.01.012
