Low-Defect Ni/Ti Composite Backside Ohmic Contact for Thinned 4H-SiC Devices Formed by 355 Nm UV Laser Annealing

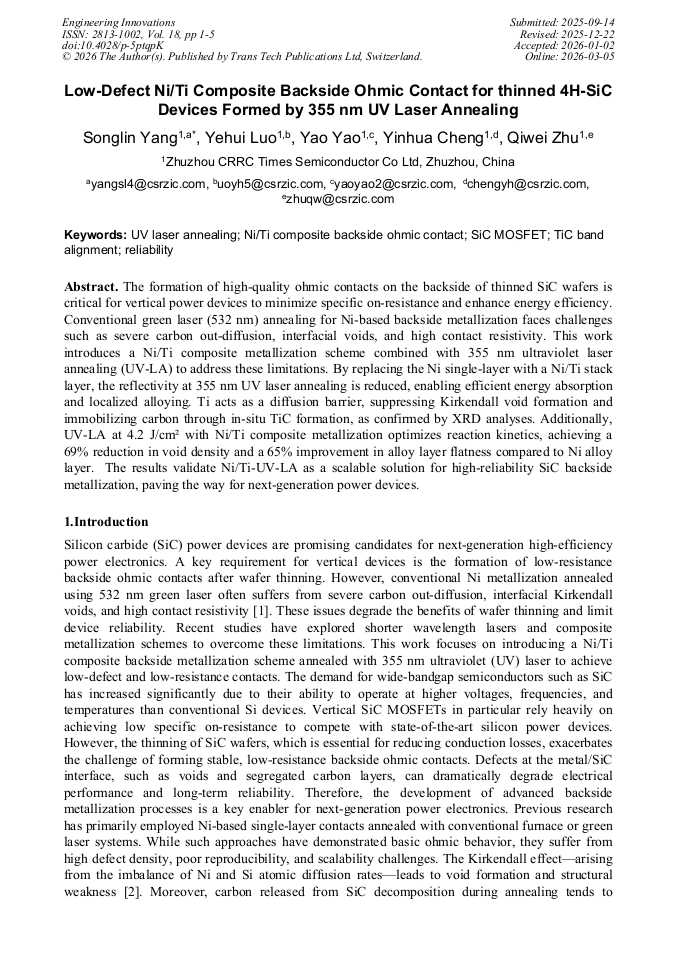

Article Preview

Abstract:

The formation of high-quality ohmic contacts on the backside of thinned SiC wafers is critical for vertical power devices to minimize specific on-resistance and enhance energy efficiency. Conventional green laser (532 nm) annealing for Ni-based backside metallization faces challenges such as severe carbon out-diffusion, interfacial voids, and high contact resistivity. This work introduces a Ni/Ti composite metallization scheme combined with 355 nm ultraviolet laser annealing (UV-LA) to address these limitations. By replacing the Ni single-layer with a Ni/Ti stack layer, the reflectivity at 355 nm UV laser annealing is reduced, enabling efficient energy absorption and localized alloying. Ti acts as a diffusion barrier, suppressing Kirkendall void formation and immobilizing carbon through in-situ TiC formation, as confirmed by XRD analyses. Additionally, UV-LA at 4.2 J/cm² with Ni/Ti composite metallization optimizes reaction kinetics, achieving a 69% reduction in void density and a 65% improvement in alloy layer flatness compared to Ni alloy layer. The results validate Ni/Ti-UV-LA as a scalable solution for high-reliability SiC backside metallization, paving the way for next-generation power devices.

You might also be interested in these eBooks

Info:

* - Corresponding Author

[1] J.-F. Michaud et al., "Nickel Ohmic Contacts Formed on 4H-SiC by UV Laser Annealing," Solid State Phenomena 359, 91-96 (2024).

DOI: 10.4028/p-xqh9xb

Google Scholar

[2] M. De Silva et al., "Epitaxial Ti-Si-C Ohmic Contact on 4H-SiC C-face Using Pulsed-laser Annealing," Appl. Phys. Lett. 110, 252108 (2017).

DOI: 10.1063/1.4987136

Google Scholar

[3] C. Berger et al., "Ti Ohmic Contacts Formed by Laser Annealing on 4H-SiC," Mater. Sci. Semicond. Process. 151, 106983 (2022).

DOI: 10.1016/j.mssp.2022.106983

Google Scholar

[4] S. Rascunà et al., "Nickel-based Ohmic Contacts on n-4H-SiC by Laser Annealing," Mater. Sci. Semicond. Process. 97, 62-66 (2019).

Google Scholar
