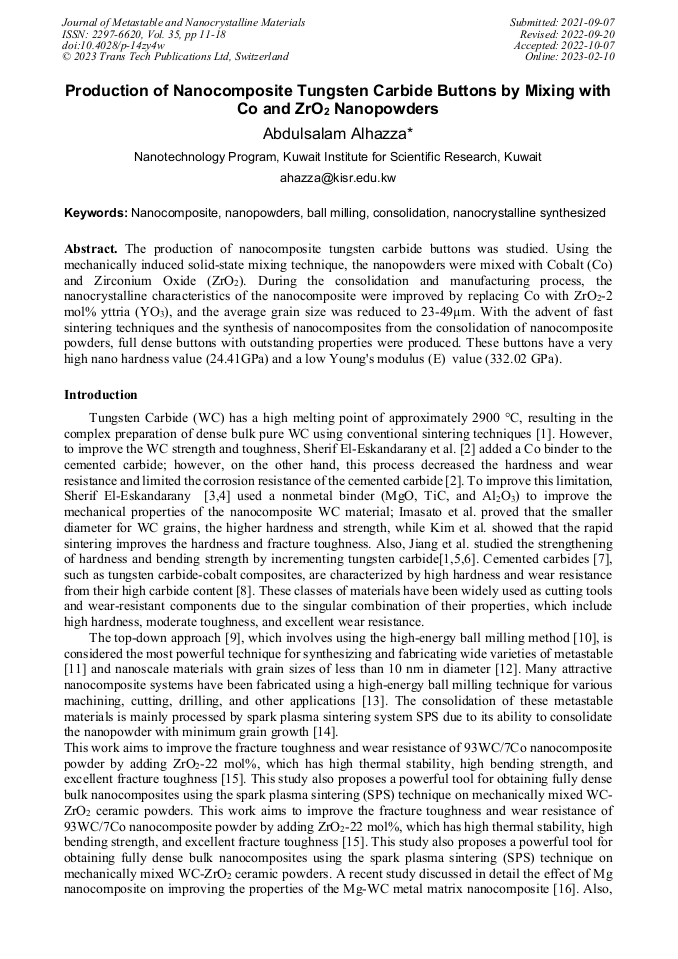

Production of Nanocomposite Tungsten Carbide Buttons by Mixing with Co and ZrO₂ Nanopowders

Abstract:

The production of nanocomposite tungsten carbide buttons was studied. Using the mechanically induced solid-state mixing technique, the nanopowders were mixed with Cobalt (Co) and Zirconium Oxide (ZrO₂). During the consolidation and manufacturing process, the nanocrystalline characteristics of the nanocomposite were improved by replacing Co with ZrO₂-2 mol% yttria (YO₃), and the average grain size was reduced to 23-49µm. With the advent of fast sintering techniques and the synthesis of nanocomposites from the consolidation of nanocomposite powders, full dense buttons with outstanding properties were produced. These buttons have a very high nano hardness value (24.41GPa) and a low Young's modulus (E) value (332.02 GPa).

• Periodical: Journal of Metastable and Nanocrystalline Materials (Volume 35)
• Pages: 11-18
• DOI: https://doi.org/10.4028/p-14zy4w
• Online since: February 2023
• Authors: Abdulsalam Alhazza*
• Keywords: Ball Milling, Consolidation, Nanocomposite, Nanocrystaline Synthesized, Nanopowders

References

[1] S. Imasato, K. Tokumoto, T. Kitada, and S. Sakaguchi, Properties of ultra-fine grain binderless cemented carbide RCCFN,, Int. Journal of Refractory Metals and Hard Materials, 13 (1995) 305-12.

DOI: 10.1016/0263-4368(95)92676-b

[2] M. Sherif El-Eskandarany, Fabrication of nanocrystalline WC and nanocomposite WC–MgO refractory materials at room temperature, J. Alloy Comp., 296 (2000) 175–82.

DOI: 10.1016/s0925-8388(99)00508-3

[3] M. Sherif El-Eskandarany, A. Alhazza, and L. Alhajji, Mechanically assisted solid state mixing and park plasma sintering for fabrication of Bulk Nanocomposite (WC/(10Co/4Cr))- Based ZrO2 Systems, Journal of Materials Engineering and Performance, 26 (2016) 1540-1550.

DOI: 10.1007/s11665-017-2580-3

[4] M. Sherif El-Eskandarany, Fabrication and characterizations of new nanocomposite WC/Al2O3 materials by room temperature ball milling and subsequent consolidation, J. Alloy Comp., 391 (2005) 228–35.

DOI: 10.1016/j.jallcom.2004.08.064

[5] H.C. Kim, D.K. Kim, K.D. Woo, I.Y. Ko, and J. Shon, Consolidation of binderless WC–TiC by high frequency induction heating sintering, Int. Journal of Refractory Metals and Hard Materials, 26 (2008) 48–54.

DOI: 10.1016/j.ijrmhm.2007.01.006

[6] D. Jiang, O. Van der Biest, and J. Vleugels, ZrO2–WC nanocomposites with superior properties, Journal of the European Ceramic Society, 27 (2007) 1247–1251.

DOI: 10.1016/j.jeurceramsoc.2006.05.028

[7] R. Raihanuzzaman, Z. Xie, S. J. Hong, and R. Ghomashchi, Powder refinement, consolidation and mechanical properties of cemented carbides — An overview, Powder Technology, 261 (2014) 1–13.

DOI: 10.1016/j.powtec.2014.04.024

[8] W. Su, Y. Sun, H. Wang, X. Zhang, and J. Ruan, Preparation and sintering of WC–Co composite powders for coarse grained WC–8Co hard metals, International Journal of Refractory Metals and Hard Materials, 45 (2014) 80-85.

DOI: 10.1016/j.ijrmhm.2014.04.004

[9] M. Sherif El-Eskandarany, Top-Down Approach Accompanied with Mechanical Solid-State Mixing for Producing Nanocomposite WC/Al2O3 Materials, Journal of Nanoparticles, 2 (2009) 14-22.

[10] M. Sherif El-Eskandarany, Mechanical Alloying for Fabrication of Advanced Engineering Materials, Elsevier Inc, Philadelphia, PA 19103-2899, the U.S.A, (2001).

[11] M. Sherif El-Eskandarany, and A. Inoue, Mechanically induced cyclic metastable phase transformations of Zr2Ni Alloys, Physical Review B, 75 (2007) 224109 – 1 to 224109-9.

[12] M. Sherif El-Eskandarany, Mechanical Alloying for Nanotechnology, Materials Science and Powder Metallurgy, Elsevier Inc, Philadelphia, PA 19103-2899, the U.S.A, (2014).

[13] M. Sherif El-Eskandarany, Mechanical solid state mixing for synthesizing of SiCp/Al nanocomposites, J. of Alloys Comp., 279 (1998) pp.263-271.

DOI: 10.1016/s0925-8388(98)00658-6

[14] C. Suryanarayana, and Nasser Al-Aqeeli, Mechanically alloyed nanocomposites, Progress in Materials Science, 58 (2013) 383–502.

DOI: 10.1016/j.pmatsci.2012.10.001

[15] G.R. Anstis, P. Chantikul, B.R. Lawn, and D.B. Marshall, Critical evaluation of indention technique for measuring fracture toughness: I, direct crack measurements, J. Am. Ceram. Soc., 64 (1981) 533-538.

DOI: 10.1111/j.1151-2916.1981.tb10320.x

[16] Sudip Banerjee, Suswagata Poria, Goutam Sutradhar & Prasanta Sahoo, Mg-WC Nanocomposites—Recent Advances and Perspectives, Recent Advances in Layered Materials and Structures (2021) p.199–228.

DOI: 10.1007/978-981-33-4550-8_8

[17] AnilKumar Das, Recent advancements in nanocomposite coating manufactured by laser cladding and alloying Technique: A critical review, Materials Today: Proceedings, 57, 4, (2022), 1852-1857.

DOI: 10.1016/j.matpr.2022.01.078
