Effect of SiC Nanoparticles Dispersion on the Microstructure and Mechanical Properties of Electroplated Sn-Bi Solder Alloy

Abstract:

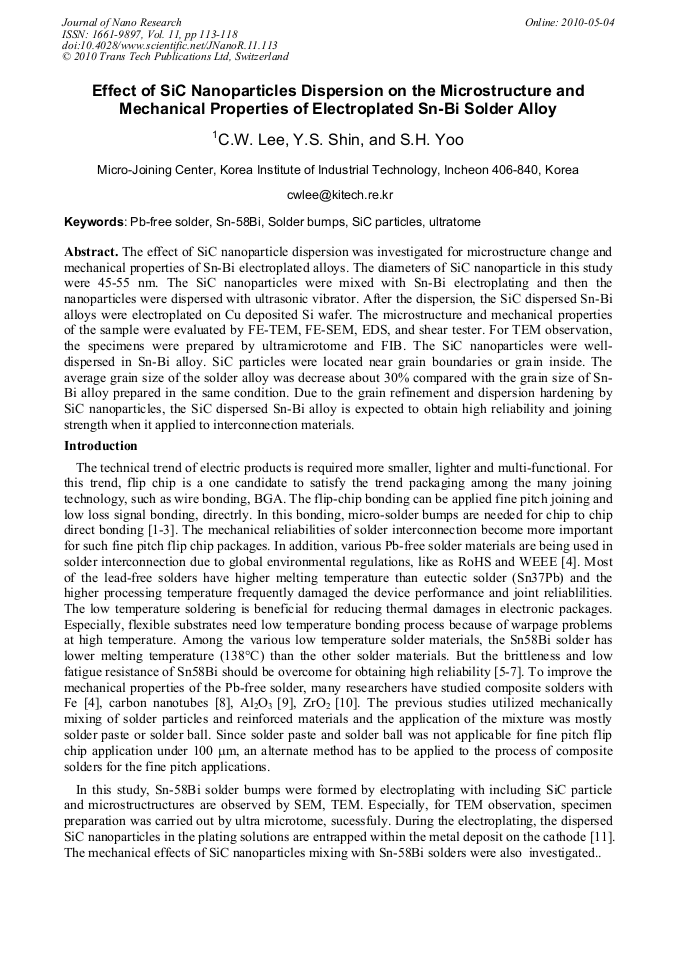

Article Preview

The effect of SiC nanoparticle dispersion was investigated for microstructure change and mechanical properties of Sn-Bi electroplated alloys. The diameters of SiC nanoparticle in this study were 45-55 nm. The SiC nanoparticles were mixed with Sn-Bi electroplating and then the nanoparticles were dispersed with ultrasonic vibrator. After the dispersion, the SiC dispersed Sn-Bi alloys were electroplated on Cu deposited Si wafer. The microstructure and mechanical properties of the sample were evaluated by FE-TEM, FE-SEM, EDS, and shear tester. For TEM observation, the specimens were prepared by ultramicrotome and FIB. The SiC nanoparticles were well-dispersed in Sn-Bi alloy. SiC particles were located near grain boundaries or grain inside. The average grain size of the solder alloy was decrease about 30% compared with the grain size of Sn-Bi alloy prepared in the same condition. Due to the grain refinement and dispersion hardening by SiC nanoparticles, the SiC dispersed Sn-Bi alloy is expected to obtain high reliability and joining strength when it applied to interconnection materials.

Info:

Periodical:

Edited by:

Andreas Öchsner, Irina V. Belova and Graeme E. Murch

Pages:

113-118

DOI:

10.4028/www.scientific.net/JNanoR.11.113

Citation:

C. W. Lee et al., "Effect of SiC Nanoparticles Dispersion on the Microstructure and Mechanical Properties of Electroplated Sn-Bi Solder Alloy", Journal of Nano Research, Vol. 11, pp. 113-118, 2010

Online since:

May 2010

Export:

Price:

$35.00

[1] R. Smerons and R. Strauss: Elect. Commun Vol. 57 (1982), p.148.

[2] Z. Mei: J. Electronic Mater. Vol. 21 (1992), p.599.

[3] European Union WEEE. Directive, 3er Draft, May, (2000).

[4] S. Jin and M. McCormack: J. Electron. Mater. Vol. 23 (1994), p.735.

[5] The Measurement of Zeta potential Using an Autotitrator: Effect of pH, Application Note by Malvern Instruments, (2005).

[6] H.K. Lee: Surf. Coat. Technol. Vol. 201 (2007), p.4711.

[7] D. Frear: J. Electron. Mater. Vol. 17 (1988), p.171.

[8] K. Mohan Kumar, V. Kiropesh, Andrew A.O. Toy: J. Alloys Comps. Vol. 450 (2008), p.229.

[9] H. Mavoori and S. Jin: J. Electronic Mater. Vol. 27 (1998), p.1216.

[10] J. Shen, Y. Liu, D. Wang and H. Gao: J. Mater. Sci. Technol. Vol. 22(4) (2006).

[11] C.T.J. Low, R.G.A. Wills, F.C. Wlash: Surf. Coat. Technol. Vol. 201 (2006), p.371.

[12] The Measurement of Zeta potential Using an Autotitrator: Effect of pH, Application Note by Malvern Instruments, (2005).

[13] H.K. Lee: Surf. Coat. Technol. Vol. 201 (2007), p.4711.

[14] D.R. Frear, The Mechnics of Solder Alloy Interconnects, Van Nostrand Reinhold, 1994, pp.21-38.
