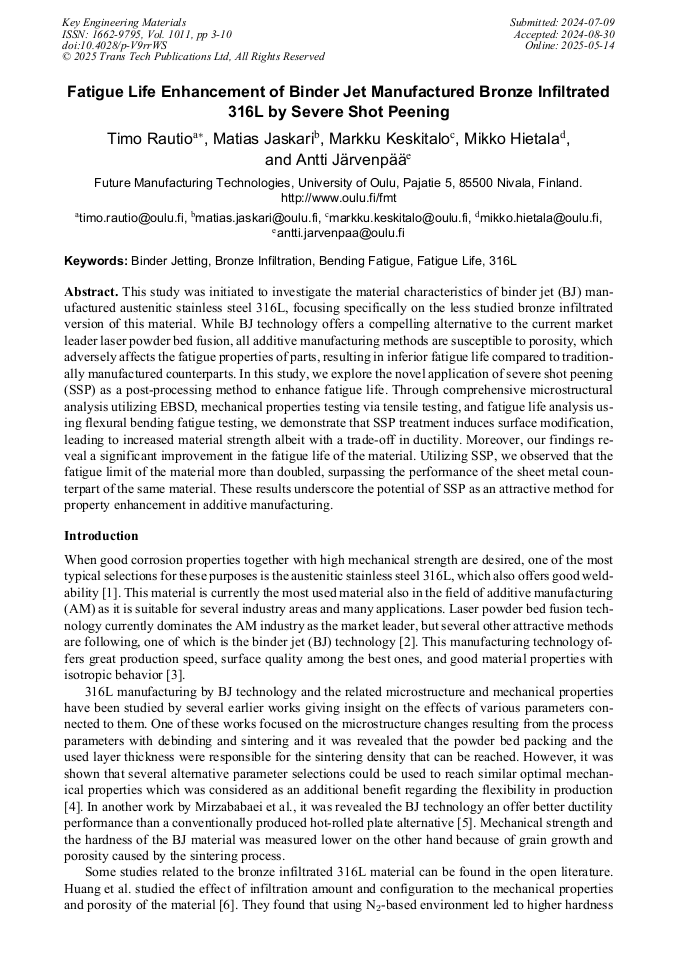

Fatigue Life Enhancement of Binder Jet Manufactured Bronze Infiltrated 316L by Severe Shot Peening

Abstract:

This study was initiated to investigate the material characteristics of binder jet (BJ) manufactured austenitic stainless steel 316L, focusing specifically on the less studied bronze infiltrated version of this material. While BJ technology offers a compelling alternative to the current market leader laser powder bed fusion, all additive manufacturing methods are susceptible to porosity, which adversely affects the fatigue properties of parts, resulting in inferior fatigue life compared to traditionally manufactured counterparts. In this study, we explore the novel application of severe shot peening (SSP) as a post-processing method to enhance fatigue life. Through comprehensive microstructural analysis utilizing EBSD, mechanical properties testing via tensile testing, and fatigue life analysis using flexural bending fatigue testing, we demonstrate that SSP treatment induces surface modification, leading to increased material strength albeit with a trade-off in ductility. Moreover, our findings reveal a significant improvement in the fatigue life of the material. Utilizing SSP, we observed that the fatigue limit of the material more than doubled, surpassing the performance of the sheet metal counterpart of the same material. These results underscore the potential of SSP as an attractive method for property enhancement in additive manufacturing.

• Periodical: Key Engineering Materials (Volume 1011)
• Pages: 3-10
• DOI: https://doi.org/10.4028/p-V9rrWS
• Online since: May 2025
• Authors: Timo Rautio*, Matias Jaskari, Markku Keskitalo, Mikko Hietala, Antti Järvenpää
• Keywords: 316L, Bending Fatigue, Binder Jetting, Bronze Infiltration, Fatigue Life

References

[1] Yongyun Zhang, Ensheng Feng, Wei Mo, Yonghu Lv, Rui Ma, Shulong Ye, Xiaogang Wang, and Peng Yu. On the microstructures and fatigue behaviors of 316l stainless steel metal injection molded with gas- and water-atomized powders. Metals, 8(11):893, nov 2018.

DOI: 10.3390/met8110893

[2] T.T. Wohlers, Wohlers Associates (Firm), R.I. Campbell, O. Diegel, J. Kowen, R. Huff, N. Mostow, I. Fidan, D.L. Bourell, J. Van Rensburg, et al. Wohlers Report 2022: 3D Printing and Additive Manufacturing Global State of the Industry. Wohlers Associates, 2022.

DOI: 10.31399/asm.hb.v24.a0006555

[3] Amir Mostafaei, Amy M. Elliott, John E. Barnes, Fangzhou Li, Wenda Tan, Corson L. Cramer, Peeyush Nandwana, and Markus Chmielus. Binder jet 3d printing-process parameters, materials, properties, modeling, and challenges. Progress in Materials Science, 119:100707, jun 2021.

DOI: 10.1016/j.pmatsci.2020.100707

[4] Nora Lecis, Marco Mariani, Ruben Beltrami, Lorena Emanuelli, Riccardo Casati, Maurizio Vedani, and Alberto Molinari. Effects of process parameters, debinding and sintering on the microstructure of 316l stainless steel produced by binder jetting. Materials Science and Engineering: A, 828:142108, nov 2021.

DOI: 10.1016/j.msea.2021.142108

[5] Saereh Mirzababaei, Brian K. Paul, and Somayeh Pasebani. Microstructure-property relationship in binder jet produced and vacuum sintered 316 l. Additive Manufacturing, 53:102720, may 2022.

DOI: 10.1016/j.addma.2022.102720

[6] Nancy Huang, Olivia J. Cook, Justin D. Warner, Robert L.W. Smithson, Christopher M. Kube, Andrea P. Argüelles, and Allison M. Beese. Effects of infiltration conditions on binder jet additively manufactured stainless steel infiltrated with bronze. Additive Manufacturing, 59:103162, nov 2022.

DOI: 10.1016/j.addma.2022.103162

[7] Zachary C. Cordero, Derek H. Siddel, William H. Peter, and Amelia M. Elliott. Strengthening of ferrous binder jet 3d printed components through bronze infiltration. Additive Manufacturing, 15:87-92, may 2017.

DOI: 10.1016/j.addma.2017.03.011

[8] Waqas Muhammad, Rasim Batmaz, Arunkumar Natarajan, and Etienne Martin. Effect of binder jetting microstructure variability on low cycle fatigue behavior of 316l. Materials Science and Engineering: A, 839:142820, apr 2022.[9] Katerina Kimes, Kyle Myers, Andrew Klein, Magnus Ahlfors, Erica Stevens, and Markus Chmielus. Binder jet 3d printing of 316l stainless steel: Effects of HIP on fatigue. Microscopy and Microanalysis, 25(S2):2600-2601, aug 2019.

DOI: 10.1017/s1431927619013734

[10] Punit Kumar, R. Jayaraj, J. Suryawanshi, U.R. Satwik, J. McKinnell, and U. Ramamurty. Fatigue strength of additively manufactured 316l austenitic stainless steel. Acta Materialia, 199:225-239, oct 2020.

DOI: 10.1016/j.actamat.2020.08.033

[11] Mohammad Jamalkhani, Bradley Nathan, Mike Heim, Dave Nelson, and Amir Mostafaei. Fatigue behavior of vacuum-sintered binder jetted fine 316l stainless steel powder. Materials Science and Engineering: A, page 144937, apr 2023.

DOI: 10.1016/j.msea.2023.144937

[12] Tejas Gundgire, Tuomas Jokiaho, Suvi Santa-aho, Timo Rautio, Antti Järvenpää, and Minnamari Vippola. Comparative study of additively manufactured and reference 316 l stainless steel samples - effect of severe shot peening on microstructure and residual stresses. Materials Characterization, 191:112162, sep 2022.

DOI: 10.1016/j.matchar.2022.112162

[13] Timo Rautio, Matias Jaskari, Tejas Gundgire, Terho Iso-Junno, Minnamari Vippola, and Antti Järvenpää. The effect of severe shot peening on fatigue life of laser powder bed fusion manufactured 316l stainless steel. Materials, 15(10):3517, may 2022.

DOI: 10.3390/ma15103517

[14] Sara Bagherifard, Sebastian Slawik, Inés Fernández-Pariente, Christoph Pauly, Frank Mücklich, and Mario Guagliano. Nanoscale surface modification of aisi 316l stainless steel by severe shot peening. Materials & Design, 102:68-77, July 2016.

DOI: 10.1016/j.matdes.2016.03.162

[15] Mikko Hietala, Timo Rautio, Matias Jaskari, and Antti Järvenpää. Effect of severe shot peening on mechanical properties and fatigue resistance of wire arc additive manufactured aisi 316l. Solid State Phenomena, 349:15-20, September 2023.

DOI: 10.4028/p-6kvzon
