Paper Titles
Preliminary Characterization of CaO and Al₂O₃ Catalysts for Biomass-Derived Bio-Oil Production
p.53
A Review of Hydroxyl Ammonium Nitrate (HAN) as an Alternative to Traditional Satellite Propellants
p.67
Hydrogen Storage Potentials: Present and Future Prospects
p.79
Characterisation of Antibacterial Surface Textures on Titanium Alloys
p.93
A Green Approach to Curcumin Encapsulation Using Chitosan–Carrageenan Nanoparticles
p.105
Life Cycle Assessment of Aluminium Alloys for Sustainable Building Materials and Components
p.115
Refractory Bricks Characterization Manufactured from Geopolymers Based on Volcanic Ash
p.123
Assessing GFRP Rebars as a Sustainable Alternative to Steel in Aggressive Environments: Tensile Testing and Material Implications
p.131
Effect of Repair Processing on Energy Absorption of Pre-Crack-Initiated Leather
p.139

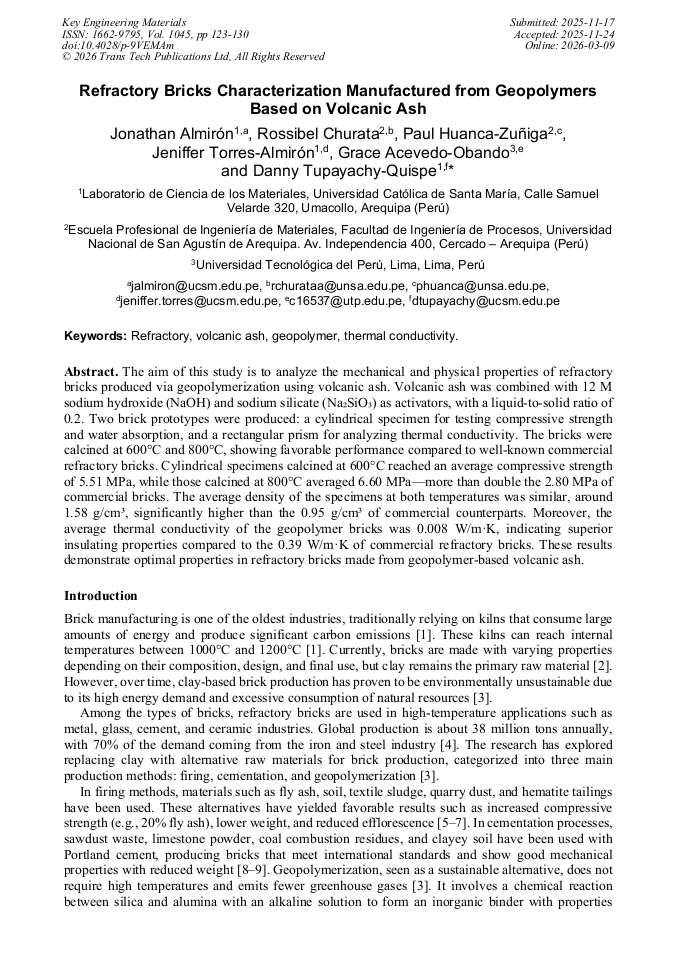

Refractory Bricks Characterization Manufactured from Geopolymers Based on Volcanic Ash

Article Preview

Abstract:

The aim of this study is to analyze the mechanical and physical properties of refractory bricks produced via geopolymerization using volcanic ash. Volcanic ash was combined with 12 M sodium hydroxide (NaOH) and sodium silicate (Na₂SiO₃) as activators, with a liquid-to-solid ratio of 0.2. Two brick prototypes were produced: a cylindrical specimen for testing compressive strength and water absorption, and a rectangular prism for analyzing thermal conductivity. The bricks were calcined at 600°C and 800°C, showing favorable performance compared to well-known commercial refractory bricks. Cylindrical specimens calcined at 600°C reached an average compressive strength of 5.51 MPa, while those calcined at 800°C averaged 6.60 MPa—more than double the 2.80 MPa of commercial bricks. The average density of the specimens at both temperatures was similar, around 1.58 g/cm³, significantly higher than the 0.95 g/cm³ of commercial counterparts. Moreover, the average thermal conductivity of the geopolymer bricks was 0.008 W/m·K, indicating superior insulating properties compared to the 0.39 W/m·K of commercial refractory bricks. These results demonstrate optimal properties in refractory bricks made from geopolymer-based volcanic ash.

You might also be interested in these eBooks
Adsorptive and Photocatalytic Materials, Green and Advanced Engineering Technologies View Preview

Info:

Periodical:

Key Engineering Materials (Volume 1045)

Pages:

123-130

DOI:

https://doi.org/10.4028/p-9VEMAm

Citation:

Cite this paper

Online since:

March 2026

Authors:

Jonathan Almirón, Rossibel Churata, Paul Huanca-Zuñiga, Jeniffer Torres-Almirón, Grace Acevedo-Obando, Danny Tupayachy-Quispe*

Keywords:

Geopolymer, Refractory, Thermal Conductivity, Volcanic Ash

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

© 2026 Trans Tech Publications Ltd. All Rights Reserved

Share:

Citation:

* - Corresponding Author

References

[1] İ. Yüksek, S.K. Öztaş and G. Tahtalı: Energy Efficiency Vol. 13 (2020), p.1473

Google Scholar

[2] F.M. Fernandes, in: Long-Term Performance and Durability of Masonry Structures, edited by Woodhead Publishing (2019), p.3

Google Scholar

[3] L. Zhang: Constr. Build. Mater. Vol. 47 (2013), p.643

Google Scholar

[4] L. Horckmans, P. Nielsen, P. Dierckx and A. Ducastel: Resour. Conserv. Recycl. Vol. 140 (2019), p.297

Google Scholar

[5] S. Abbas, M.A. Saleem, S.M. Kazmi and M.J. Munir: J. Build. Eng. Vol. 14 (2017), p.7

Google Scholar

[6] P. Padmalosan, S. Vanitha, V.S. Kumar, M. Anish, R. Tiwari, N.K. Dhapekar and A.S. Yadav: Mater. Today Proc. (2023), in press

Google Scholar

[7] Y. Chen, Y. Zhang, T. Chen, Y. Zhao and S. Bao: Constr. Build. Mater. Vol. 25 (2011), p.2107

Google Scholar

[8] P. Turgut and H.M. Algin: Build. Environ. Vol. 42 (2007), p.3399

Google Scholar

[9] R. Vinai, A. Lawane, J.R. Minane and A. Amadou: Constr. Build. Mater. Vol. 40 (2013), p.1088

Google Scholar

[10] Ö. Arıöz, K. Kilinç, M. Tuncan, A. Tuncan and T. Kavas: Adv. Sci. Technol. Vol. 69 (2011), p.69

Google Scholar

[11] S.K. Amin, S.A. El–Sherbiny, A.A. El–Magd, A. Belal and M.F. Abadir: Constr. Build. Mater. Vol. 157 (2017), p.610

DOI: 10.1016/j.conbuildmat.2017.09.052

Google Scholar

[12] H. Madani, A.A. Ramezanianpour, M. Shahbazinia and E. Ahmadi: Constr. Build. Mater. Vol. 247 (2020), p.118441

Google Scholar

[13] R. Churata, J. Almirón, M. Vargas, D. Tupayachy-Quispe, J. Torres-Almirón, Y. Ortiz-Valdivia and F. Velasco: Buildings Vol. 12 (2022), Article 8118

DOI: 10.3390/buildings12081118

Google Scholar

[14] F.A. Turkey, S.B. Beddu, A.N. Ahmed and S.K. Al-Hubboubi: Case Stud. Constr. Mater. Vol. 17 (2022), Article e01489

Google Scholar

[15] M.M. Ahmed, K.A.M. El-Naggar, D. Tarek, A. Ragab, H. Sameh, A.M. Zeyad, B.A. Tayeh, I.M. Maafa and A. Yousef: Case Stud. Constr. Mater. Vol. 15 (2021), Article e00737

DOI: 10.1016/j.cscm.2021.e00737

Google Scholar

[16] N. Yong-Sing, L. Yun-Ming, H. Cheng-Yong, M.M.A.B. Abdullah, P. Pakawanit, L.W.L. Chan, N. Hui-Teng, O. Shee-Ween, O. Wan-En and H. Yong-Jie: Ceram. Int. Vol. 48 (2022), p.16562

DOI: 10.1016/j.ceramint.2022.02.201

Google Scholar

[17] R. Churata, J. Almirón, F. Roudet, A. Bautista, M. Torres-Carrasco and D. Tupayachy-Quispe: IOP Conf. Ser.: Mater. Sci. Eng. Vol. 1150 (2021), Article 012011

DOI: 10.1088/1757-899x/1150/1/012011

Google Scholar

[18] D. Tupayachy-Quispe, F. Apaza, R. Churata, J. Almirón, E. Paredes, M. Torres-Carrasco and A. Bautista: Proc. LACCEI Int. Multi-Conf. Eng. Educ. Technol. (2020), Article 5

Google Scholar

[19] D. Tupayachy-Quispe, F. Apaza, R. Churata, J. Almirón, M. Hermoza-Gutiérrez, F. Velasco and M. Torres-Carrasco: IOP Conf. Ser.: Mater. Sci. Eng. Vol. 1150 (2021), Article 012010

DOI: 10.1088/1757-899x/1150/1/012010

Google Scholar

[20] N. Calderón, M. Vargas, J. Almirón, A. Bautista, F. Velasco and D. Tupayachy-Quispe: IOP Conf. Ser.: Mater. Sci. Eng. Vol. 1054 (2021), Article 012003

DOI: 10.1088/1757-899x/1054/1/012003

Google Scholar

[21] M. Vargas, M. Hermoza-Gutierrez, D. Tupayachy-Quispe, J. Almirón, P. Huanca and F. Velasco-Lopez: Rev. Boliv. Quím. Vol. 37 (2020), p.148

Google Scholar

[22] F.E. Apaza Choquehuayta, R.D. Churata Añasco, P. Tupayachi, J.J. Almirón Baca, L. Pérez, M. Hermosa and F. Velazco: Available at https://hdl.handle.net/20.500.12544/4226

Google Scholar

[23] Luyang Energy-saving Materials Co.,Ltd, Available at https://www.luyangwool.com/firebrick-and-mortar/refractory-insulating-fire-brick.html

Google Scholar

[24] H.T. Kouamo, A. Elimbi, J.A. Mbey, C.N. Sabouang and D. Njopwouo: Constr. Build. Mater. Vol. 35 (2012), p.960

Google Scholar

[25] H. Castillo, H. Collado, T. Droguett, S. Sánchez, M. Vesely, P. Garrido and S. Palma: Minerals Vol. 11 (2021), Article 1317

DOI: 10.3390/min11121317

Google Scholar

[26] C.Y. Heah, H. Kamarudin, A.M. Al Bakri, M. Binhussain, M. Luqman, I.K. Nizar et al.: Phys. Procedia Vol. 22 (2011), p.305

DOI: 10.1016/j.phpro.2011.11.048

Google Scholar

[27] J. Yuan, P. He, D. Jia, C. Yang, S. Yan, Z. Yang et al.: Ceram. Int. Vol. 42 (2016), p.16184

Google Scholar

[28] J.J. Ekaputri and S. Junaedi: Procedia Eng. Vol. 171 (2017), p.572

Google Scholar

[29] J.A. Amkpa, N.A. Badarulzaman and A.B. Aramjat: Int. J. Eng. Technol. Vol. 8 (2017), p.2588

Google Scholar

[30] N.A. Jaya, L. Yun-Ming, H. Cheng-Yong, M.M.A.B. Abdullah and K. Hussin: Constr. Build. Mater. Vol. 247 (2020), p.118641

Google Scholar

[31] R.T. Fongang, J. Pemndje, P.N. Lemougna, U.C. Melo, C.P. Nanseu, B. Nait-Ali et al.: Energy Build. Vol. 107 (2015), p.113

DOI: 10.1016/j.enbuild.2015.08.009

Google Scholar

[32] E. Kamseu, B. Ceron, H. Tobias, E. Leonelli, M.C. Bignozzi, A. Muscio and A. Libbra: J. Therm. Anal. Calorim. Vol. 108 (2012), p.1189

DOI: 10.1007/s10973-011-1798-9

Google Scholar
