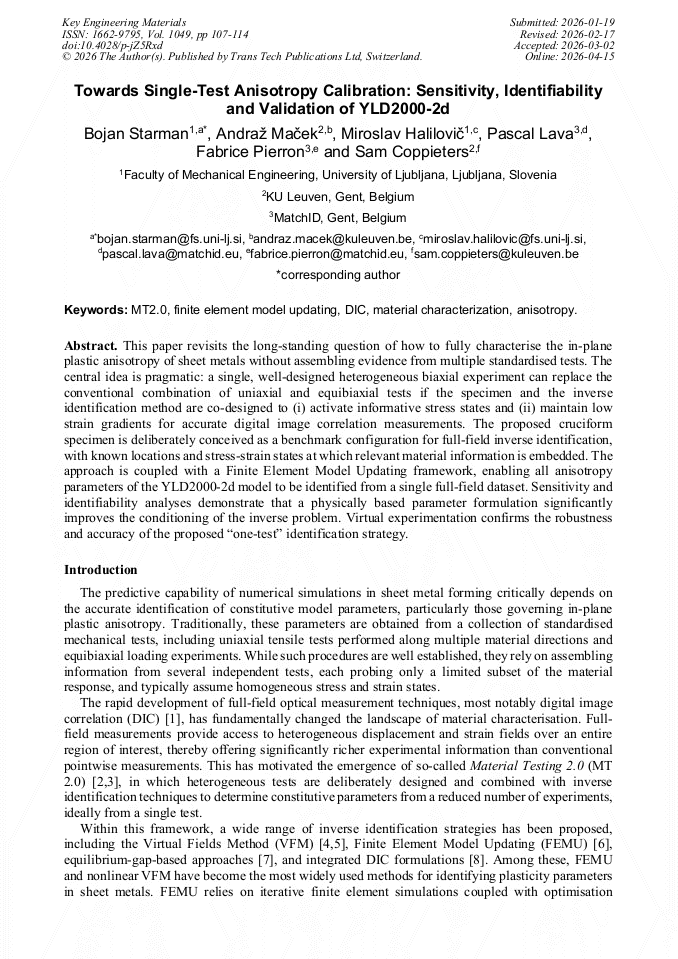

Towards Single-Test Anisotropy Calibration: Sensitivity, Identifiability and Validation of YLD2000-2d

Abstract:

This paper revisits the long-standing question of how to fully characterise the in-plane plastic anisotropy of sheet metals without assembling evidence from multiple standardised tests. The central idea is pragmatic: a single, well-designed heterogeneous biaxial experiment can replace the conventional combination of uniaxial and equibiaxial tests if the specimen and the inverse identification method are co-designed to (i) activate informative stress states and (ii) maintain low strain gradients for accurate digital image correlation measurements. The proposed cruciform specimen is deliberately conceived as a benchmark configuration for full-field inverse identification, with known locations and stress-strain states at which relevant material information is embedded. The approach is coupled with a Finite Element Model Updating framework, enabling all anisotropy parameters of the YLD2000-2d model to be identified from a single full-field dataset. Sensitivity and identifiability analyses demonstrate that a physically based parameter formulation significantly improves the conditioning of the inverse problem. Virtual experimentation confirms the robustness and accuracy of the proposed “one-test” identification strategy.

• Periodical: Key Engineering Materials (Volume 1049)
• Pages: 107-114
• DOI: https://doi.org/10.4028/p-jZ5Rxd
• Online since: April 2026
• Authors: Bojan Starman*, Andraž Maček, Miroslav Halilovič, Pascal Lava, Fabrice Pierron, Sam Coppieters
• Keywords: Anisotropy, DIC, Finite Element Model Updating, Material Characterization, MT2.0

References

[1] Schreier H, Orteu J-J, Sutton MA. Image Correlation for Shape, Motion and Deformation Measurements: Basic Concepts,Theory and Applications. Boston, MA: Springer US; 2009.

DOI: 10.1007/978-0-387-78747-3

[2] Pierron F. Material Testing 2.0: A brief review. Strain 2023;59:e12434.

DOI: 10.1111/str.12434

[3] Pierron F, Grédiac M. Towards Material Testing 2.0. A review of test design for identification of constitutive parameters from full-field measurements. Strain 2020;n/a:e12370.

DOI: 10.1111/str.12370

[4] Marek A, Davis FM, Pierron F. Sensitivity-based virtual fields for the non-linear virtual fields method. Comput Mech 2017;60:409–31.

DOI: 10.1007/s00466-017-1411-6

[5] Pierron F, Avril S, Tran VT. Extension of the virtual fields method to elasto-plastic material identification with cyclic loads and kinematic hardening. Int J Solids Struct 2010;47:2993–3010.

DOI: 10.1016/j.ijsolstr.2010.06.022

[6] Chen B, Starman B, Halilovič M, Berglund LA, Coppieters S. Finite Element Model Updating for Material Model Calibration: A Review and Guide to Practice. Arch Comput Methods Eng 2025;32:2035–112.

DOI: 10.1007/s11831-024-10200-9

[7] Amiot F, Périé J-N, Roux S. Equilibrium Gap Method. Full-Field Meas. Identif. Solid Mech., John Wiley & Sons, Ltd; 2012, p.331–62.

DOI: 10.1002/9781118578469.ch12

[8] Mathieu F, Leclerc H, Hild F, Roux S. Estimation of Elastoplastic Parameters via Weighted FEMU and Integrated-DIC. Exp Mech 2015;55:105–19.

DOI: 10.1007/s11340-014-9888-9

[9] Lattanzi A, Barlat F, Pierron F, Marek A, Rossi M. Inverse identification strategies for the characterization of transformation-based anisotropic plasticity models with the non-linear VFM. Int J Mech Sci 2020:105422.

DOI: 10.1016/j.ijmecsci.2020.105422

[10] Conde M, Zhang Y, Henriques J, Coppieters S, Andrade-Campos A. Design and validation of a heterogeneous interior notched specimen for inverse material parameter identification. Finite Elem Anal Des 2023;214:103866.

DOI: 10.1016/j.finel.2022.103866

[11] Zhang Y, Gothivarekar S, Conde M, de Velde AV, Paermentier B, Andrade-Campos A, et al. Enhancing the information-richness of sheet metal specimens for inverse identification of plastic anisotropy through strain fields. Int J Mech Sci 2022;214:106891.

DOI: 10.1016/j.ijmecsci.2021.106891

[12] Zhang Y, Van Bael A, Andrade-Campos A, Coppieters S. Parameter identifiability analysis: Mitigating the non-uniqueness issue in the inverse identification of an anisotropic yield function. Int J Solids Struct 2022;243:111543.

DOI: 10.1016/j.ijsolstr.2022.111543

[13] Barlat F, Brem JC, Yoon JW, Chung K, Dick RE, Lege DJ, et al. Plane stress yield function for aluminum alloy sheets—part 1: theory. Int J Plast 2003;19:1297–319.

DOI: 10.1016/S0749-6419(02)00019-0

[14] Fayad SS, Jones EMC, Seidl DT, Reu PL, Lambros J. On the Importance of Direct-Levelling for Constitutive Material Model Calibration using Digital Image Correlation and Finite Element Model Updating. Exp Mech 2023;63:467–84.

DOI: 10.1007/s11340-022-00926-7

[15] Zhang Y, Cooreman S, Starman B, Kuwabara T, Coppieters S. Improved Digital Virtual Twin to validate inverse identification of plastic anisotropy via FEMU. J Phys Conf Ser 2025;3104:012009.

DOI: 10.1088/1742-6596/3104/1/012009

[16] Coppieters S, Hakoyama T, Eyckens P, Nakano H, Van Bael A, Debruyne D, et al. On the synergy between physical and virtual sheet metal testing: calibration of anisotropic yield functions using a microstructure-based plasticity model. Int J Mater Form 2019;12:741–59.

DOI: 10.1007/s12289-018-1444-1
