Combined Experimental and Simulation-Based Approach for Optimizing Roll Forming of Pipes for Hydrogen Infrastructure

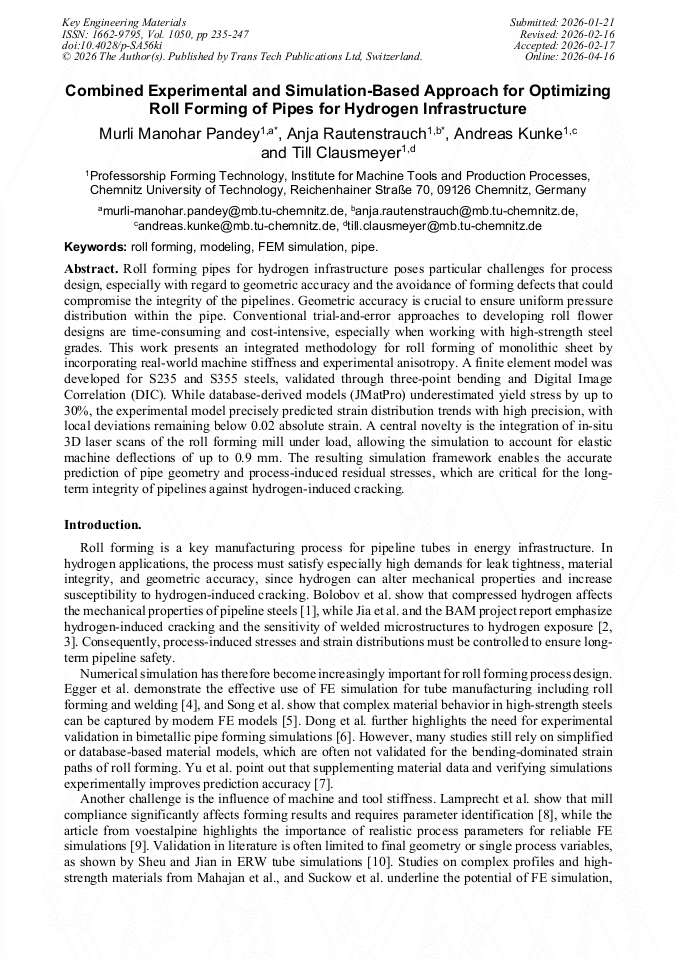

Article Preview
View Pdf By email

Abstract:

Roll forming pipes for hydrogen infrastructure poses particular challenges for process design, especially with regard to geometric accuracy and the avoidance of forming defects that could compromise the integrity of the pipelines. Geometric accuracy is crucial to ensure uniform pressure distribution within the pipe. Conventional trial-and-error approaches to developing roll flower designs are time-consuming and cost-intensive, especially when working with high-strength steel grades. This work presents an integrated methodology for roll forming of monolithic sheet by incorporating real-world machine stiffness and experimental anisotropy. A finite element model was developed for S235 and S355 steels, validated through three-point bending and Digital Image Correlation (DIC). While database-derived models (JMatPro) underestimated yield stress by up to 30%, the experimental model precisely predicted strain distributions (error < 2%). A central novelty is the integration of in-situ 3D laser scans of the roll forming mill under load, allowing the simulation to account for elastic machine deflection. This enables the prediction of process-induced residual stresses, which are critical for the long-term integrity of pipelines against hydrogen-induced cracking.

You have full access to the following eBook
Advanced Numerical and AI Strategies for Material Forming Read eBook

Info:

Periodical:

Key Engineering Materials (Volume 1050)

Pages:

235-247

DOI:

https://doi.org/10.4028/p-SA56ki

Citation:

Cite this paper

Online since:

April 2026

Authors:

Murli Manohar Pandey*, Anja Rautenstrauch, Andreas Kunke, Till Clausmeyer

Keywords:

FEM Simulation, Modeling, Pipe, Roll Forming

Export:

RIS, BibTeX

Permissions:

Creative Commons CC BY 4.0

Share:

Citation:

* - Corresponding Author

References

[1] V. I. Bolobov, Il'nur U. Latipov, G. G. Popov, G. V. Buslaev, Y. V. Martynenko, Estimation of the Influence of Compressed Hydrogen on the Mechanical Properties of Pipeline Steels, Energies 14(19) (2021) 6085.

DOI: 10.3390/en14196085

Google Scholar

[2] Y. Jia, H. Xue, Z. Wang, Research on hydrogen induced cracking behavior and service performance of metal pipeline material, Front. Mater. (2025).

DOI: 10.3389/fmats.2025.1668151

Google Scholar

[3] Federal Institute for Materials Research and Testing (BAM), Hydrogen-dependent mechanical properties of the welding microstructure of low-alloy steels for long-distance gas pipelines, BAM Project Report, Germany, 2023 2025. https://www.bam.de/Content/EN/Projects/hydrogen-dependent-mechanical-properties-steels/hydrogen-dependent-mechanical-properties.html.

DOI: 10.58286/30958

Google Scholar

[4] C. Egger, M. Lüchinger, M. Schreiner, W. Tillmann, Numerical Simulation of Tube Manufacturing Consisting of Roll Forming and High Frequency Induction Welding, Materials 15(3) (2022) 1270.

DOI: 10.3390/ma15031270

Google Scholar

[5] J. Song. J. Lan. L. Zhu. Z. Jiang. Z. Zhang. C. Ma. Finite Element Simulation and Microstructural Analysis of Roll Forming for DP590 High Strength Dual Phase Steel Wheel Rims. Materials 17(15) (2024) 3795.

DOI: 10.3390/ma17153795

Google Scholar

[6] Z. Dong. Z, Xu. W, Wang. Z, Bi. J. Zhang, Numerical Simulation and Experimental Confirmation of a Bimetallic Pipe Forming Process, Materials 13(16) (2020) 3561.

DOI: 10.3390/ma13163561

Google Scholar

[7] Y. Yu, W. Haibo, L. Qiang, G. Yanzhi, Finite element simulation of flexible roll forming with supplemented material data and the experimental verification, Chin. J. Mech. Eng. 29 (2016) 1 12.

DOI: 10.3901/CJME.2015.0824.106

Google Scholar

[8] M. Lamprecht, E. Kocbay, M. Leonhartsberger, Y. Vetyukov, F. Bleicher, Nonlinear mechanical model of the shaft of a roll forming mill and parameter identification, Int. J. Adv. Manuf. Technol. 112 (2021) 3363 3375.

DOI: 10.1007/s00170-020-06412-5

Google Scholar

[9] voestalpine Roll Forming Corporation, Finite Element Analysis in Roll Forming Applications. ThomasNet Knowledge Center, 2022. https://www.thomasnet.com/knowledge/finite-element-analysis-in-roll-forming-applications/.

DOI: 10.14264/344473

Google Scholar

[10] J.J. Sheu, E.-X. Jian, The ERW Tube Cold Roll Forming Simulation with Different Cage Roll Arrangement and Fin-Pass Design, Proceedings of the 14th International Conference on the Technology of Plasticity - Current Trends in the Technology of Plasticity. ICTP 2023. Lecture Notes in Mechanical Engineering. Springer. Cham. 2024.

DOI: 10.1007/978-3-031-41023-9_35

Google Scholar

[11] P. Mahajan, A. Abrass, P. Groche, FE simulation of roll forming of a complex profile with the aid of steady state properties, Steel Res. Int. 89 (2018) 1700350.

DOI: 10.1002/srin.201700350

Google Scholar

[12] T. Suckow, J. Schroeder, P. Groche, Roll forming of a high strength AA7075 aluminum tube, Prod. Eng. Res. Devel. 15 (2021) 573–586.

DOI: 10.1007/s11740-021-01046-2

Google Scholar

[13] Q.V. Bui, J.P. Ponthot, Numerical simulation of cold roll-forming processes, J. Mater. Process. Technol. 202 (2008) 275-282.

DOI: 10.1016/j.jmatprotec.2007.08.073

Google Scholar
