A Novel One-Shot Forming Process Integrating Hot Form Quench (HFQ) of High-Strength Aluminium for Fibre–Metal Laminate (FML) Panel Parts

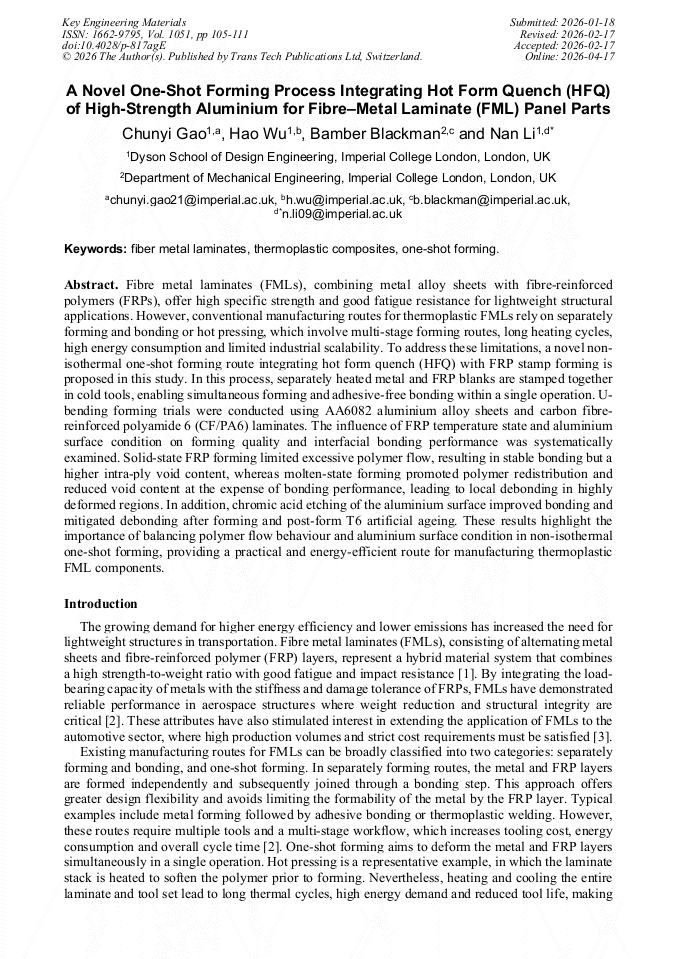

Article Preview
View Pdf By email

Abstract:

Fibre metal laminates (FMLs), combining metal alloy sheets with fibre-reinforced polymers (FRPs), offer high specific strength and good fatigue resistance for lightweight structural applications. However, conventional manufacturing routes for thermoplastic FMLs rely on separately forming and bonding or hot pressing, which involve multi-stage forming routes, long heating cycles, high energy consumption and limited industrial scalability. To address these limitations, a novel non-isothermal one-shot forming route integrating hot form quench (HFQ) with FRP stamp forming is proposed in this study. In this process, separately heated metal and FRP blanks are stamped together in cold tools, enabling simultaneous forming and adhesive-free bonding within a single operation. U-bending forming trials were conducted using AA6082 aluminium alloy sheets and carbon fibre-reinforced polyamide 6 (CF/PA6) laminates. The influence of FRP temperature state and aluminium surface condition on forming quality and interfacial bonding performance was systematically examined. Solid-state FRP forming limited excessive polymer flow, resulting in stable bonding but a higher intra-ply void content, whereas molten-state forming promoted polymer redistribution and reduced void content at the expense of bonding performance, leading to local debonding in highly deformed regions. In addition, chromic acid etching of the aluminium surface improved bonding and mitigated debonding after forming and post-form T6 artificial ageing. These results highlight the importance of balancing polymer flow behaviour and aluminium surface condition in non-isothermal one-shot forming, providing a practical and energy-efficient route for manufacturing thermoplastic FML components.

You have full access to the following eBook
Sustainability on Material Forming Read eBook

Info:

Periodical:

Key Engineering Materials (Volume 1051)

Pages:

105-111

DOI:

https://doi.org/10.4028/p-817agE

Citation:

Cite this paper

Online since:

April 2026

Authors:

Chunyi Gao*, Hao Wu, Bamber Blackman, Nan Li

Keywords:

Fiber Metal Laminates, One-Shot Forming, Thermoplastic Composites

Export:

RIS, BibTeX

Permissions:

Creative Commons CC BY 4.0

Share:

Citation:

* - Corresponding Author

References

[1] G. Wu, J.-M. Yang, The mechanical behavior of GLARE laminates for aircraft structures, JOM 57 (2005) 72-79.

DOI: 10.1007/s11837-005-0067-4

Google Scholar

[2] Z. Ding, H. Wang, J. Luo, N. Li, A review on forming technologies of fibre metal laminates, Int. J. Lightweight Mater. Manuf. 4 (2021) 110-126.

Google Scholar

[3] R.D.F.S. Costa, R.C.M. Sales-Contini, F.J.G. Silva, N. Sebbe, A.M.P. Jesus,A critical review on fiber metal laminates (FML): From manufacturing to sustainable processing, Metals 13 (2023) 638.

DOI: 10.3390/met13040638

Google Scholar

[4] B.-A. Behrens, S. Hübner, A. Neumann, Forming sheets of metal and fibre-reinforced plastics to hybrid parts in one deep drawing process, Procedia Eng. 81 (2014) 1608-1613.

DOI: 10.1016/j.proeng.2014.10.198

Google Scholar

[5] L. Mosse, P. Compston, W.J. Cantwell, M. Cardew-Hall, S. Kalyanasundaram, The effect of process temperature on the formability of polypropylene based fibre–metal laminates, Compos. Part A 36 (2005) 1158-1166.

DOI: 10.1016/j.compositesa.2005.01.009

Google Scholar

[6] B. Bernd-Arno, H. Sven, G. Nenad, M.-C. Moritz, W. Tim, N. André, Forming and joining of carbon-fiber-reinforced thermoplastics and sheet metal in one step, Procedia Eng. 183 (2017) 227-232.

DOI: 10.1016/j.proeng.2017.04.026

Google Scholar

[7] N. Li, Z. Ding, C. Gao, H. Wang, Method of manufacturing multi-material structures, United Kingdom Patent Appl. P79563GB. (2025).

Google Scholar

[8] N. Li, J. Zheng, C. Zhang, K. Zheng, J. Lin, T.A. Dean, Investigation on fast and energy-efficient heat treatments of AA6082 in HFQ processes for automotive applications, MATEC Web Conf. 21 (2015) 05015.

DOI: 10.1051/matecconf/20152105015

Google Scholar

[9] M. Droździel-Jurkiewicz, J. Bieniaś, Evaluation of surface treatment for enhancing adhesion at the metal–composite interface in fibre metal laminates, Materials 15 (2022).

DOI: 10.3390/ma15176118

Google Scholar
