Optimization of a High-Performance Cu2NiGeS4 Solar Cell with an SnS Back Surface Field

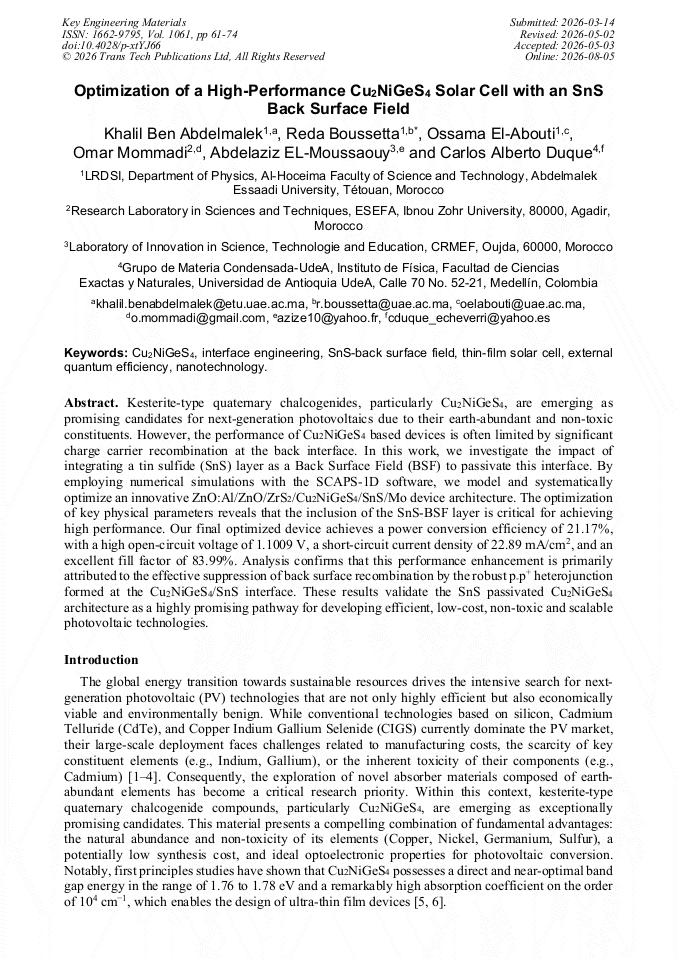

Article Preview

Abstract:

Kesterite-type quaternary chalcogenides, particularly Cu2NiGeS4, are emerging as promising candidates for next-generation photovoltaics due to their earth-abundant and non-toxic constituents. However, the performance of Cu2NiGeS4-based devices is often limited by significant charge carrier recombination at the back interface. In this work, we investigate the impact of integrating a tin sulfide (SnS) layer as a Back Surface Field (BSF) to passivate this interface. By employing numerical simulations with the SCAPS-1D software, we model and systematically optimize an innovative ZnO:Al/ZnO/ZrS2/Cu2NiGeS4/SnS/Mo device architecture. The optimization of key physical parameters reveals that the inclusion of the SnS-BSF layer is critical for achieving high performance. Our final optimized device achieves a power conversion efficiency of 21.17%, with a high open-circuit voltage of 1.1009 V, a short-circuit current density of 22.89 mA/cm2, and an excellent fill factor of 83.99%. Analysis confirms that this performance enhancement is primarily attributed to the effective suppression of back surface recombination by the robust p-p+ heterojunction formed at the Cu2NiGeS4/SnS interface. These results validate the SnS-passivated Cu2NiGeS4 architecture as a highly promising pathway for developing efficient, low-cost, non-toxic and scalable photovoltaic technologies.

You might also be interested in these eBooks
Tribotechnics, Mechatronics and Next-Generation Photovoltaics View Preview

Info:

Periodical:

Key Engineering Materials (Volume 1061)

Pages:

61-74

DOI:

https://doi.org/10.4028/p-xtYJ66

Citation:

Cite this paper

Online since:

August 2026

Authors:

Khalil Ben Abdelmalek, Reda Boussetta*, Ossama El Abouti, Omar Mommadi, Abdelaaziz El Moussaouy, Carlos Alberto Duque

Keywords:

Cu2NiGeS4, External Quantum Efficiency, Interface Engineering, Nanotechnology, SnS-Back Surface Field, Thin-Film Solar Cell

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

© 2026 Trans Tech Publications Ltd. All Rights Reserved

Share:

Citation:

* - Corresponding Author

References

[1] M. A. Green, K. Emery, Y. Hishikawa, W. Warta, and E. D. Dunlop, "Solar cell efficiency tables (version 40)," Progress in Photovoltaics: Research and Applications, vol. 20, no. 5, pp.606-614, 2012.

DOI: 10.1002/pip.2267

Google Scholar

[2] T. D. Lee and A. Ebong. "A review of thin film solar cell technologies and challenges." Renewable & Sustainable Energy Reviews, 70 (2017): 1286-1297.

DOI: 10.1016/j.rser.2016.12.028

Google Scholar

[3] C. Candelise, M. Winskel and R. Gross. "Implications for CdTe and CIGS technologies production costs of indium and tellurium scarcity." Progress in Photovoltaics: Research and Applications, 20 (2012).

DOI: 10.1002/pip.2216

Google Scholar

[4] M. Vellini, M. Gambini and Valentina Prattella. "Environmental impacts of PV technology throughout the life cycle: Importance of the end-of-life management for Si-panels and CdTe-panels." Energy, 138 (2017): 1099-1111.

DOI: 10.1016/j.energy.2017.07.031

Google Scholar

[5] J. El Hamdaoui, M. El-Yadri, K. Lakaal, M. Kria, M. Courel, M. Ojeda, M., Pérez, L.M., Laroze, D., & Feddi, E., "Ab initio study on electronic and optical properties of Cu2NiGeS4 for photovoltaic applications," Solar Energy, vol. 237, pp.333-339, 2022.

DOI: 10.1016/j.solener.2022.03.052

Google Scholar

[6] X. Zhang, et al., "Growth and optical properties of a new CGG-type laser crystal Nd3+: CNGS," Optical Materials Express, vol. 5, no. 5, pp.977-985, 2015.

DOI: 10.1364/ome.5.000977

Google Scholar

[7] S. Schorr, "The crystal structure of kesterite type compounds: A review," Solar Energy Materials and Solar Cells, vol. 119, pp.119-126, 2013.

Google Scholar

[8] U. Rau and H. W. Werner, "Radiative efficiency of solar cells: From theory to practice," Applied Physics Letters, vol. 86, no. 21, p.213505, 2005.

Google Scholar

[9] W. Wang, M. T. Winkler, O. Gunawan, T. Gokmen, T. K. Todorov, and D. B. Mitzi, "Device Characteristics of CZTSSe Thin-Film Solar Cells with 12.6% Efficiency," Advanced Energy Materials, vol. 4, no. 7, p.1301465, 2014.

DOI: 10.1002/aenm.201301465

Google Scholar

[10] N. K. Reddy, M. Devika, & E. S. R. Gopal, "Review on Tin (II) Sulfide (SnS) Material: Synthesis, Properties, and Applications," Critical Reviews in Solid State and Materials Sciences, vol. 40, no. 6, pp.359-398, 2015.

DOI: 10.1080/10408436.2015.1053601

Google Scholar

[11] P. Sinsermsuksakul, J. Heo, W. Noh, A. S. Hock, and R. G. Gordon, "Atomic Layer Deposition of Tin Monosulfide Thin Films," Advanced Energy Materials, vol. 1, no. 6, pp.1116-1125, 2011.

DOI: 10.1002/aenm.201100330

Google Scholar

[12] M. Burgelman, P. Nollet, and S. Degrave, "Modelling polycrystalline semiconductor solar cells," Thin Solid Films, vol. 361-362, pp.527-532, 2000.

DOI: 10.1016/s0040-6090(99)00825-1

Google Scholar

[13] M. Abdelfatah, A. M. El Sayed, W. Ismail, S. Ulrich, V. Sittinger, and A. El-Shaer, "SCAPS simulation of novel inorganic ZrS2/CuO heterojunction solar cells," Scientific Reports, vol. 13, no. 1, p.4553, 2023.

DOI: 10.1038/s41598-023-31553-4

Google Scholar

[14] A. Isha, A. Kowsar, A. Kuddus, M. K. Hossain, M. H. Ali, M. D. Haque, and M. F. Rahman, "High efficiency Cu2MnSnS4 thin film solar cells with SnS-BSF and CdS ETL layers: A numerical simulation," Heliyon, vol. 9, no. 5, p. e15716, 2023.

DOI: 10.1016/j.heliyon.2023.e15716

Google Scholar

[15] N. El Ouarie, J. El Hamdaoui, G.S. Sahoo, K.G. Rodriguez-Osorio, M. Courel, M. Zazoui, L.M. Pérez, D. Laroze, and E. Feddi, "Modeling of highly efficient CNGS based kesterite solar cell: A DFT study along with SCAPS-1D analysis," Solar Energy, vol. 263, p.111929, 2023.

DOI: 10.1016/j.solener.2023.111929

Google Scholar

[16] M. M. Khatun, A. Hosen, and S. R. A. Ahmed, "Evaluating the performance of efficient Cu2NiSnS4 solar cell—A two stage theoretical attempt and comparison to experiments," Heliyon, vol. 9, no. 10, p. e20603, 2023.

DOI: 10.1016/j.heliyon.2023.e20603

Google Scholar

[17] N. Ahmad, Y. Zhao, F. Ye, J. Zhao, S. Chen, Z. Zheng, P. Fan, C. Yan, Y. Li, Z. Su, X. Zhang, and G. Liang, "Cadmium-Free Kesterite Thin-Film Solar Cells with High Efficiency Approaching 12%," Advanced Science, vol. 10, no. 26, p.2302869, 2023.

DOI: 10.1002/advs.202302869

Google Scholar

[18] A. Srivastava, S. K. Tripathy, T. R. Lenka, P. Hvizdos, P. S. Menon, F. Lin, and A. G. Aberle, "Device Simulation of Ag2SrSnS4 and Ag2SrSnSe4 Based Thin-Film Solar Cells from Scratch," Advanced Theory and Simulations, vol. 5, no. 2, p.2100208, 2022.

DOI: 10.1002/adts.202100208

Google Scholar

[19] Y. Gong, et al., "Elemental de-mixing–induced epitaxial kesterite/CdS interface enabling 13%-efficiency kesterite solar cells," Nature Energy, vol. 7, p.966–976, 2022.

DOI: 10.1038/s41560-022-01132-4

Google Scholar

[20] Y. Gong, A. Jimenez-Arguijo, A. G. Medaille, S. Moser, A. Basak, R. Scaffidi, R. Carron, D. Flandre, B. Vermang, S. Giraldo, H. Xin, A. Perez-Rodriguez, and E. Saucedo, "Li-Doping and Ag-Alloying Interplay Shows the Pathway for Kesterite Solar Cells with Efficiency Over 14%," Advanced Functional Materials, vol. 34, no. 42, p.2404669, 2024.

DOI: 10.1002/adfm.202404669

Google Scholar
