Experimental Analysis and Modeling of Thermal Error for the Spindle of Machining Center

Abstract:

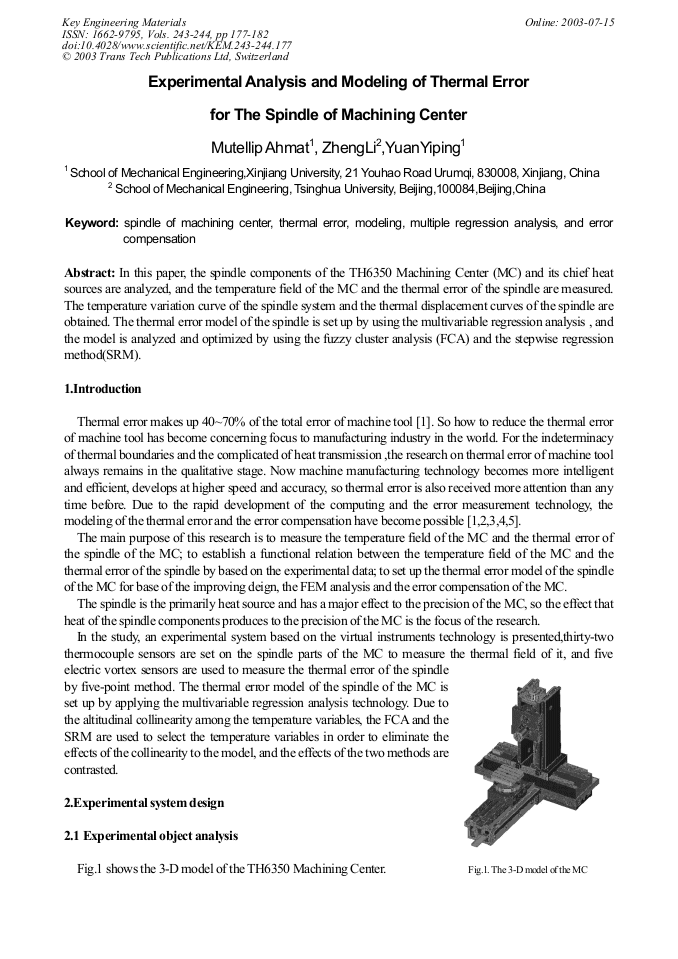

Article Preview

Info:

Periodical:

Key Engineering Materials (Volumes 243-244)

Edited by:

Mamtimin Geni and Masanori Kikuchi

Pages:

177-182

Citation:

M. Ahmat et al., "Experimental Analysis and Modeling of Thermal Error for the Spindle of Machining Center", Key Engineering Materials, Vols. 243-244, pp. 177-182, 2003

Online since:

July 2003

Export:

Price:

$38.00

[1] Ji Yin, Zichen Cheng. The research on thermal error control for heavy-duty machine tools. Journal of Mechanical Science and Technology, Vol. 17, No. 4, 1998, 623-625(in Chinese).

[2] J. Bryan. International status of thermal error research (1990). Annals of the CIRP, Vol. 39, No. 2, 1990, 645-656.

DOI: https://doi.org/10.1016/s0007-8506(07)63001-7

[3] J. S. Chen, J. Yuan, et al. Thermal error modeling for real-time compensation. International Journal of Machine Tools and Manufacture, Vol. 36, 1996, 266-275.

[4] Shuhe Li, et al. The research on thermal error compensation for machining center. Journal of Manufacturing Technology and Machine Tools, 1997, 6, 16-19 (in Chinese).

[5] Jingxia Yuan, Jun Ni. The real-time error compensation technique for CNC machining systems. Mechatronics, Vol. 8, 1998, 359-380.

DOI: https://doi.org/10.1016/s0957-4158(97)00062-7

[6] Kaitai Fang. The applied regression analysis. Beijing: The Science Press, 1988 (in Chinese) Exp. value Model (3) Res. error Model (4) Res. error Error at Z-direction zδ 152˄�m˅ 152˄�m˅ 0 151. 9989˄�m˅ 0. 00107 Error at Y-direction yδ -13˄�m˅ -13˄�m˅ 0 -12. 8903˄�m˅ -0. 10965 Error at X-direction xδ 4˄�m˅ 4˄�m˅ 0 4. 36237˄�m˅ -0. 36237 Vertical tilt angle YZα 0. 00003 0. 00003 0 3. 120E-05 -1. 000E-06 Horizon tilt angle XZα -0. 00003 -0. 00003 0 -0. 00003 1E-07.
