Effect of Surface Morphology and Crystal Structure on Bioactivity of Titania Films Formed on Titanium Metal via Anodic Oxidation in Sulfuric Acid Solution

Abstract:

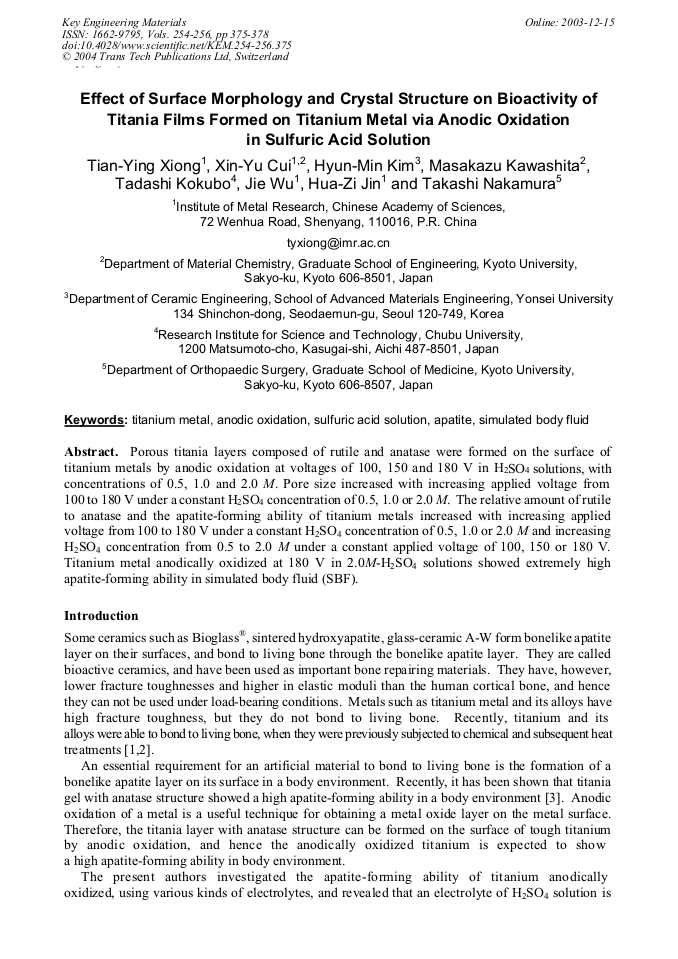

Article Preview

Info:

Periodical:

Key Engineering Materials (Volumes 254-256)

Main Theme:

Edited by:

Mário A. Barbosa, Fernando J. Monteiro, Rui Correia, Betty Leon

Pages:

375-378

DOI:

10.4028/www.scientific.net/KEM.254-256.375

Citation:

T. Y. Xiong et al., "Effect of Surface Morphology and Crystal Structure on Bioactivity of Titania Films Formed on Titanium Metal via Anodic Oxidation in Sulfuric Acid Solution", Key Engineering Materials, Vols. 254-256, pp. 375-378, 2004

Online since:

December 2003

Export:

Price:

$35.00

[1] H. -M. Kim, F. Miyaji, T. Kokubo and T. Nakamura (1996) J. Biomed. Mater. Res., 32, 409-417.

[2] W. -Q. Yan, T. Nakamura, M. Kobayashi, H. -M. Kim, F. Miyaji and T. Kokubo (1997) J. Biomed. Mater. Res., 37, 267-275.

[3] M. Kawashita, X. -Y. Cui, H. -M. Kim, T. Kokubo and T. Nakamura (2003) Bioceramics, 16, in press.

[4] M. Uchida, H. -M. Kim, T. Kokubo, S. Fujibayashi and T. Nakamura (2003) J. Biomed. Mater. Res., 64A, 164-170.

[5] T. Kokubo, H. Kushitani, S. Sakka, T. Kitsugi and T. Yamamuro (1990).

[10] µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm.

[10] µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm.

[10] µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm.

[10] µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm.

[10] µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm.

[10] µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm.

[10] µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm.

[10] µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm.

[10] µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm10 µm Fig. 4 FE-SEM photographs of the surfaces of the specimens anodically oxidized at different applied voltages in H2SO4 solutions with different concentrations and subsequently soaked in SBF for 3 days.

In order to see related information, you need to Login.
