Paper Titles

Green Forming with Nanoparticles
p.2319

Shaping and Sintering of Ceramic Nano-Powders
p.2323

Investigation of Structural Hierarchy of Nanoceramics Compacted by Dry Pressing under Powerful Ultrasound Action
p.2327

Synthesis of Nanocapsules with Au Particles Trapped Inside Carbon and Silica Nanoporous Shells
p.2331

Preparation of Nanosized Barium Zirconate Powder by Precipitation in Aqueous Solution
p.2335

Densification of Nanostructured YSZ Green Compacts
p.2339

Fabrication and Creep Behavior of SiCN(O) Nanocomposites
p.2343

High-Toughness Tetragonal Zirconia and Zirconia/Alumina Nano-Ceramics
p.2347

Nanocrystalline Cubic Zirconia Obtained from Zirconia and Dolomite Activated by a High-Energy Ball Milling Process
p.2351

HomeKey Engineering MaterialsKey Engineering Materials Vols. 264-268Preparation of Nanosized Barium Zirconate Powder...

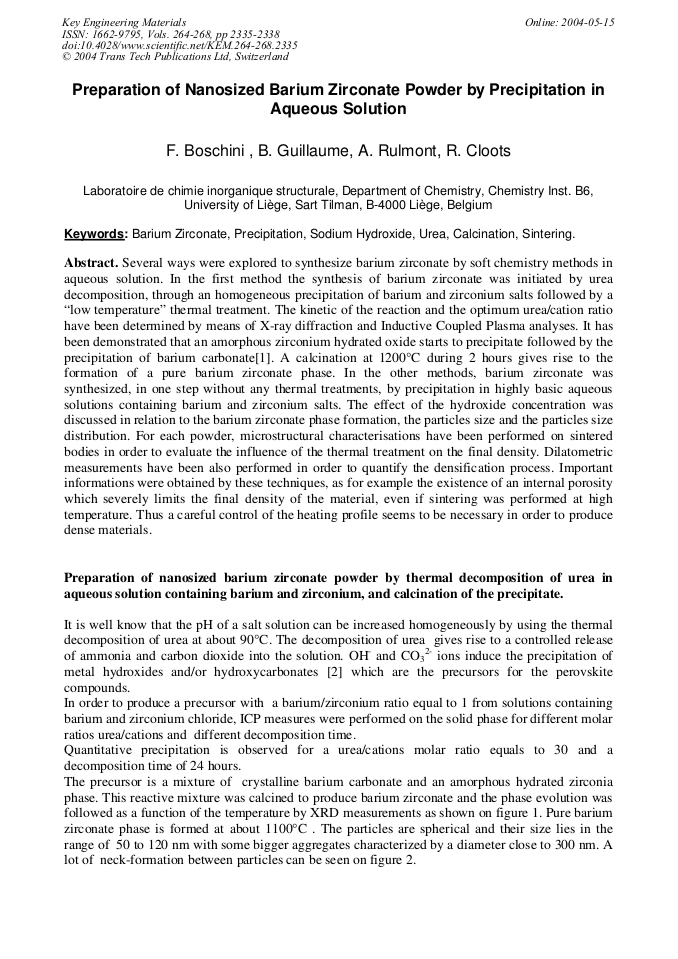

Preparation of Nanosized Barium Zirconate Powder by Precipitation in Aqueous Solution

Article Preview

Abstract:

You might also be interested in these eBooks

Euro Ceramics VIII

Info:

Periodical:

Key Engineering Materials (Volumes 264-268)

Pages:

2335-2338

DOI:

https://doi.org/10.4028/www.scientific.net/KEM.264-268.2335

Citation:

Cite this paper

Online since:

May 2004

Authors:

F. Boschini, B. Guillaume, André Rulmont, Rudi Cloots

Keywords:

Barium Zirconate, Calcination, Precipitation, Sintering, Sodium Hydroxide (NaOH), Urea

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

© 2004 Trans Tech Publications Ltd. All Rights Reserved

Share:

Citation:

[1] T. Gangadevi, M. Subba Rao and T.R. Narayanan Kutty: J. Thermal. Anal. 19 312-332 (1980).

[2] B.C. Cornilsen and J.S. Reed, Am. Ceram. Soc. Bull., 58, 1199-2000 (1979). Temperature (°C) 200 400 600 800 1000 1200 TG (%).

[86] [88] [90] [92] [94] [96] [98] 100 powder A [NaOH]= 15 M powder B [NaOH ]= 12. 5 M powder C [NaOH] = 10 M powder D [NaOH] = 7. 5 M cm 1000 2000 3000 4000 Powder A [NaOH] =15M Powder C [NaOH] =10 M Figure 6. TG curves of powders obtained at different sodium hydroxide concentrations. Figure 7. FTIR spectra of powders obtained at sodium hydroxide concentration of (A) 15M and (B) 10M Figure 8. surface morphology of a pellet sintered at 1650°C for 12 hours. Magnification.

DOI: 10.1016/j.powtec.2015.10.021
