The Development of a Ka Band Input Filter Assembly for a Satellite Transponder

Abstract:

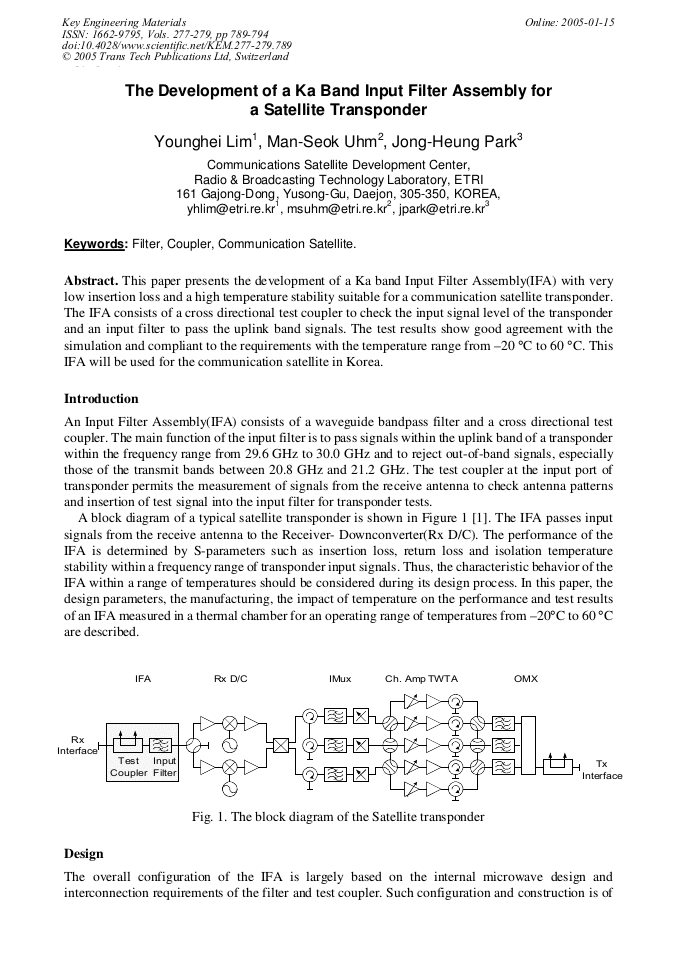

This paper presents the development of a Ka band Input Filter Assembly(IFA) with very low insertion loss and a high temperature stability suitable for a communication satellite transponder. The IFA consists of a cross directional test coupler to check the input signal level of the transponder and an input filter to pass the uplink band signals. The test results show good agreement with the simulation and compliant to the requirements with the temperature range from –20 °C to 60 °C. This IFA will be used for the communication satellite in Korea.

• Periodical: Key Engineering Materials (Volumes 277-279)
• Pages: 789-794
• DOI: https://doi.org/10.4028/www.scientific.net/KEM.277-279.789
• Online since: January 2005
• Authors: Young Hei Lim, Man Seok Uhm, Jong Heung Park
• Keywords: Communication Satellite, Coupler, Filter

References

[1] S. P. Lee, T. J. Chung, J. H. Park, I. B. Yom, J. W. Eun, W. S. Choi, J. M. Kim, Satellite Communication Payload System Development Technology, Proc. of APSCC 2002 Conference, 6~8. Nov. 2002., p.1065~1075.

[2] D. Seguin, Improved Waveguide Cross Guide Coupler, Microwave Journal, pp.118-126, Nov. (1992).

[3] J. Ball, T. Sulda, Small aperture crossed waveguide broad-wall directional couplers, IEE Proc. AP., Vol. 147., No 4., pp.249-254, Aug. (2000).

DOI: 10.1049/ip-map:20000570

[4] G. Matthaei, L. Young, E. Jones, Microwave filters, Impedance-Matching Networks, and Coupling Structures, Artech House Books.

[5] M. Marcuvitz, Waveguide Handbook, Office of Scientific Reaserch and Development National Defense Research Committee.

[6] Y, H. Lim, M. S. Uhm, I. B. Yom, S.P. Lee , Development of Ku band Input Filter Assembly for Satellite Transponder, Proc. of APMC 2002 Conference, pp.512-515, Nov. (2002).
