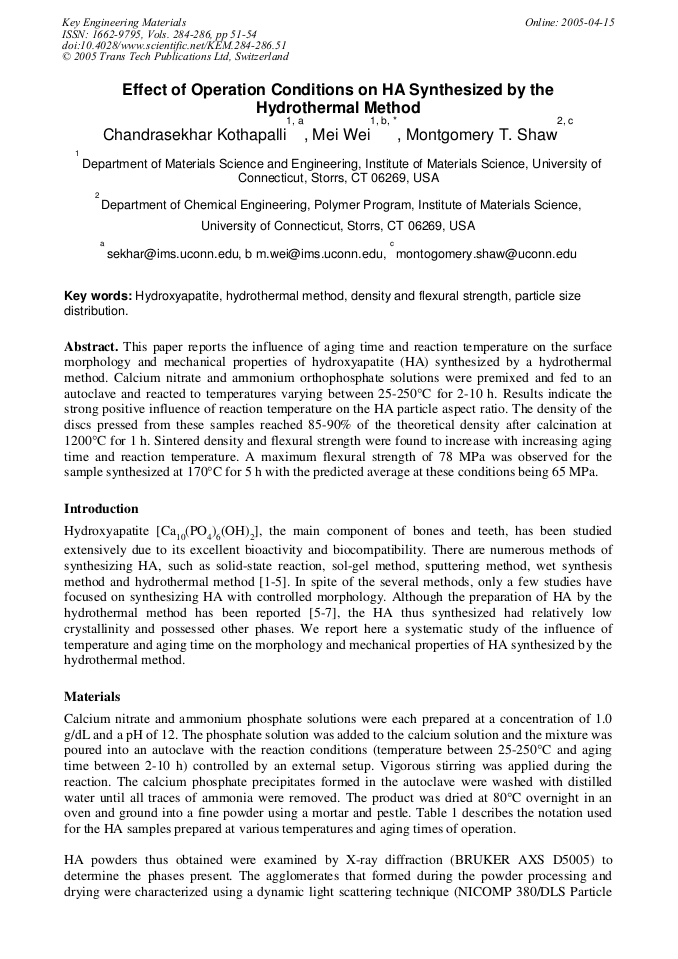

Effect of Operation Conditions on HA Synthesized by the Hydrothermal Method

Abstract:

This paper reports the influence of aging time and reaction temperature on the surface morphology and mechanical properties of hydroxyapatite (HA) synthesized by a hydrothermal method. Calcium nitrate and ammonium orthophosphate solutions were premixed and fed to an autoclave and reacted to temperatures varying between 25-250°C for 2-10 h. Results indicate the strong positive influence of reaction temperature on the HA particle aspect ratio. The density of the discs pressed from these samples reached 85-90% of the theoretical density after calcination at 1200°C for 1 h. Sintered density and flexural strength were found to increase with increasing aging time and reaction temperature. A maximum flexural strength of 78 MPa was observed for the sample synthesized at 170°C for 5 h with the predicted average at these conditions being 65 MPa.

• Periodical: Key Engineering Materials (Volumes 284-286)
• Pages: 51-54
• DOI: https://doi.org/10.4028/www.scientific.net/KEM.284-286.51
• Online since: April 2005
• Authors: Chandrasekhar Kothapalli, Mei Wei, Montgomery T. Shaw
• Keywords: Density Strength, Flexural Strength, Hydrothermal Method, Hydroxyapatite (HAP), Particle Size Distribution (PSD)

References

[1] Asaoka N, Suda H, Yoshimura M. Chem Soc Jpn. Vol 1 (1995), pp.25-29.

[2] Ota Y, Iwashita T, Kasuga T. J Am Ceram Soc., Vol 81, (1998), pp.1665-68.

[3] Kamiya K, Yoko T, Tanaka K. J Mater Sci., Vol 24, (1989), pp.827-32.

[4] Wei M, Ruys AJ, Milthorpe BK, Sorrell CC. J Biomed Mater Res., Vol 45, (1999), pp.11-19.

[5] Suzuki S, Ohgaki M, Ichiyanagi M. J Mater Sci Lett. Vol 17, (1998), pp.381-83.

[6] Kandori K, Horigami N, Yasukawa A. J. Am. Ceram. Soc. Vol 80, (1997), p.1157.

[7] Yasukara A, Takase H, Kandori K. Polyhedron Vol 13, (1994), p.3071.

[8] Frenkel J. J. Phys. USSR. Vol 9, (1945), p.385.

[9] Liu J, Ye X, Wang H, Zhu M, Wang B, Yan H. Ceram Inter Vol 29, (2003), pp.629-33.

[10] Ruys AJ, Wei M, Sorrell CC, Dickson MR, Brandwood A, Milthrope BK. Biomaterials. Vol 16, (1995), p.409.

DOI: 10.1016/0142-9612(95)98859-c
