Mechanical Behavior of PLA/HA Composite in Simulated Physiological Environment

Siuming Wong; Jing Shen Wu; Yang Leng

doi:10.4028/www.scientific.net/KEM.288-289.231

Paper Titles

Preparation of Bioactive Nanophase Titania Ceramics by Alkali-Heat Treatment
p.215

Electrochemical Preparation of Ordered Nano HAp Coatings on Ti Substrate and In Vitro Study on Its Bioactivity
p.219

Cytocompatibility Testing of Hydroxyapatite/Collagen Composite Cross-Linked with Glutaraldehyde
p.223

Molecular Modification of Hydroxyapatite to Introduce Interfacial Bonding with Poly (Lactic Acid) in Biodegradable Composites
p.227

Mechanical Behavior of PLA/HA Composite in Simulated Physiological Environment
p.231

The Long Term Study of HA/TCP Biphasic Ceramics' Osteoinduction
p.237

The Influences of β-Glucan Associated with BMP-7 on MC3T3-E1 Proliferation and Osteogenic Differentiation
p.241

Successful Osteoinduction by Cell-Macroporous Biphasic HA-TCP Ceramic Matrix
p.245

A Simple but Effective Demineralizing Method for Osteogenic Allograft Preparation
p.249

HomeKey Engineering MaterialsKey Engineering Materials Vols. 288-289Mechanical Behavior of PLA/HA Composite in...

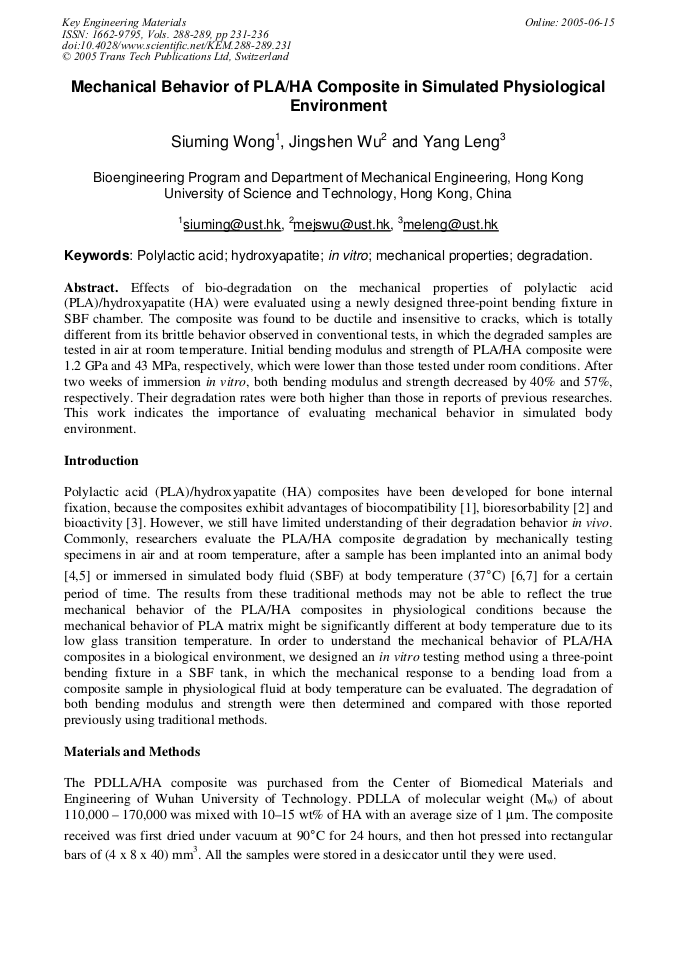

Mechanical Behavior of PLA/HA Composite in Simulated Physiological Environment

Abstract:

Effects of bio-degradation on the mechanical properties of polylactic acid (PLA)/hydroxyapatite (HA) were evaluated using a newly designed three-point bending fixture in SBF chamber. The composite was found to be ductile and insensitive to cracks, which is totally different from its brittle behavior observed in conventional tests, in which the degraded samples are tested in air at room temperature. Initial bending modulus and strength of PLA/HA composite were 1.2 GPa and 43 MPa, respectively, which were lower than those tested under room conditions. After two weeks of immersion in vitro, both bending modulus and strength decreased by 40% and 57%, respectively. Their degradation rates were both higher than those in reports of previous researches. This work indicates the importance of evaluating mechanical behavior in simulated body environment.

You might also be interested in these eBooks

View Preview

Info:

Periodical:

Key Engineering Materials (Volumes 288-289)

Pages:

231-236

DOI:

https://doi.org/10.4028/www.scientific.net/KEM.288-289.231

Citation:

Cite this paper

Online since:

June 2005

Authors:

Siuming Wong, Jing Shen Wu, Yang Leng

Keywords:

Degradation, Hydroxyapatite (HAP), In Vitro, Mechanical Property, Poly(lactic acid) (PLA)

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

References

[1] S. Higashi, T. Yamamuro, T. Nakamura et al.: Biomaterials Vol. 7 (1986), p.183.

Google Scholar

[2] A.R. Boccaccini, I. Notingher, V. Maquet et al.: J. Mater. Sci.: Mater. Med. Vol. 14 (2003), p.443.

Google Scholar

[3] H.H. Lu, S.F. El-Amin, K.D. Scott et al.: J. Biomed. Mater. Res. Vol. 64A (2003). p.465.

Google Scholar

[4] T. Furukawa, Y. Matsusue, T. Yasunaga et al.: J. Biomed. Mater. Res. Vol. 50 (2000), p.410.

Google Scholar

[5] T. Yasunaga, Y. Matsusue, T. Furukawa et al.: J. Biomed. Mater. Res. Vol. 47 (1999), p.412.

Google Scholar

[6] X.D. Guo, Q.X. Zheng, J.Y. Du et al.: Chi. J. Biomed. Eng. Vol. 20 (2001), p.23.

Google Scholar

[7] D.P. Quan, Z.J. Lu, S.P. Li et al.: Chi. J. Biomed. Eng. Vol. 20 (2001), p.485.

Google Scholar

[8] H.M. Kim, T. Miyazaki, T. Kokubo et al.: Key Eng. Mater. Vol. 192-195 (2001), p.47. (a) (b) (c) 9. T. Kasuga, Y. Ota, M. Nogami et al.: Biomaterials Vol. 22 (2001), p.19.

Google Scholar

[10] D.P. Quan, K.R. Liao, Z.J. Lu et al.: Fu He Cai Liao Xue Bao Vol. 17 (2000), p.114.

Google Scholar
