Effect of Cutting Edge Truncation on Ground Surface Morphology of Hard and Brittle Materials for Optical Devices

Abstract:

For the purpose of investigating the effect of cutting edge truncation on ground surface morphology, several kinds of hard and brittle materials used for optical devices, borosilicate glass, glass quartz, crystal quartz and sapphire, are plunge ground with a SD600 metal-bonded grinding wheel, the cutting edges of which are truncated so as to be aligned with the height level of the grinding wheel working surface, after electrocontact discharge truing and dressing. It is found that an improvement of roughness can be obtained for every material investigated, although the degree of roughness improvement depends on the kind of material. Ductile-mode grinding is most likely to be realized in the case of crystal quartz.

You might also be interested in these eBooks

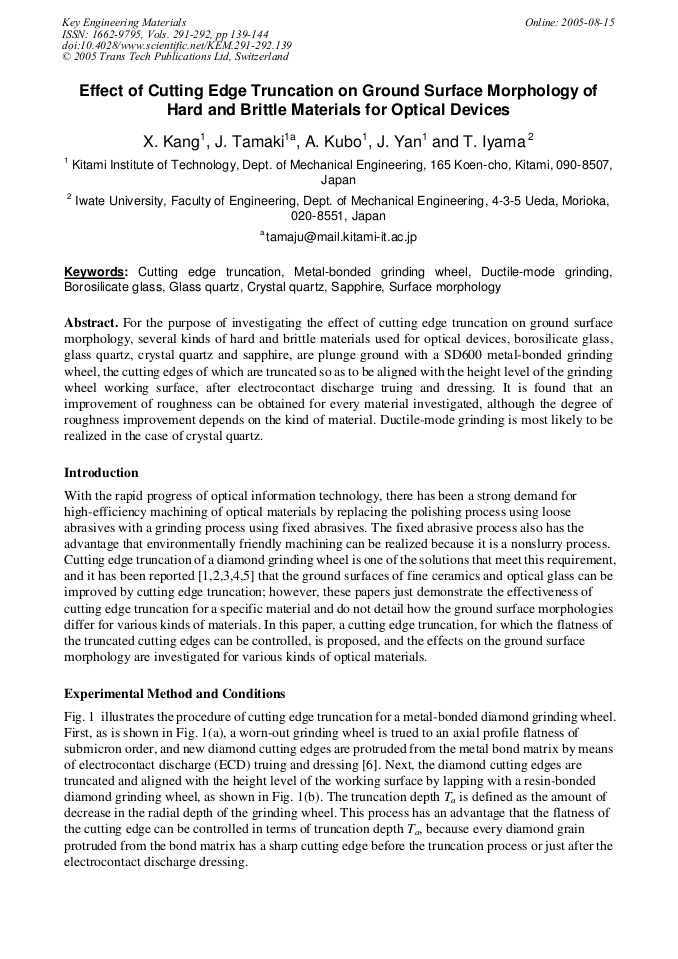

View Preview

Info:

Periodical:

Key Engineering Materials (Volumes 291-292)

Pages:

139-144

DOI:

https://doi.org/10.4028/www.scientific.net/KEM.291-292.139

Citation:

Cite this paper

Online since:

August 2005

Authors:

X. Kang, Junichi Tamaki, Akihiko Kubo, Ji Wang Yan, Toshirou Iyama

Keywords:

Borosilicate Glass, Crystal Quartz, Cutting Edge Truncation, Ductile Mode Grinding, Glass Quartz, Metal-Bonded Grinding Wheel, Sapphire, Surface Morphology

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

References

[1] P. A. Mckeown, K. Carlisle, P. Shore and R. F. J. Read: Journal of the Japan Society for Precision Engineering, Vol. 56 (1990), No. 5, pp.806-813.

Google Scholar

[2] T. Tamura, H. Yamakura and M. Masuda: Journal of the Japan Society for Precision Engineering, Vol. 59 (1993), No. 12, p.1979-(1984).

Google Scholar

[3] H. Yamakura, T. Tamura and M. Masuda: Journal of the Japan Society for Precision Engineering, Vol. 61 (1995), No. 1, pp.147-151.

Google Scholar

[4] H. Suzuki, M. Abe and Y. Namba: Journal of the Japan Society for Precision Engineering, Vol. 63 (1997), No. 4, pp.535-539.

Google Scholar

[5] H. Yasui, Y. Arino and K. Masunaga: Journal of the Japan Society for Precision Engineering, Vol. 63 (1997), No. 9, pp.1270-1274. (HP Sic and Si3N4).

Google Scholar

[6] J. Tamaki, K. Kondoh and T. Iyama: Proceedings of the 1st euspen International Conference, P. Mckeown/Bremen, Vol. 1 (1999), pp.234-237.

Google Scholar

[7] J. Tamaki, A. Kubo, J. Xie, J. Yan and T. Iyama: Proceedings of the 3rd euspen International Conference, F. L. M. Delbressine/Eindhoven, Vol. 1 (2002), pp.197-200.

Google Scholar
