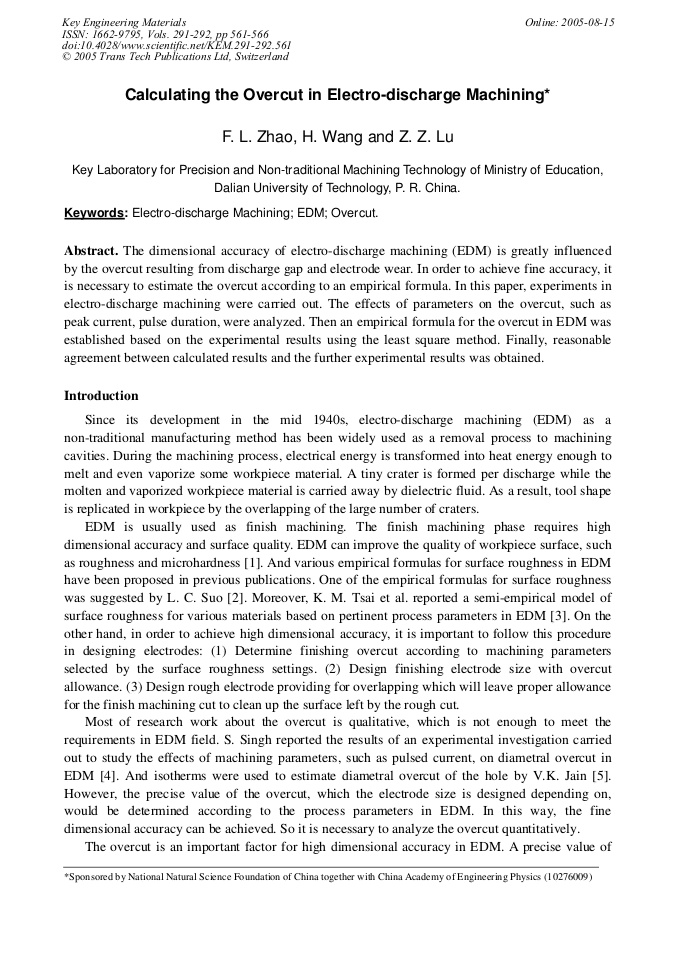

Calculating the Overcut in Electro-Discharge Machining

Abstract:

The dimensional accuracy of electro-discharge machining (EDM) is greatly influenced by the overcut resulting from discharge gap and electrode wear. In order to achieve fine accuracy, it is necessary to estimate the overcut according to an empirical formula. In this paper, experiments in electro-discharge machining were carried out. The effects of parameters on the overcut, such as peak current, pulse duration, were analyzed. Then an empirical formula for the overcut in EDM was established based on the experimental results using the least square method. Finally, reasonable agreement between calculated results and the further experimental results was obtained.

• Periodical: Key Engineering Materials (Volumes 291-292)
• Pages: 561-566
• DOI: https://doi.org/10.4028/www.scientific.net/KEM.291-292.561
• Online since: August 2005
• Authors: Fu Ling Zhao, H. Wang, Z.Z. Lu
• Keywords: Electro Discharge Machining (EDM), Overcut

References

[1] J. Simao, H. G. Lee and D. K. Aspinwall: International Journal of Machine Tools & Manufacture, Vol. 43 (2003), pp.121-128.

DOI: 10.1016/s0890-6955(02)00187-6

[2] L. C. Suo, Q. G. Meng and W. D. Liu: Manufacturing Technology & Machine Tool, Sep (1999), pp.31-33.

[3] K. M. Tsai, P. J. Wang: International Journal of Machine Tools & Manufacture, Vol. 41 (2001), pp.1455-1477.

[4] S. Singh, S. Maheshwari and P. C. Pandey: Journal of Materials Processing Technology, Vol. 149 (2004), pp.272-277.

[5] V. K. Jain, P. M. Dixit and P. M. Pandey: International Journal of Machine Tools & Manufacture, Vol. 39 (1999), pp.165-186.

[6] Z. Z. Lu, F. L. Zhao and L. W. Yang: China Mechanical Engineering, Vol. 15 (2004), pp.549-552.
