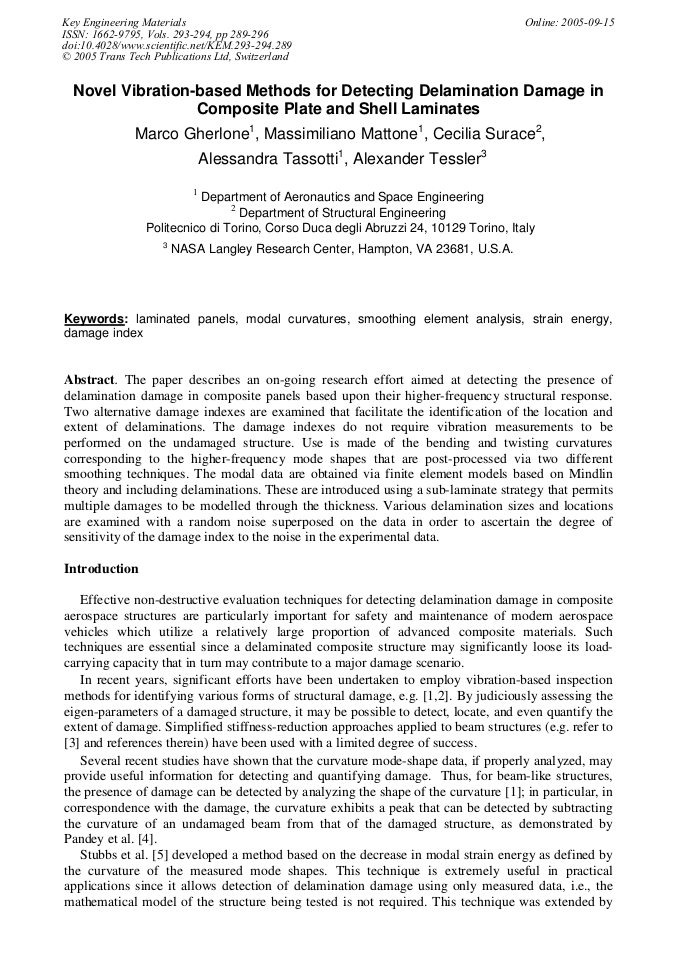

Novel Vibration-Based Methods for Detecting Delamination Damage in Composite Plate and Shell Laminates

Abstract:

The paper describes an on-going research effort aimed at detecting the presence of delamination damage in composite panels based upon their higher-frequency structural response. Two alternative damage indexes are examined that facilitate the identification of the location and extent of delaminations. The damage indexes do not require vibration measurements to be performed on the undamaged structure. Use is made of the bending and twisting curvatures corresponding to the higher-frequency mode shapes that are post-processed via two different smoothing techniques. The modal data are obtained via finite element models based on Mindlin theory and including delaminations. These are introduced using a sub-laminate strategy that permits multiple damages to be modelled through the thickness. Various delamination sizes and locations are examined with a random noise superposed on the data in order to ascertain the degree of sensitivity of the damage index to the noise in the experimental data.

• Periodical: Key Engineering Materials (Volumes 293-294)
• Pages: 289-296
• DOI: https://doi.org/10.4028/www.scientific.net/KEM.293-294.289
• Online since: September 2005
• Authors: Marco Gherlone, Massimiliano Mattone, Cecilia Surace, Alessandra Tassotti, Alexander Tessler
• Keywords: Damage Index, Laminated Panel, Modal Curvature, Smoothing Element Analysis, Strain Energy

References

[1] S.W. Doebling, C.R. Farrar, M.B. Prime and D. W. Shevitz: Report No. LA-13070-MS, Los Alamos National Laboratory, Los Alamos, NM (1996).

DOI: 10.2172/425290

[2] R. Ruotolo and C. Surace: Recent Res. Devel., Sound & Vibration, Vol. 1 (2002) p.449.

[3] R. Ruotolo and C. Surace: J. Sound & Vibration, Vol. 272 (2004) p.301.

[4] A.K. Pandey, M. Biswas and M. Samman : J. Sound & Vibration, Vol. 154 (1994) p.321.

[5] N. Stubbs, J. -T. Kim, and K. Topole: Proceedings of the ASCE 10th Structures Congress (1992) p.543.

[6] P. Cornwell, S.W. Doebling and C. R. Farrar: J. Sound & Vibration, Vol. 224 (1999) p.359.

[7] C.P. Ratcliffe: J. Vibration and Acoustics 122 (2000) p.324.

[8] M. Battipede R. Ruotolo and C. Surace: Key Engineering Materials Vol. 204-205 (2001), p.27.

DOI: 10.4028/www.scientific.net/kem.204-205.27

[9] M. K. Yoon, D. Heider, J. W. Gillespie, Jr., C.P. Ratcliffe and R.M. Crane: 46th International SAMPE Symposium/Exhibition, Long Beach Convention Center, Long Beach, CA, Vol. 46 (2001) p.752.

[10] M.K. Yoon, D. Heider, J.W. Gillespie Jr., C.P. Ratcliffe and R.M. Crane: J. Sound & Vibration, Vol. 279 (2005) p.119.

[11] A. Tessler, C. Freese, R. Anastasi, S. Serabian, D. Oplinger, and A. Kats: Proceedings of SPIE: Photomechanics and Speckle Metrology, Vol. 814 (1987) p.314.

DOI: 10.1117/12.941714

[12] A. Tessler, H. R. Riggs, C. E. Freese, and G. M. Cook: Computer Methods in Applied Mech. Engrg., Vol. 155 (1998) p.15.

[13] Mindlin R. D.: ASME Journal of Applied Mechanics, Vol. 18 (1951) p.31.

[14] Reissner E.: ASME Journal of Applied Mechanics, Vol. 12 (1945) p.69.

[15] Ju F., Lee H. P. Lee K. H.: Composite Engineering Vol. 5 (1995) p.195.

[16] J.E. Ashton and J. M Whitney: Theory of laminated plates (Technomic Publication, Stanford, Conn. USA, 1970).
